Descriere

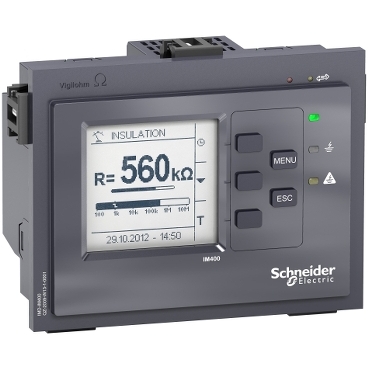

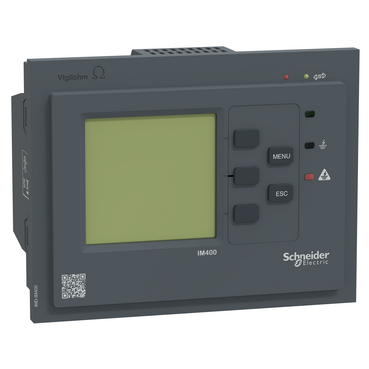

insulation monitoring device Vigilohm IM400, 100 to 440VAC supply, Modbus, for high resistance network
Documente
Fisa tehnica
Instructiuni
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Line capacity | 500 µF |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | 100 V |
| Rated voltage | 1000 V |
| Response value impedance 1 | 1 kOhm |
| Response value impedance 2 | 0.1 kOhm |
| Rated control supply voltage DC | 100 V |
| Voltage type for actuating | AC |
| Measurements | |
| Width | 159 mm |
| Depth | 90 mm |
| Height | 123 mm |
| Options | |
| Indication of insulation value | Yes |
| Error registration possible | Yes |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 2 |
| Number of contacts as normally closed contact | 0 |
| Other | |
| Rated frequency | 45 Hz |
| Model/type | |
| Function | For mixed system |
| With detachable clamps | Yes |
| Package 1 | |
| volume | 5194 cm3 |
| weight | 956 g |
| length | 21,2 cm |
| width | 17,5 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606480573347 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 4,53 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 4 |
| qmin | 4 |
| um | CT |
| gtin | 23606480573341 |
| Package 3 | |
| volume | 360000 cm3 |
| weight | 43,5 kg |
| length | 80 cm |
| width | 60 cm |
| qmax | 32 |
| qmin | 32 |
| um | PF |
