Descriere

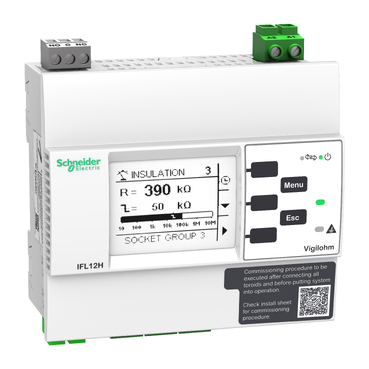

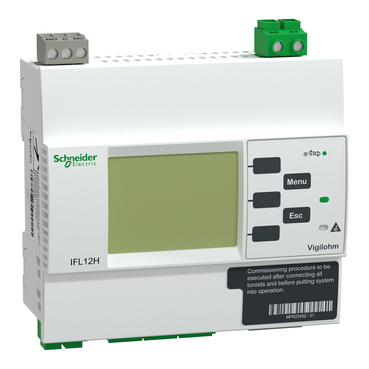

VIGILOHM 12 Canale de localizare a erorii cu Modbus - 110-230V c.a. - 125/250V c.c.
Documente
Specificatii
| Electrical | |
| Line capacity | - |
| Rated control supply voltage AC 50 Hz | 110 V |
| Rated control supply voltage AC 60 Hz | 110 V |
| Rated voltage | 0 V |
| Response value impedance 1 | 50 kOhm |
| Response value impedance 2 | 0 kOhm |
| Voltage type for actuating | AC |
| Rated control supply voltage DC | 125 V |
| Measurements | |
| Width | 108 mm |
| Depth | 59 mm |
| Height | 110 mm |
| Options | |
| Indication of insulation value | Yes |
| Error registration possible | Yes |
| Connection | |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Other | |
| Rated frequency | 45 Hz |
| Model/type | |
| Function | For mixed system |
| With detachable clamps | Yes |
| Package 1 | |
| volume | 2383,29 cm3 |
| weight | 550 g |
| length | 13,5 cm |
| width | 18,2 cm |
| qmax | 1 |
| qmin | 1 |
| um | C62 |
| gtin | 3606489504854 |
| Package 2 | |
| volume | 36000 cm3 |
| weight | 5,14 kg |
| length | 40 cm |
| width | 30 cm |
| qmax | 8 |
| qmin | 8 |
| um | CT |
| gtin | 23606489504858 |
