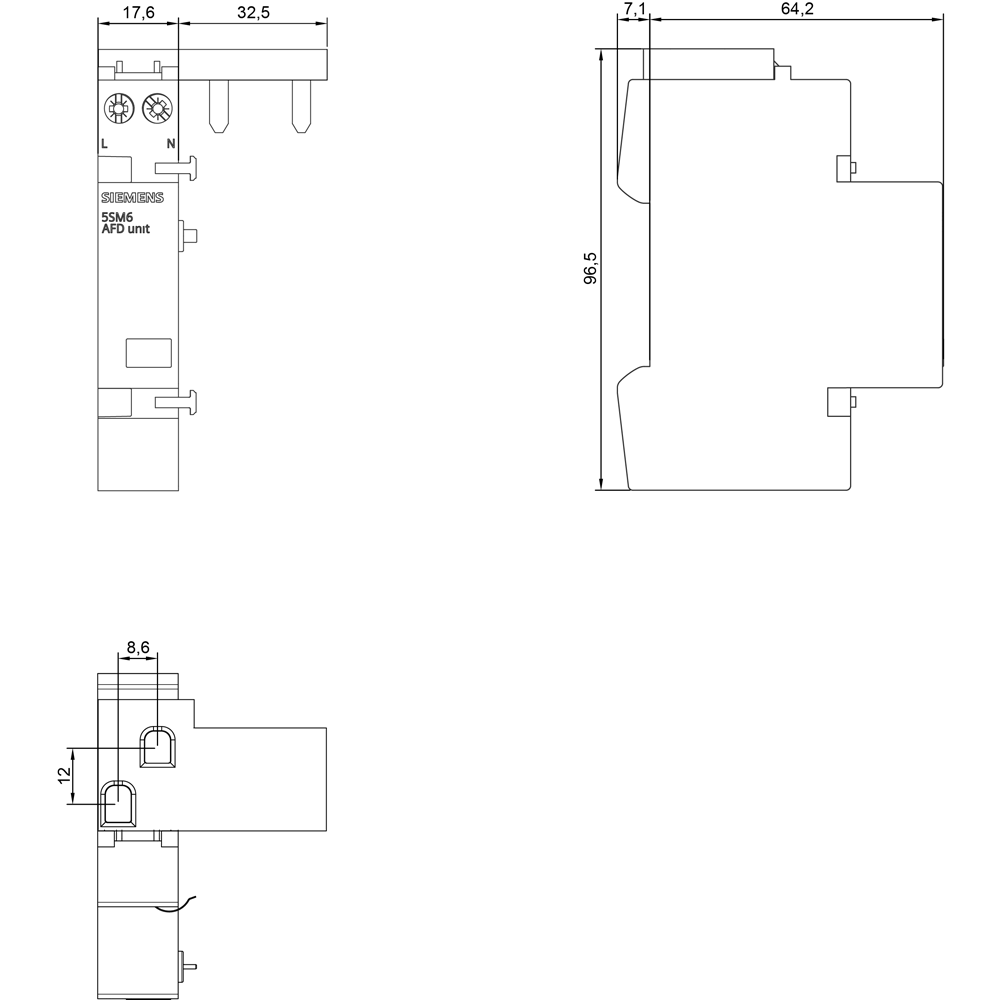

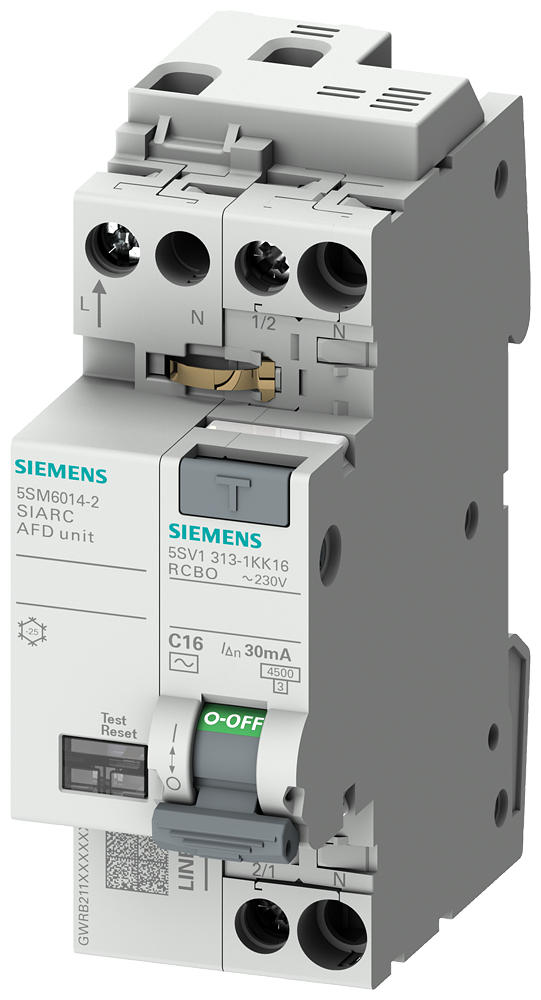

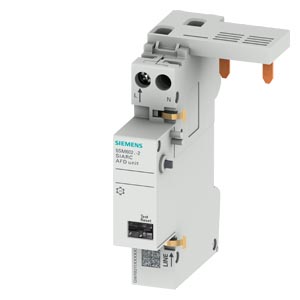

Arc fault detection device block AFDD, 1-16 A 230 V for CB and RCBO 1+N 2MW Arc fault detection unit SENTRON 5SM6 for reliable and comprehensive protection for persons, systems and assets from arcing faults. Arc fault detection devices detect hazardous arcs early and switch off safely, before a fire can occur. With their innovative technology, they reliably cover the previous gap in protection left by conventional devices. The design as a block enables the combination with many miniature circuit breakers or RCBOs and thus reduces stocking. The AFD units are available in versions up to 16 A and up to 40 A for 1-pole and 2-pole devices for mounting. The AFD units can only be operated together with an MCB or RCBO. Optimized technology for your safety - only from Siemens.
Documente
Specificatii
| Electrical | |
| Overvoltage category | 3 |
| Voltage type | AC |
| Control voltage type auxiliary equipment | AC |
| Rated short-circuit breaking capacity according to EN 60898 | - |
| Rated short-circuit breaking capacity according to IEC 60947-2 | - |
| Rated switch current auxiliary device | - |
| Number of poles | 2 |
| Rated voltage auxiliary device | - |
| Release characteristic | - |
| Rated voltage | 230 |
| Rated current | 16 |
| Current limiting class | - |
| Measurements | |
| Construction size according to DIN 43880 | - |
| Built-in depth | 70 |
| Width in number of modular spacings | 1 |
| Other | |
| Pollution degree | 2 |
| Frequency | 50 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Model/type | |
| Additional equipment attached at delivery | - |
| Options | |
| Concurrently switching neutral conductor | - |
| Package 1 | |
| weight | 0,104 |
| length | 0,1 |
| width | 0,08 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869525792 |
| Dimensions of product | |
| Weight | 0,104 |
