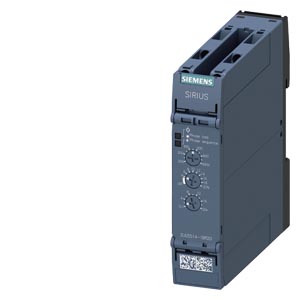

Analog adjustment monitoring relay phase failure, phase sequence, asymmetry and under-voltage
Cod produs: 3UG5514-1BR20
Descriere

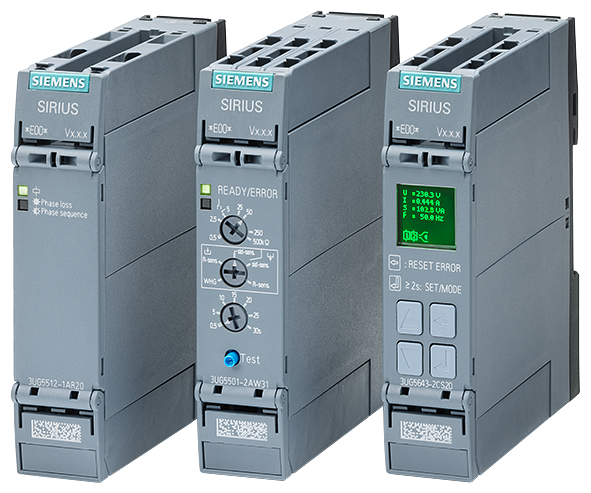

SIRIUS 3UG5
The SIRIUS 3UG5 is an analog adjustment monitoring relay designed for phase failure, phase sequence, asymmetry, and under-voltage monitoring.
Technical details:
- Monitoring: Phase failure, phase sequence, asymmetry, under-voltage
- Voltage: 3x 160-690 V AC
- Frequency: 15-70 Hz
- Contacts: 2 changeover contacts
- Terminal: Screw terminal
- International certificates for worldwide use
- Slim design for less space in control cabinet

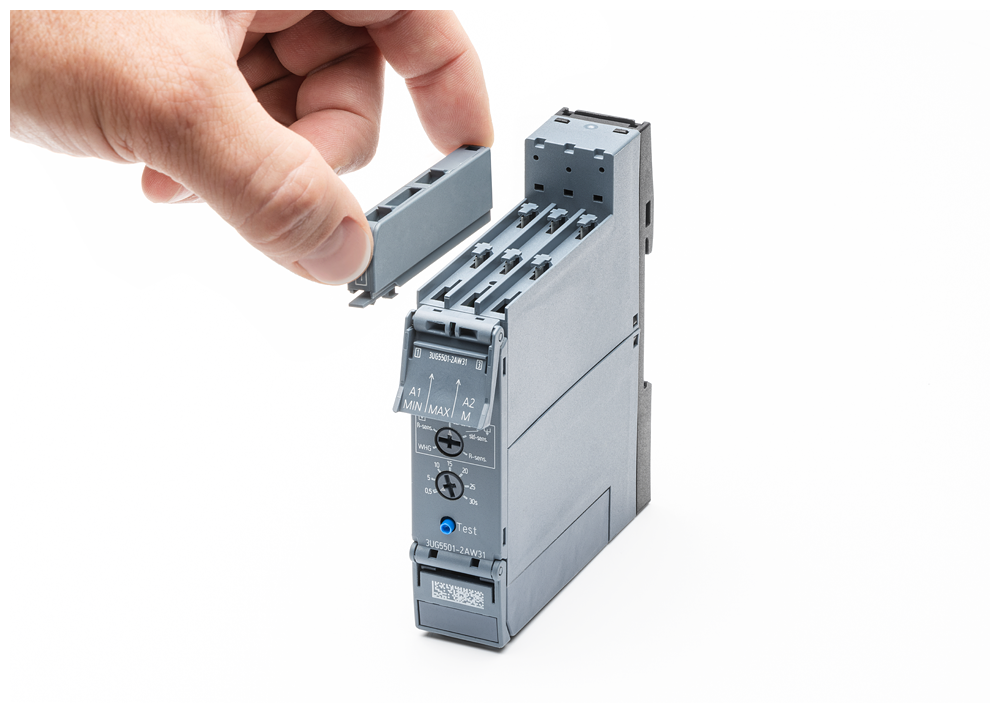

- All versions with removable terminals
- Available with spring-type terminals for fast, maintenance-free connection
- Comprehensive range of accessories standardized for all relays
- Replaces the 3UG4 series
Customer benefits:

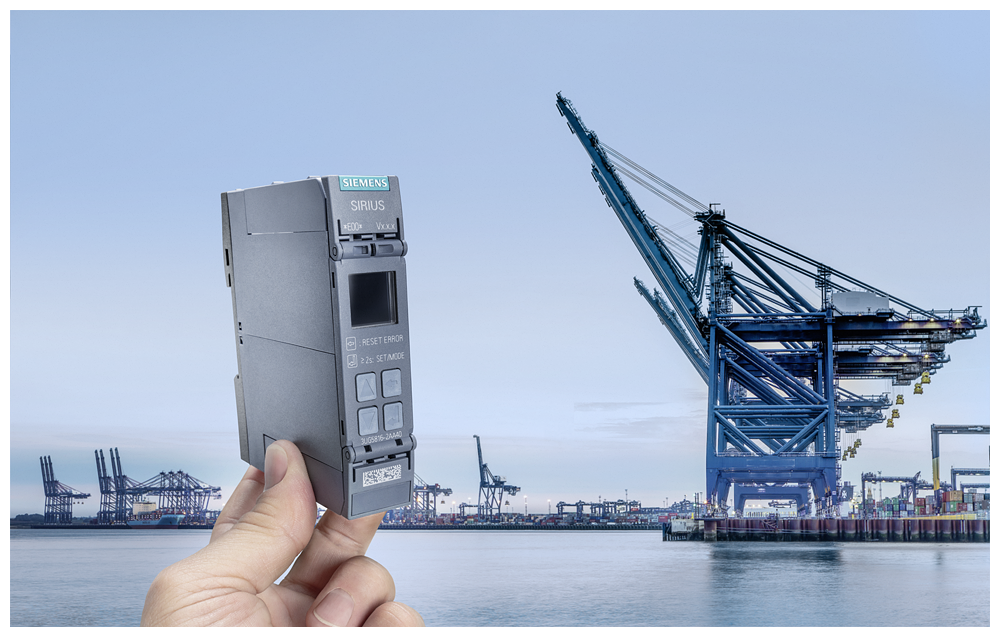

- Suitable for mobile systems such as A/C compressors, refrigerated containers, and cranes
- Versions with a wide voltage range can be used in any networks worldwide
- Vibration-proof connection options increase reliability
Disclaimer: Generated by AI.
Documente
Specificatii

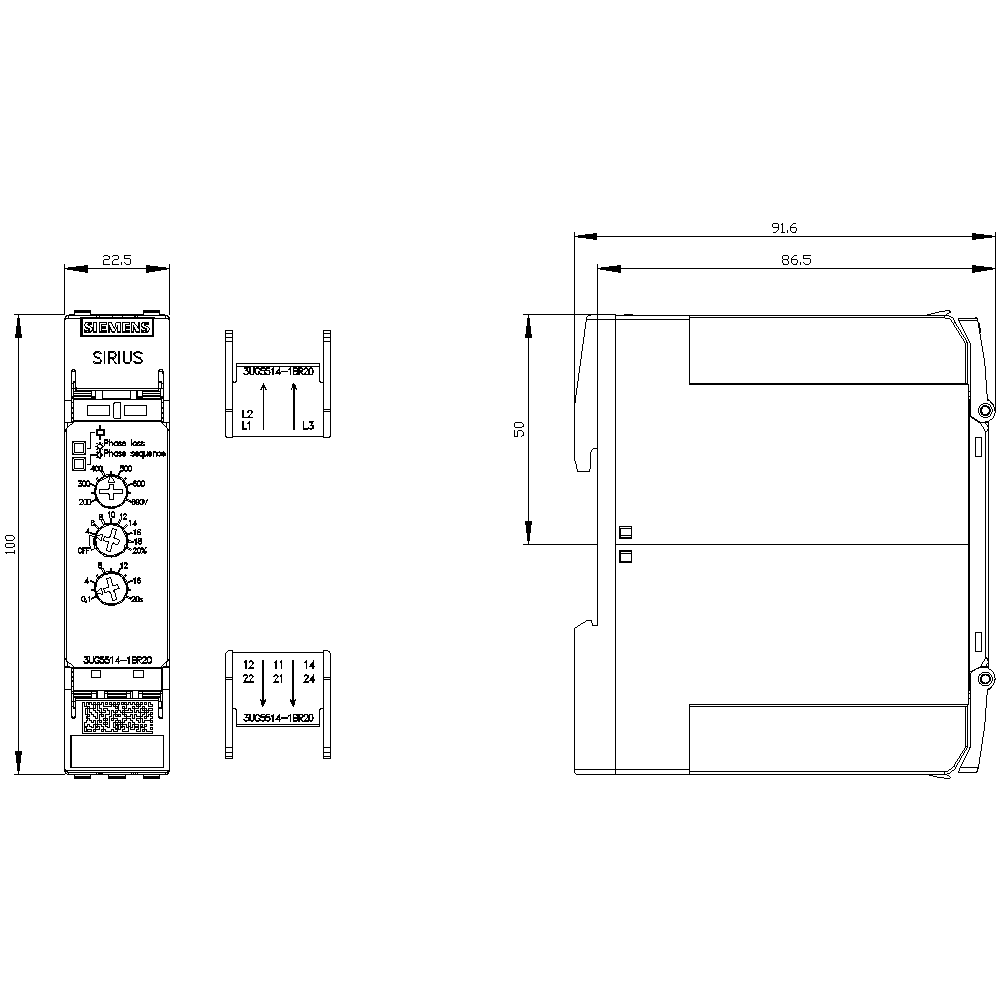

| Measurements | |
| Depth | 90 |
| Height | 100 |
| Width | 22.5 |
| Options | |
| Phase imbalance monitoring | Yes |
| Phase failure detection | Yes |
| Phase sequence monitoring | Yes |
| Function overvoltage detection | No |
| Function under voltage detection | Yes |
| Electrical | |
| Rated switch current | 3 |
| Voltage type (supply voltage) | AC |
| External power supply required | No |
| Voltage type (operating voltage) | AC/DC |
| Supply voltage AC 50 Hz | 200 |
| Operating voltage AC 60 Hz | 200 |
| Operating voltage AC 50 Hz | 200 |
| Supply voltage AC 60 Hz | 200 |
| Voltage measuring range | 160 |
| Supply voltage DC | - |
| Operating voltage DC | - |
| Operating conditions | |
| Max. permitted off-delay time | 20 |
| Max. permitted delay-on energization time | - |
| Setting/control | |
| Min. adjustable delay-on energization time | 0.1 |
| Min. adjustable off-delay time | 0.1 |
| Connection | |

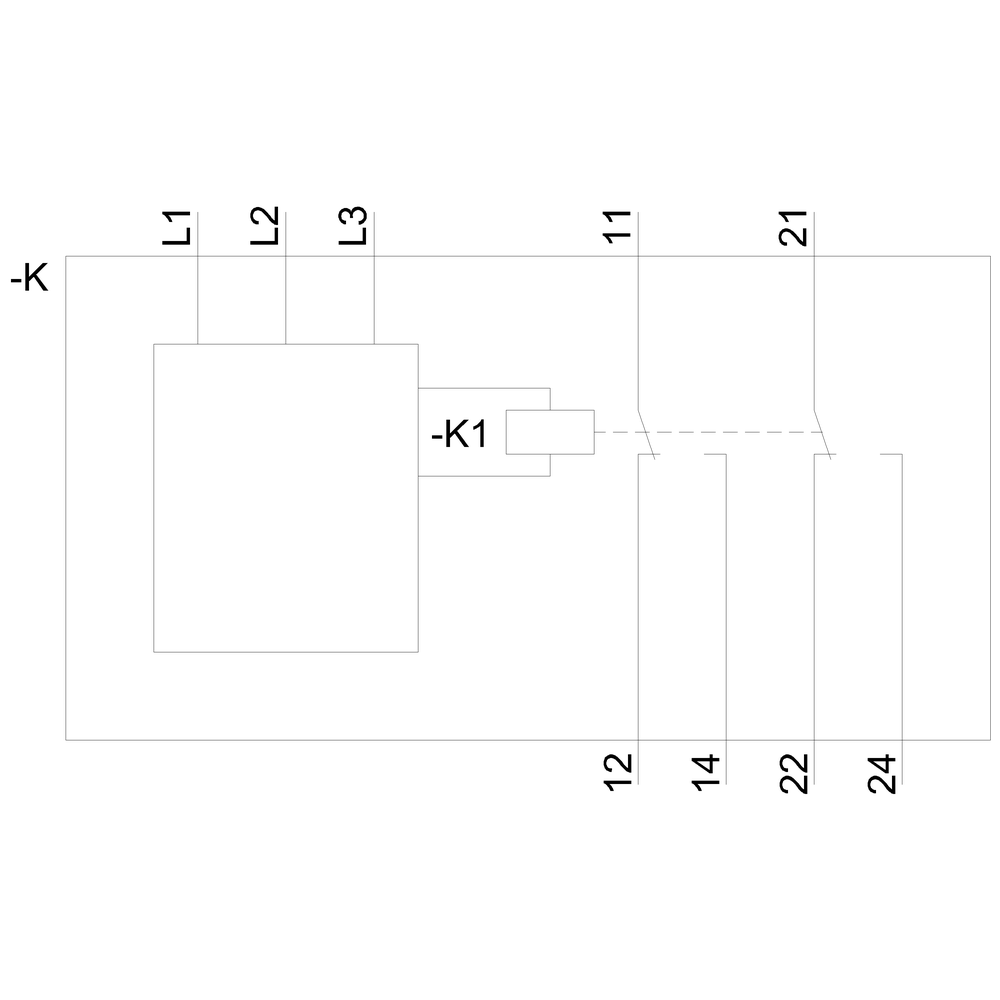

| Number of contacts as change-over contact | 2 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Model/type | |
| With detachable clamps | Yes |
| Package 1 | |
| weight | 0,169 |
| length | 0,127 |
| width | 0,111 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4047621099927 |
| Dimensions of product | |
| Weight | 0,169 |
