Analog monitoring relay voltage monitoring from 20 to 275 V AC/DC overshoot and undershoot with
Cod produs: 3UG5533-1AL30
Descriere

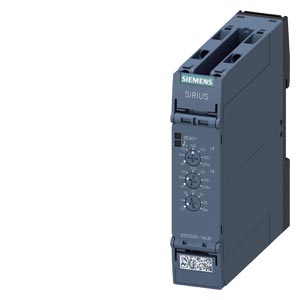

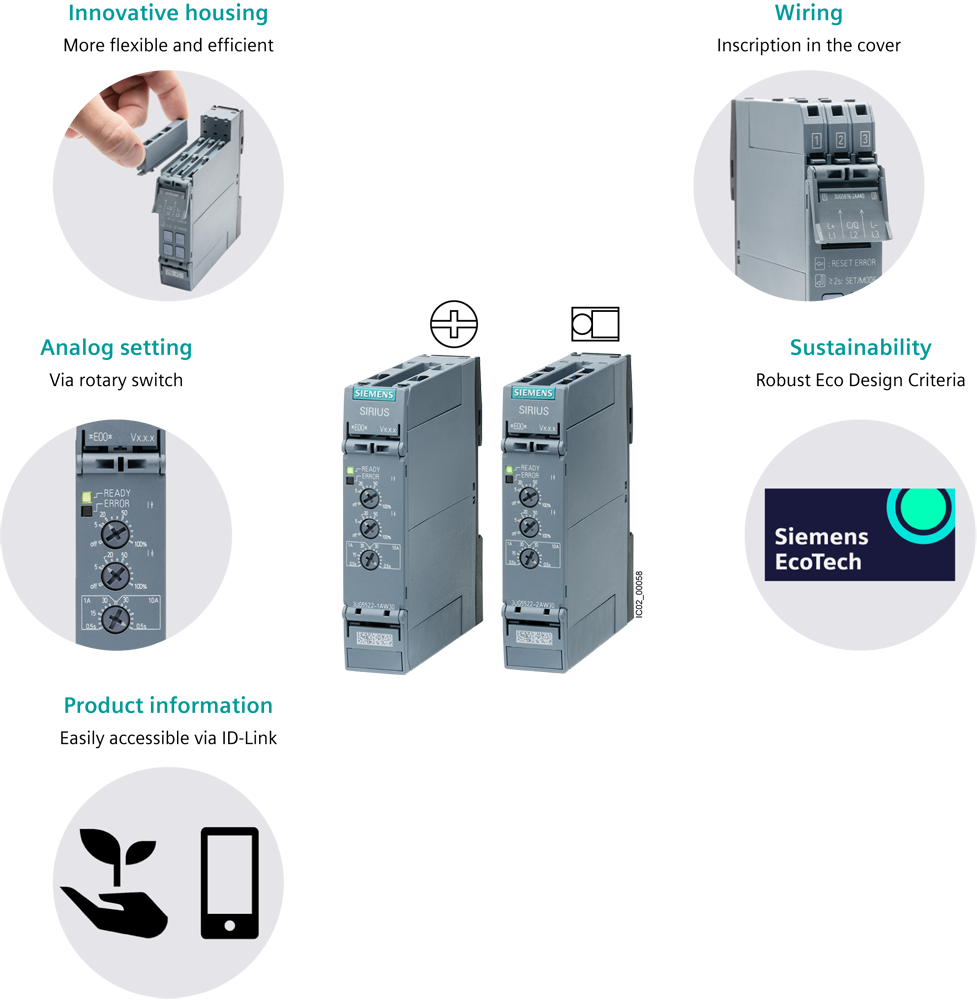

SIRIUS 3UG5 Analog Monitoring Relay
The SIRIUS 3UG5 is designed for voltage monitoring, detecting overshoot and undershoot to protect systems from damage.
Technical details:
- Voltage monitoring from 20 to 275 V AC/DC
- Internal power supply 24 to 240 V DC and AC
- Frequency 50 to 60 Hz
- ON delay and tripping delay 0.1 .. 30 s

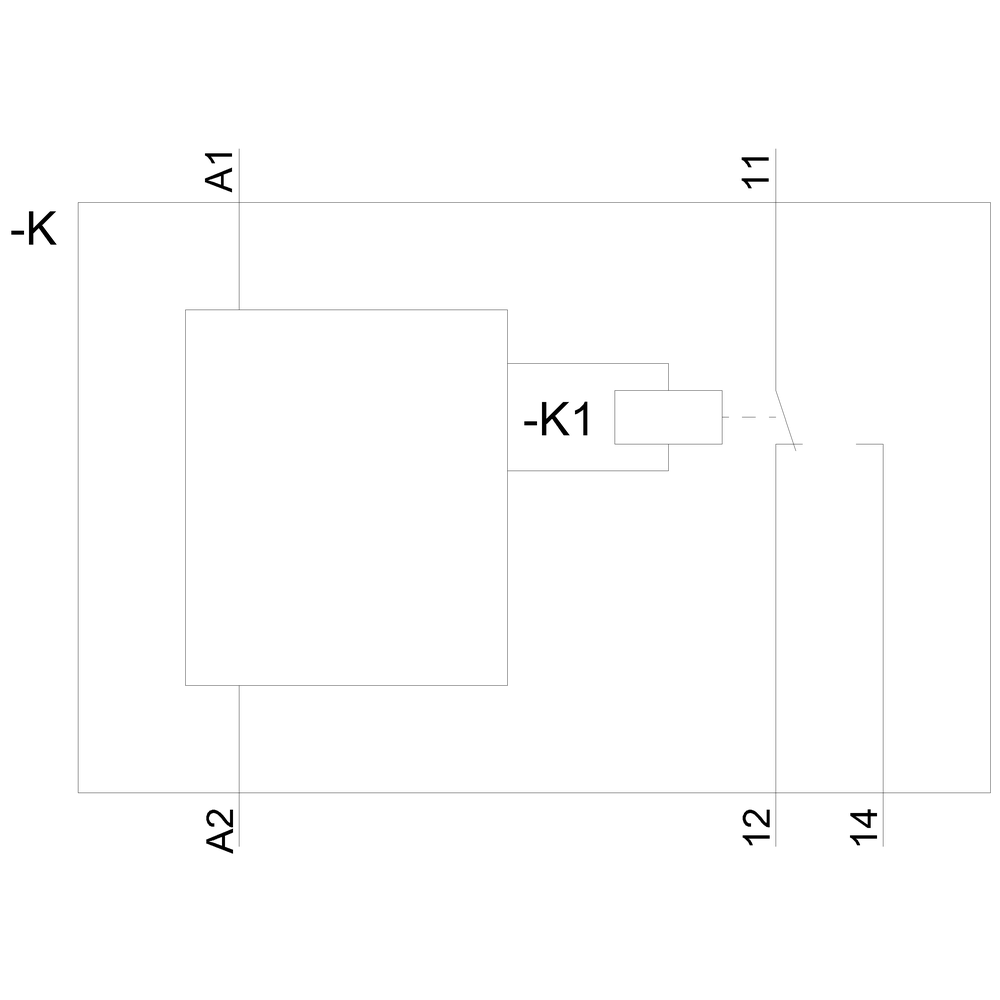

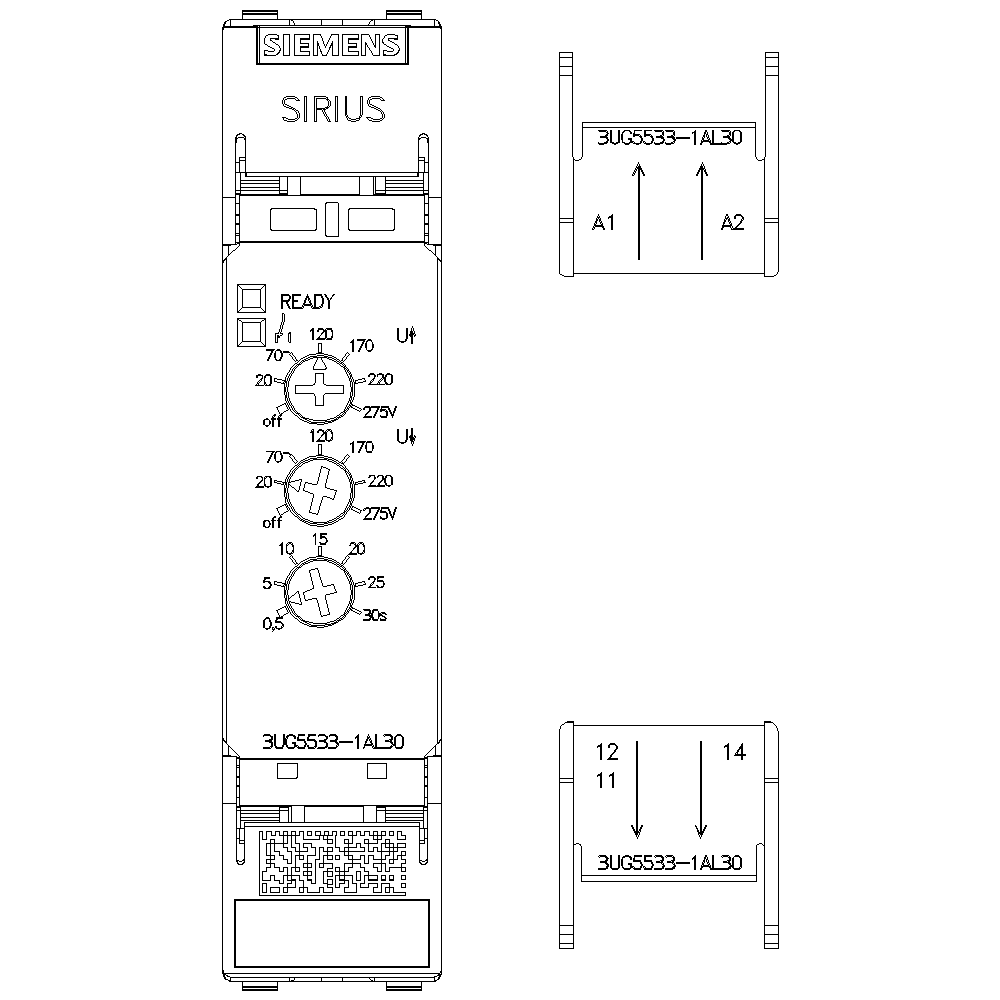

- 1 changeover contact screw terminal
- Variably adjustable to overshoot, undershoot or window monitoring
- Delay times and RESET behavior are freely parameterizable
- Slim design for less space required in the control cabinet
- Reliable diagnostics with display of ACTUAL value and status messages

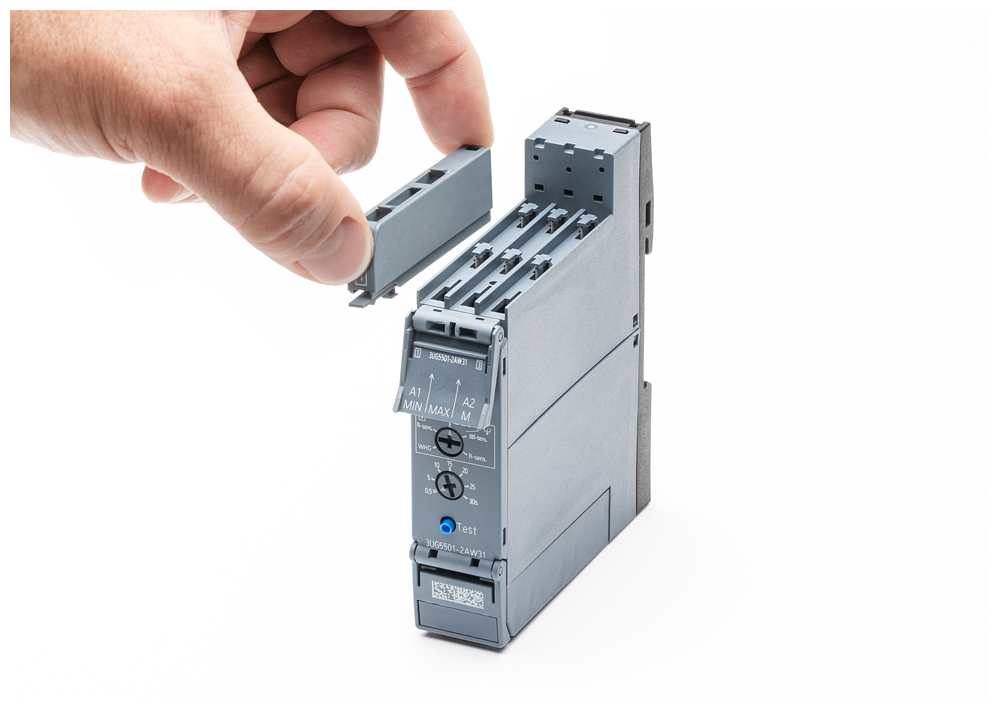

- Versions with removable terminals; available with spring-type terminals
- Devices differ regarding power supply (internal or external)
- Optional wide voltage range or with IO-Link
- Comprehensive range of standardized accessories
- Replaces the well-proven 3UG4 series
Customer benefits:
- Protects systems from damage and batteries against deep discharge
- Worldwide use thanks to international certificates
- Fast, maintenance-free and vibration-proof connection options
- SIRIUS relays suitable for various applications
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii

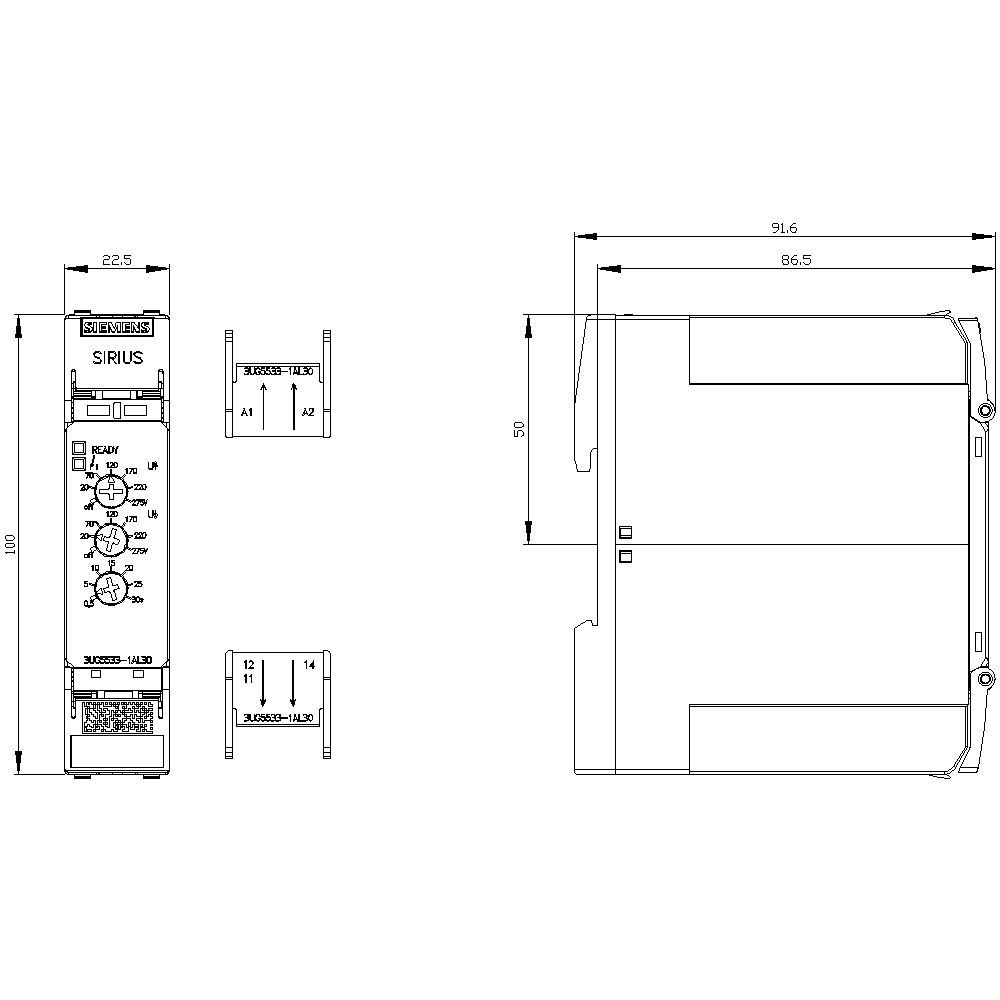

| Measurements | |
| Depth | 90 |
| Height | 100 |
| Width | 22.5 |
| Electrical | |
| Rated switch current | 3 |
| Response value voltage | 20 |
| Voltage measuring range 1 | 20 |
| Voltage measuring range 2 | - |
| Voltage type (supply voltage) | AC/DC |
| Single-phase under voltage possible | Yes |
| Single-phase overvoltage possible | Yes |
| External power supply required | No |
| Three-phase under voltage possible | No |
| Voltage type (operating voltage) | AC/DC |
| Three-phase overvoltage possible | No |
| Supply voltage AC 50 Hz | 24 |
| Operating voltage AC 60 Hz | 240 |
| Operating voltage AC 50 Hz | 240 |
| Supply voltage AC 60 Hz | 24 |
| Type of voltage measuring range | AC/DC |
| Supply voltage DC | 24 |
| Operating voltage DC | 24 |
| Operating conditions | |
| Max. permitted off-delay time | 30 |
| Max. permitted delay-on energization time | 30 |
| Setting/control | |
| Min. adjustable delay-on energization time | - |
| Min. adjustable off-delay time | 0.5 |
| Connection | |
| Number of contacts as change-over contact | 1 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Model/type | |
| With detachable clamps | Yes |
| Options | |
| Single-phase hysteresis possible | Yes |
| Contains function DC-under voltage | Yes |
| Three-phase hysteresis possible | No |
| Contains function DC-voltage hysteresis | Yes |
| Contains function DC overvoltage | Yes |
| Package 1 | |
| weight | 0,145 |
| length | 0,127 |
| width | 0,111 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4047621114149 |
| Dimensions of product | |
| Weight | 0,145 |
