Descriere

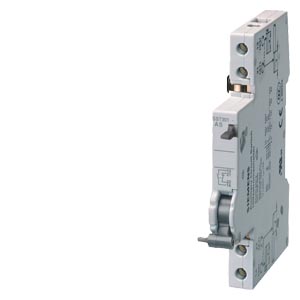

auxiliary switch with test button 1 NO + 1 NC for miniature circuit breakers 5SL, 5SY, 5SP, incorporated switch 5TL1, RCBO 5SU1 (without 5SU1…FP/FR), RCCB 5SV (for 5SU1, handle coupler 5ST3805-1 is required) auxiliary switches SENTRON 5ST3 as additional components for residual current devices and miniature circuit breakers. These additional components can be mounted universally. They are easy and convenient to install and connect. Thanks to the standard touch protection, safety is reliably ensured during installation. Optimized technology for your safety - only from Siemens.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Suitable for max. number of poles main contact unit (total) | - |
| Rated switch current | - |
| Voltage type | - |
| Suitable for max. current main contact unit | - |
| Rated voltage | - |
| Model/type | |
| Function | - |
| Number of fault-signal switches | 0 |
| With auto test for earth leakage function | - |
| Connection | |
| Number of contacts as change-over contact | 0 |

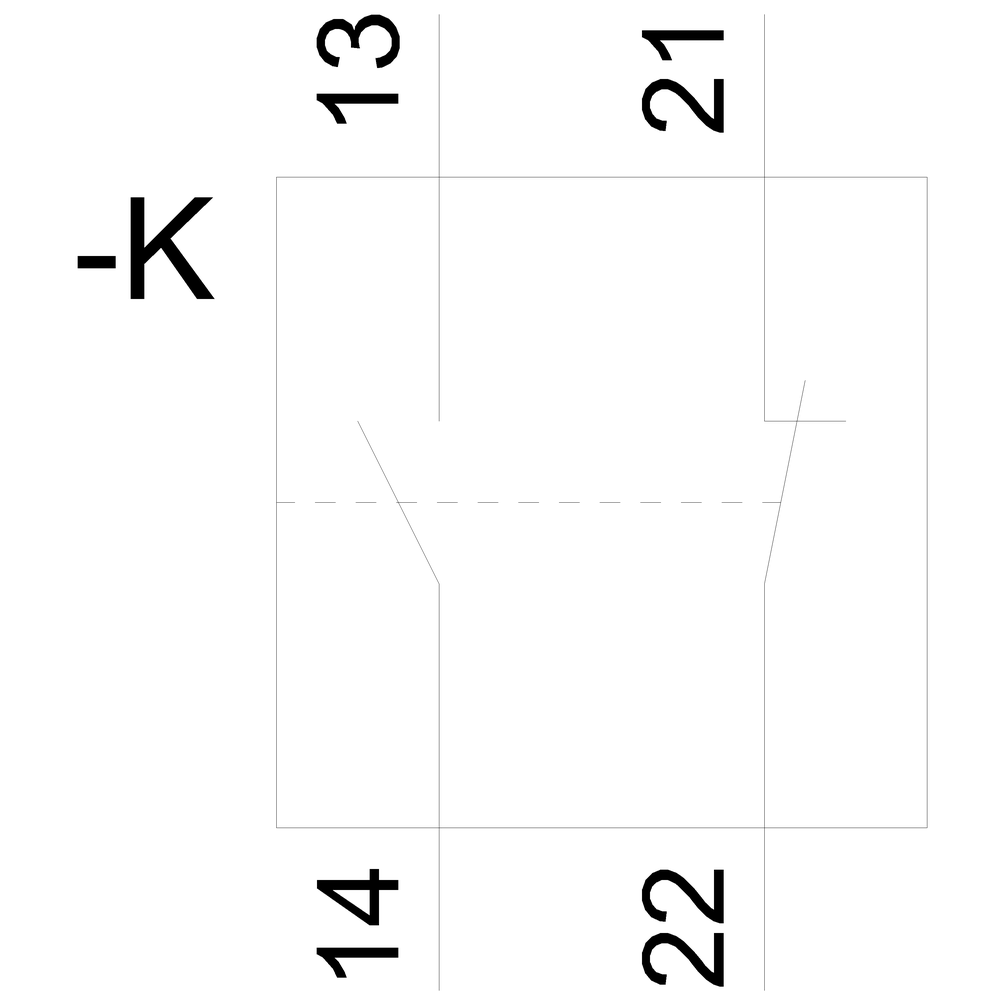

| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Measurements | |
| Width in number of modular spacings | 0.5 |
| Other | |
| Device fitting | Universal |
| Package 1 | |
| weight | 0,068 |
| length | 0,09 |
| width | 0,018 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869395616 |
| Dimensions of product | |
| Weight | 0,068 |
Accesorii
