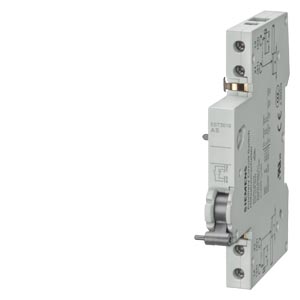

Auxiliary switch 2 NC for miniature circuit breakers
This product serves as an additional component for Siemens residual current devices and miniature circuit breakers, enhancing their functionality.
Technical details:
- For miniature circuit breakers 5SL, 5SY, 5SP
- Incorporated switch 5TL1
- RCBO 5SU1 (without 5SU1…FP/FR)
- RCCB 5SV (for 5SU1, handle coupler 5ST3805-1 is required)
- Auxiliary switches SENTRON 5ST3
- Can be mounted universally
Customer benefits:
- Easy and convenient to install and connect
- Standard touch protection ensures safety during installation
- Optimized technology for safety
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Suitable for max. number of poles main contact unit (total) | - |
| Rated switch current | - |
| Voltage type | - |
| Suitable for max. current main contact unit | - |
| Rated voltage | 400 |
| Model/type | |
| Function | - |
| Number of fault-signal switches | 0 |
| With auto test for earth leakage function | - |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 0 |

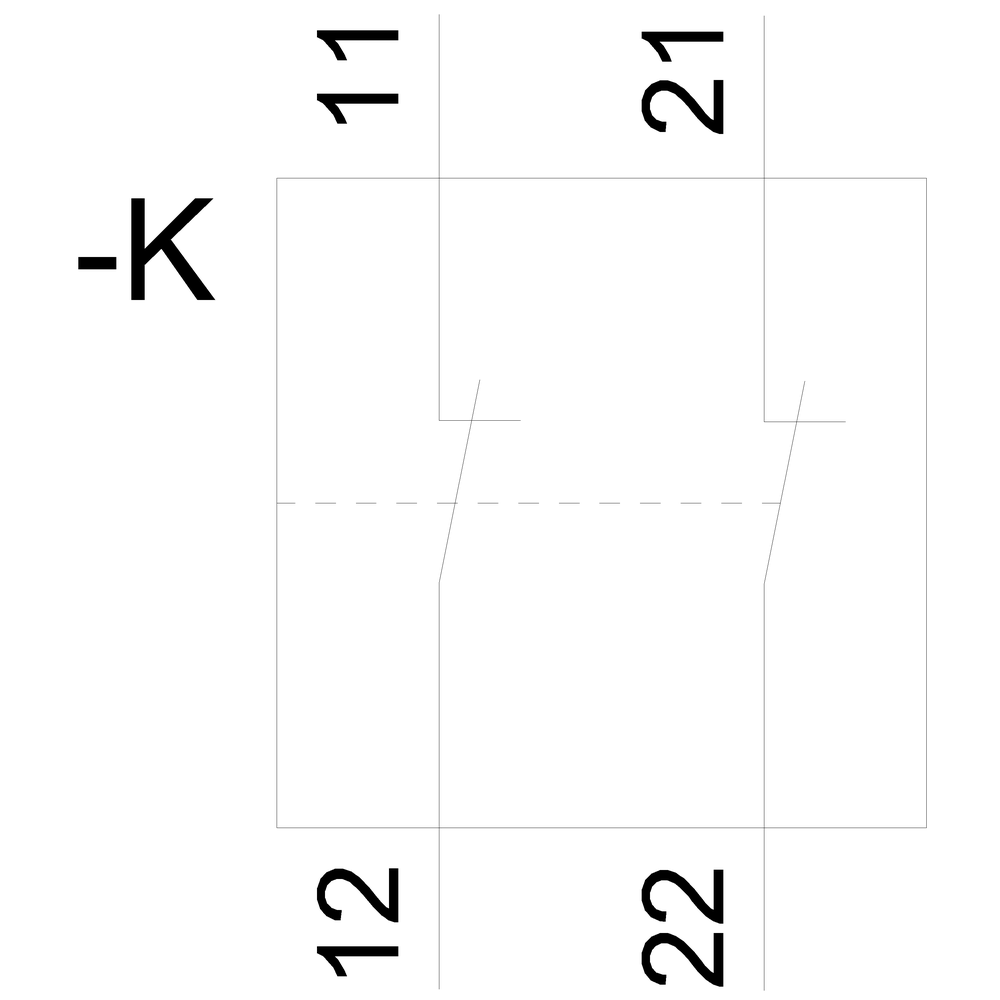

| Number of contacts as normally closed contact | 2 |
| Measurements | |
| Width in number of modular spacings | 0.5 |
| Other | |
| Device fitting | Universal |
| Package 1 | |
| weight | 0,063 |
| length | 0,092 |
| width | 0,082 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869187426 |
| Package 2 | |
| volume | 0,026 |
| weight | 9,154 |
| length | 0,44 |
| width | 0,325 |
| qmax | 138 |
| qmin | 138 |
| um | CT |
| gtin | 4001869187426 |
| Dimensions of product | |
| Weight | 0,063 |
