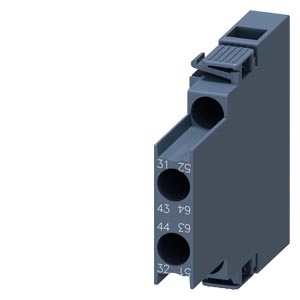

AUXILIARY SWITCH LATERAL, 1 NO + 1 NC CURRENT PATH 1 NC, 1 NO FOR 3RH AND 3RT SCREW TERMINAL R: 31/3

Auxiliary switch

The auxiliary switch is designed for the expansion of auxiliary contacts in the control circuit of SIRIUS contactors.

Technical details:

• Lateral
• 1 NO + 1 NC

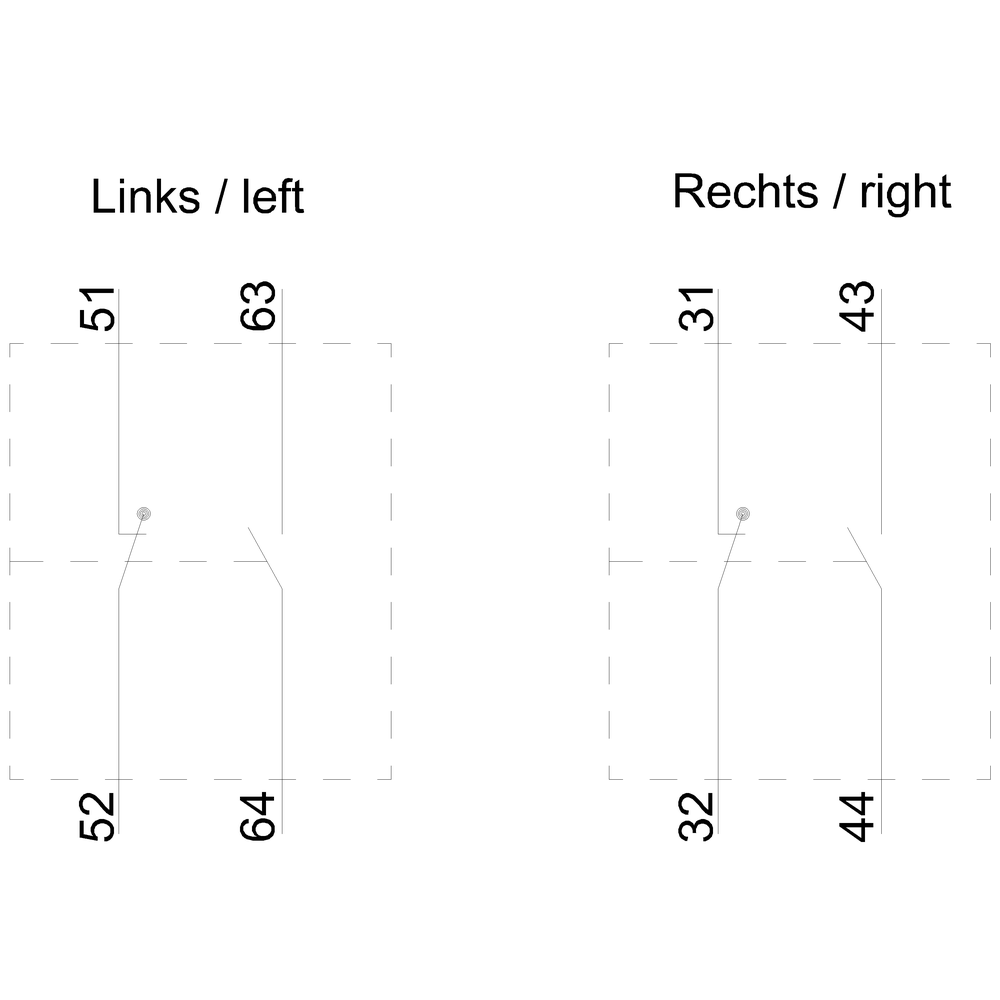

• On the left: 51/52, 63/64
• On the right: 31/32, 43/44
• Current path: 1 NC, 1 NO
• Screw terminal
• For contactors: 3RT2 and contactor relays 3RH2
• Auxiliary switch SIRIUS 3RH29
• Can be laterally mounted onto 3RT2 contactors without tools
• Available as versions for front or lateral mounting
• Up to four instantaneous contacts or up to two leading NO and NC contacts
• Positively driven contacts in 3RH contactor relays or mirror contacts in case of 3RT power contactors

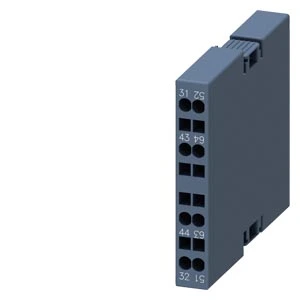

• Available with screw terminal and spring-type terminal

Customer benefits:

• Simple, efficient, and always up to date - SIRIUS modular system
