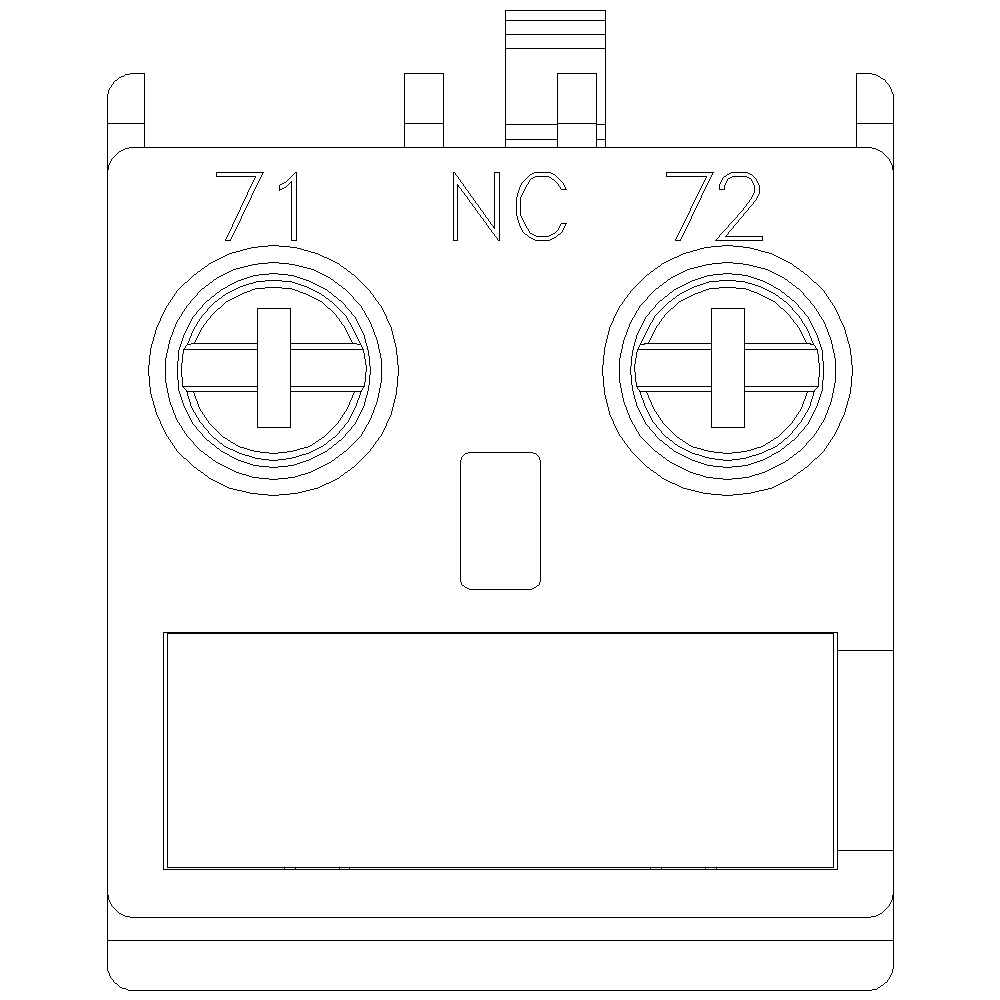

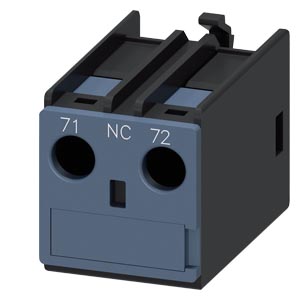

AUXILIARY SWITCH ON THE FRONT, 1 NC CURRENT PATH 1 NC CONNECTION FROM TOP FOR 3RH AND 3RT SCREW TERM
Cod produs: 3RH2911-1AA01
Alte coduri:
upc: 662643909845
Descriere
Auxiliary Switch
The auxiliary switch SIRIUS 3RH29 facilitates the expansion of auxiliary contacts in the control circuit for contactors and contactor relays.
Technical details:
- Type: Auxiliary switch
- Mounting: Front-mounted

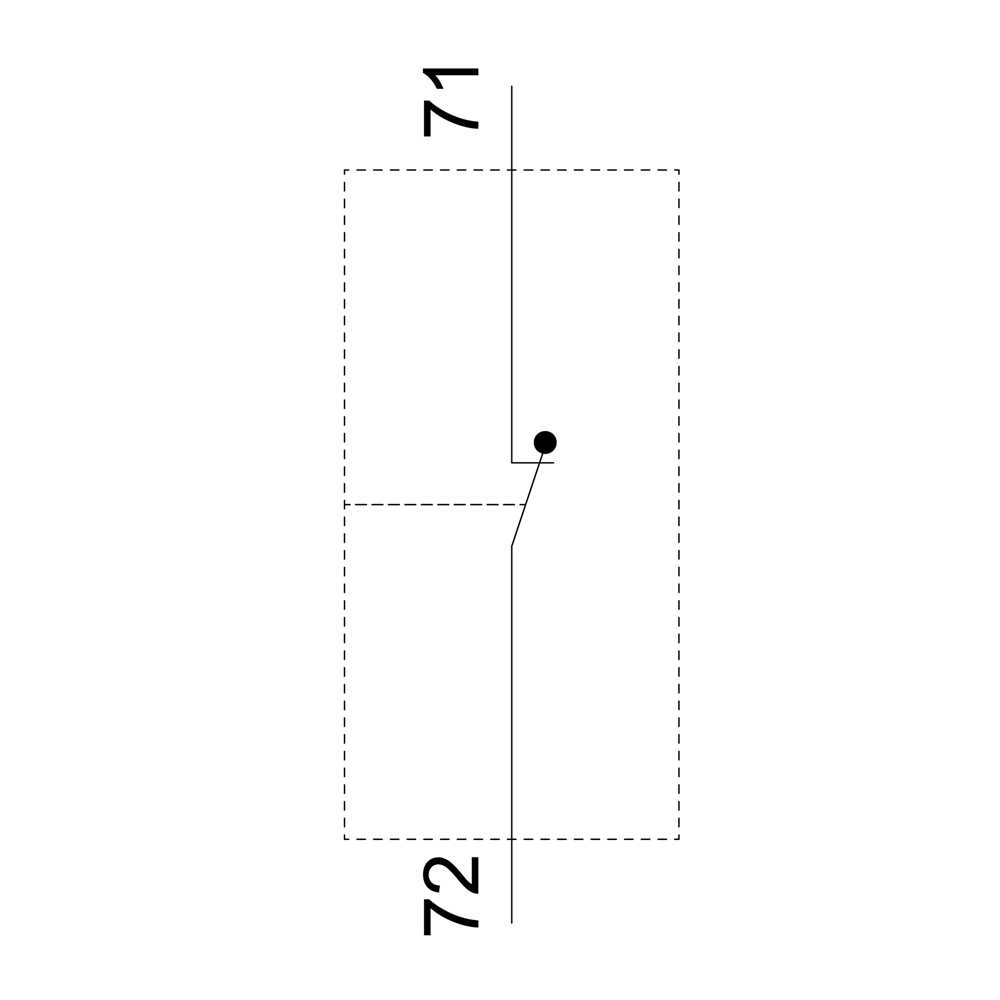

- Contacts: 1 NC
- Current path: 1 NC
- Cable entry: From the top
- Terminal type: Screw terminal
- Compatible with: Contactors 3RT2 and contactor relays 3RH2
- Version: Available for front or lateral mounting
- Contact configurations: Up to four instantaneous contacts or up to two leading NO and NC contacts
- Available as: Positively driven contacts in 3RH contactor relays or mirror contacts in 3RT power contactors
Customer benefits:
- Tool-free installation on 3RT2 contactors and 3RH2 contactor relays
- Part of the simple, efficient, and always up-to-date SIRIUS modular system
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Lamp holder | None |
| Model | - |
| Number of fault-signal switches | 0 |
| Mounting/installation | |
| Mounting method | Other |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Screw connection |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Package 1 | |
| weight | 0,02 |
| length | 0,122 |
| width | 0,089 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209830035 |
| Dimensions of product | |
| Weight | 0,020 |
