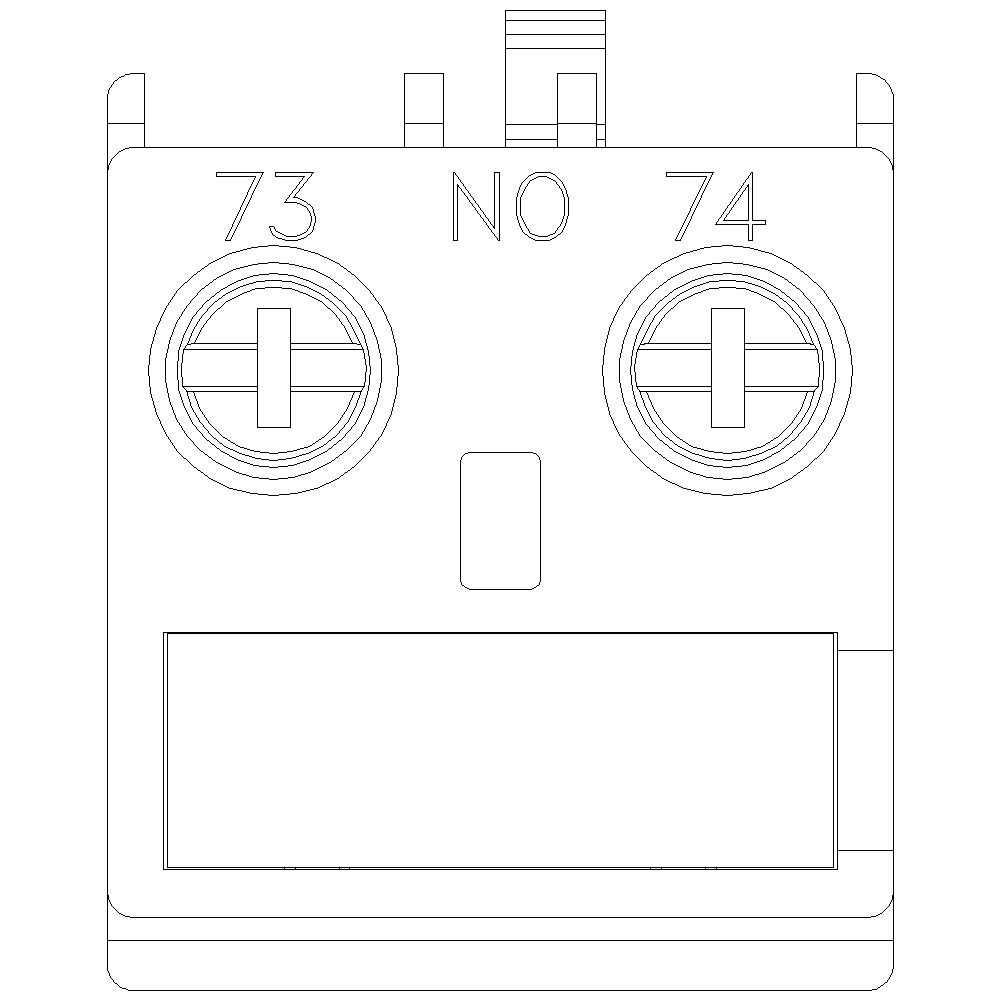

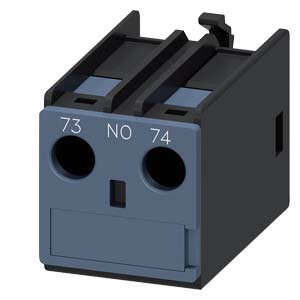

AUXILIARY SWITCH ON THE FRONT, 1 NO CURRENT PATH 1 NO CONNECTION FROM TOP FOR 3RH AND 3RT SCREW TERM

Auxiliary switch

The auxiliary switch is designed for the expansion of auxiliary contacts in the control circuit of contactors and relay systems.

Technical details:

• 1 NO

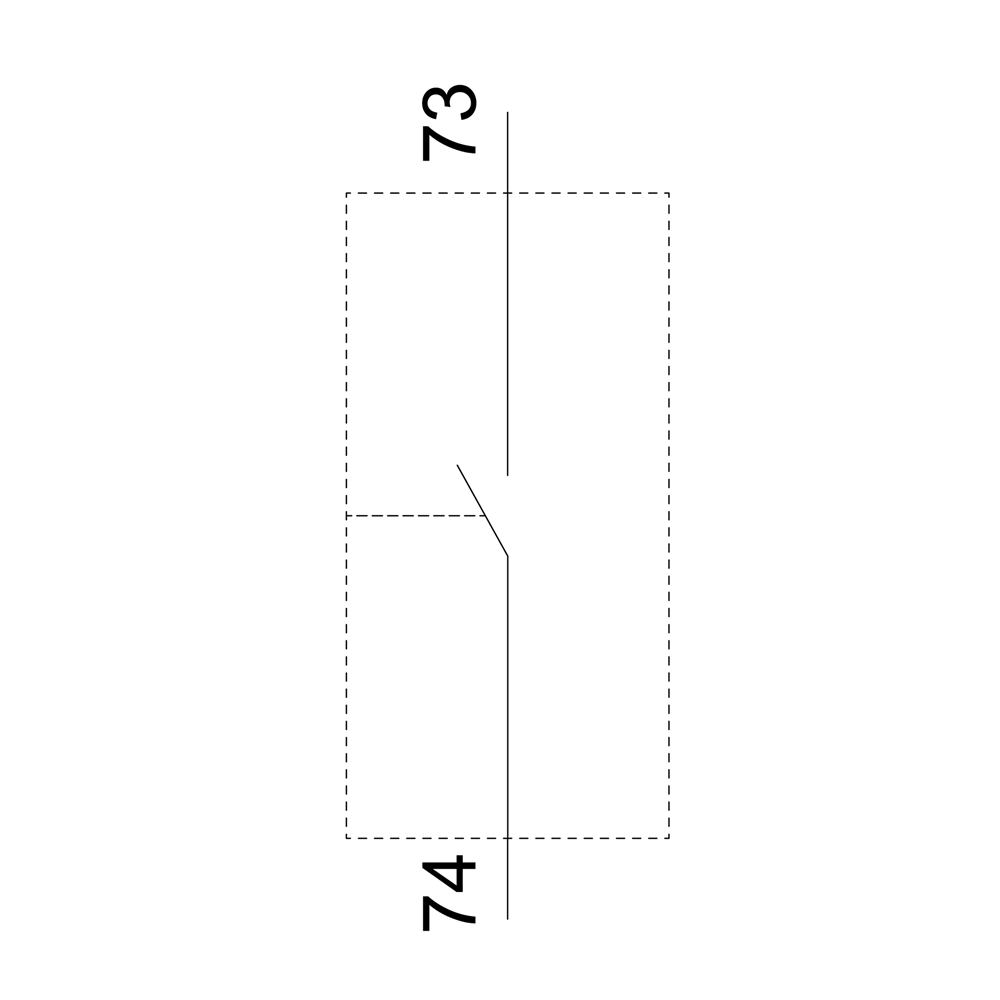

• 73/74
• Current path: 1 NO
• Cable entry from the top
• Screw terminal
• For contactors 3RT2 and contactor relays 3RH2
• Versions for front or lateral mounting
• Available with screw terminal and spring-type terminal

Customer benefits:

• Front-mounted 3RH29 auxiliary switches can be installed without the need for tools, regardless of size.
• Up to four instantaneous contacts or up to two leading NO and NC contacts are available.
• Designed as positively driven contacts in 3RH contactor relays or as mirror contacts in 3RT power contactors.
• Simple, efficient and always up to date with the SIRIUS modular system.
