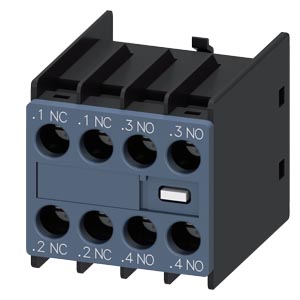

AUXILIARY SWITCH ON THE FRONT, 2 NO + 2 NC CURRENT PATH 1 NC, 1 NC, 1 NO, 1 NO FOR 3RH AND 3RT SCREW

Auxiliary switch

The 3RH29 auxiliary switch is designed for expansion of auxiliary contacts in the control circuit of contactors and contactor relays.

Technical details:

• Type: Auxiliary switch
• Mounting: Front-mounted
• Configuration: 2 NO + 2 NC

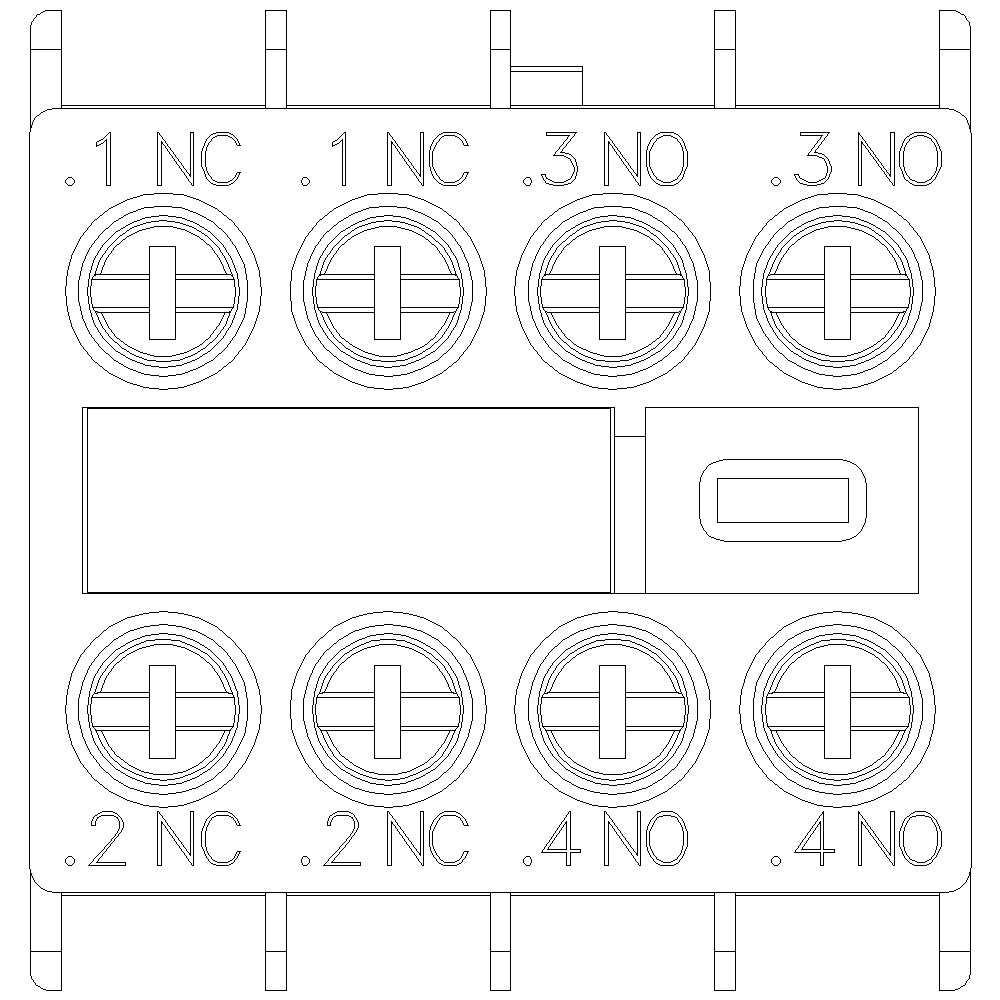

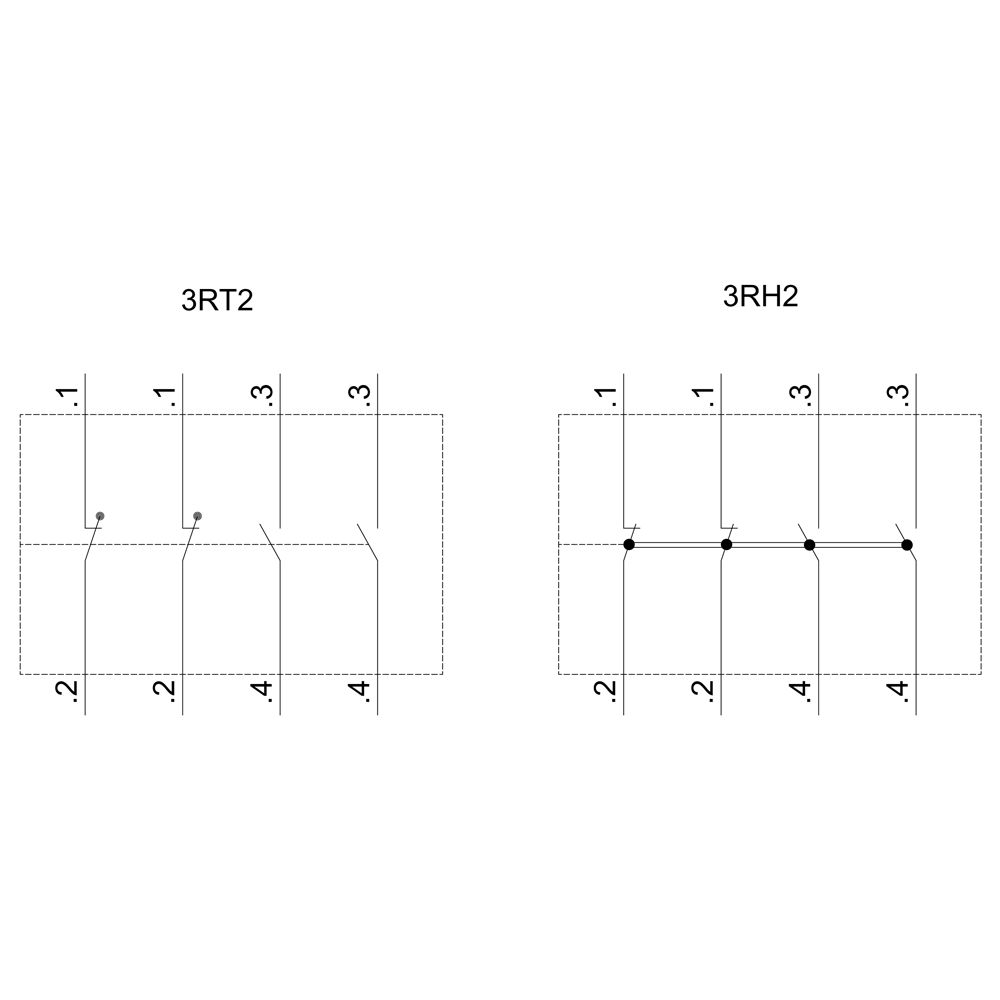

• Current path: 1 NC, 1 NC, 1 NO, 1 NO
• Terminals: Screw terminal
• Compatibility: For contactors 3RT2 and contactor relays 3RH2
• Design: Positively driven contacts or mirror contacts for 3RT power contactors
• Mounting versions: Front or lateral mounting
• Contact options: Up to four instantaneous contacts or up to two leading NO and NC contacts

Customer benefits:

• Tool-less installation on 3RT2 contactors and 3RH2 contactor relays
• Simple and efficient integration into the modular system
• Flexibility with multiple mounting options and contact configurations
• Always up to date with the SIRIUS modular system
