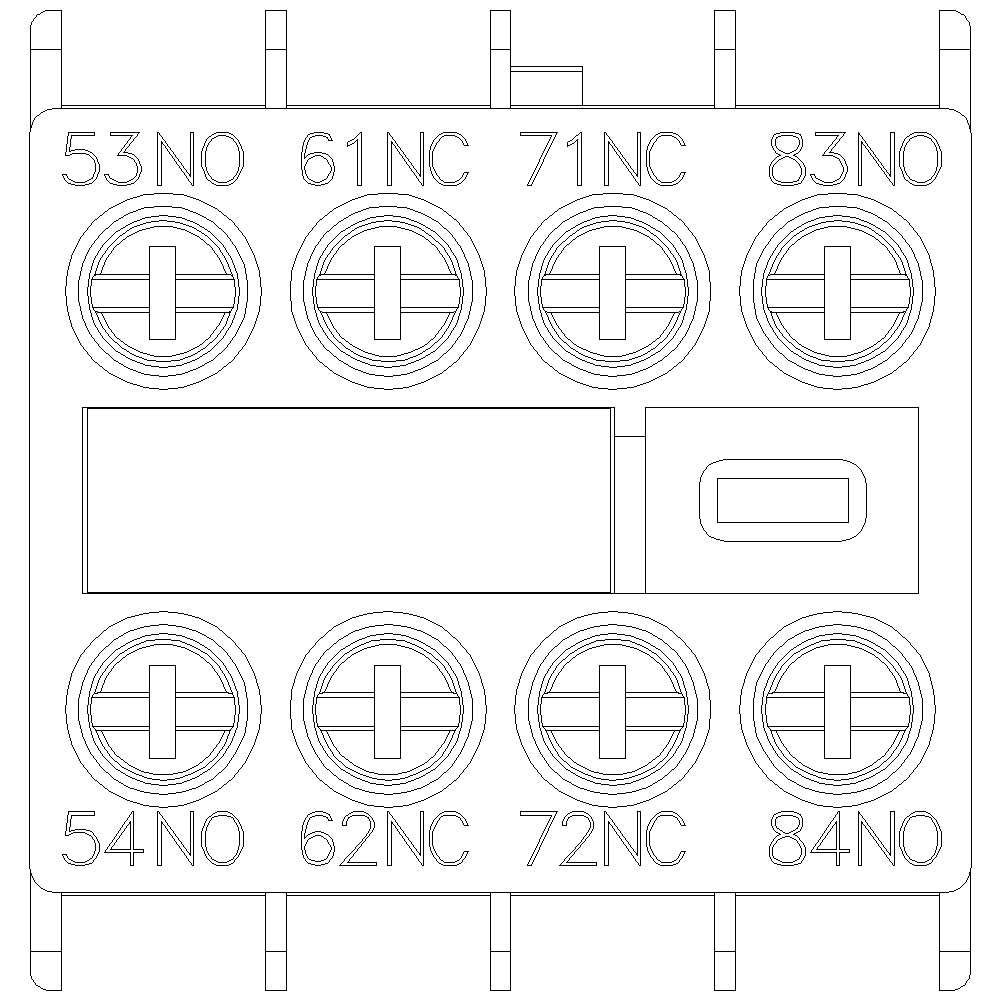

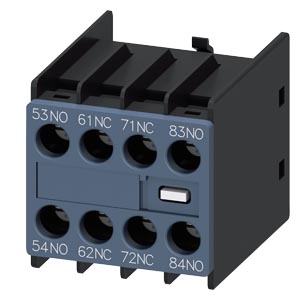

AUXILIARY SWITCH ON THE FRONT, 2 NO + 2 NC CURRENT PATH 1 NO, 1 NC, 1 NC, 1 NO FOR 3RH AND 3RT SCREW

Auxiliary switch

The SIRIUS 3RH29 auxiliary switch is designed to expand auxiliary contacts in the control circuit for 3RT2 contactors and 3RH2 contactor relays.

Technical details:

• Type: 3RH29
• Contacts: 2 NO + 2 NC

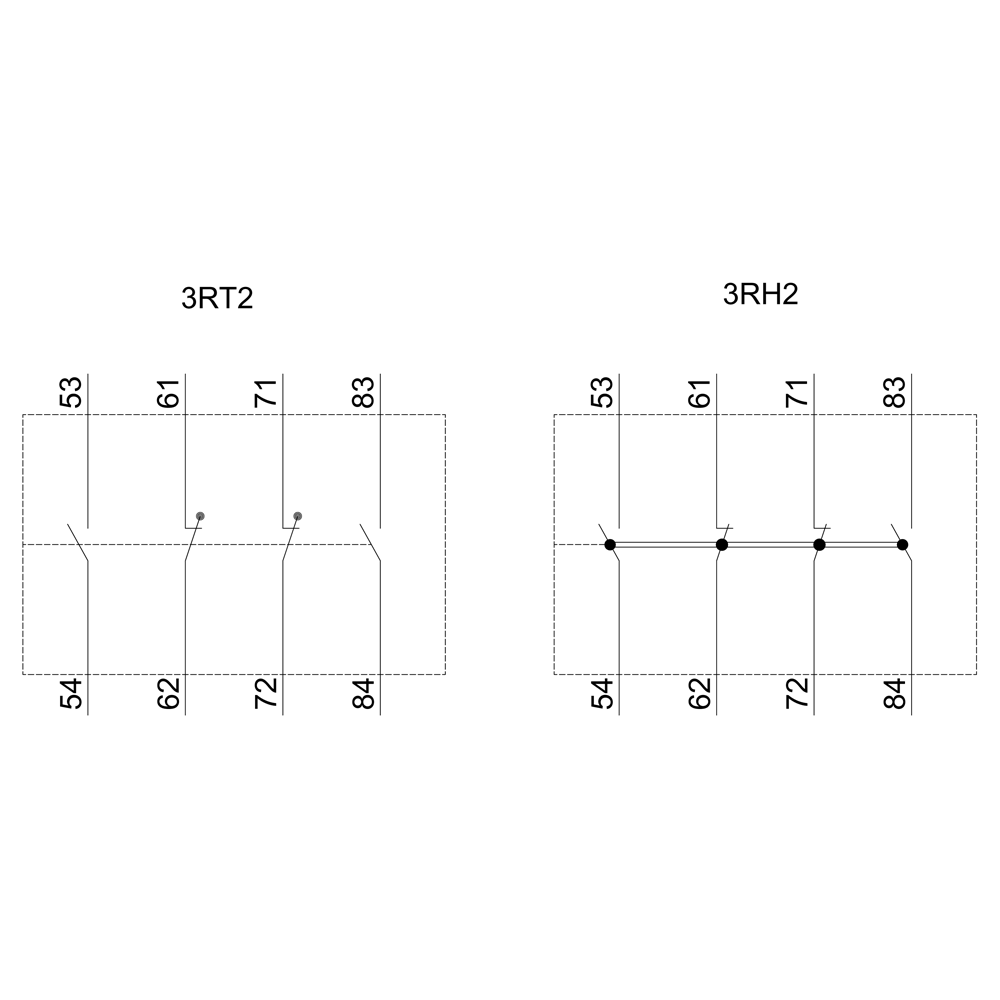

• Current path: 1 NO, 1 NC, 1 NC, 1 NO
• Mounting: Front-mounted
• Terminal type: Screw terminal
• Compatibility: For contactors 3RT2 and contactor relays 3RH2
• Installation: Without the need for tools
• Available versions: Front or lateral mounting
• Contact types: Up to four instantaneous contacts or up to two leading NO and NC contacts
• Contact design: Positively driven contacts in 3RH contactor relays or mirror contacts in 3RT power contactors

Customer benefits:

• Simple and efficient installation process
• Always up to date with the SIRIUS modular system
