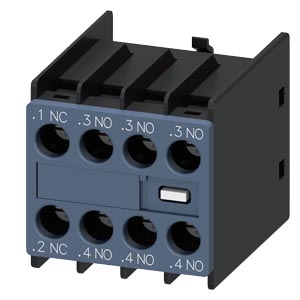

AUXILIARY SWITCH ON THE FRONT, 3 NO + 1 NC CURRENT PATH 1 NC, 1 NO, 1 NO, 1 NO FOR 3RH AND 3RT SCREW
Cod produs: 3RH2911-1HA31
Alte coduri:
upc: 662643910131
Descriere
Auxiliary switch
The auxiliary switch SIRIUS 3RH29 is designed for the expansion of auxiliary contacts in the control circuit of contactors and contactor relays.
Technical details:
- 3 NO + 1 NC

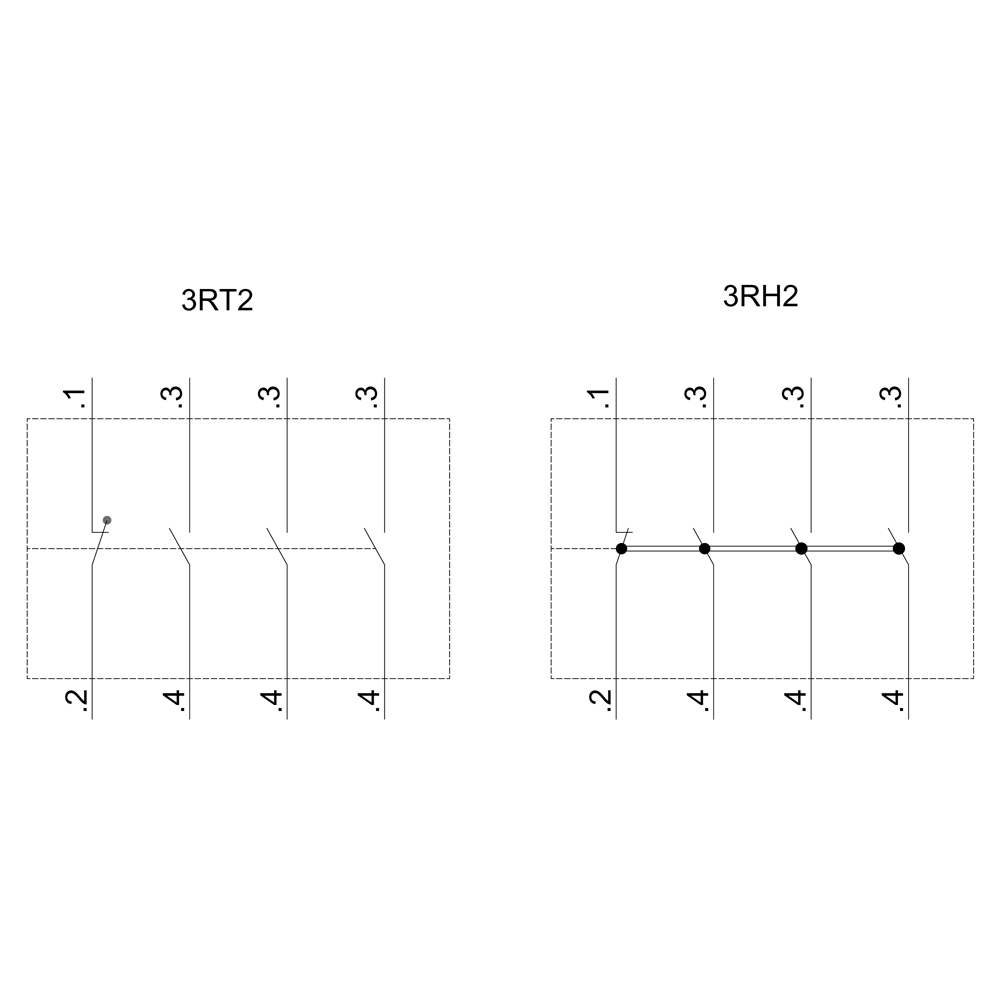

- .1/.2, .3/.4, .3/.4, .3/.4

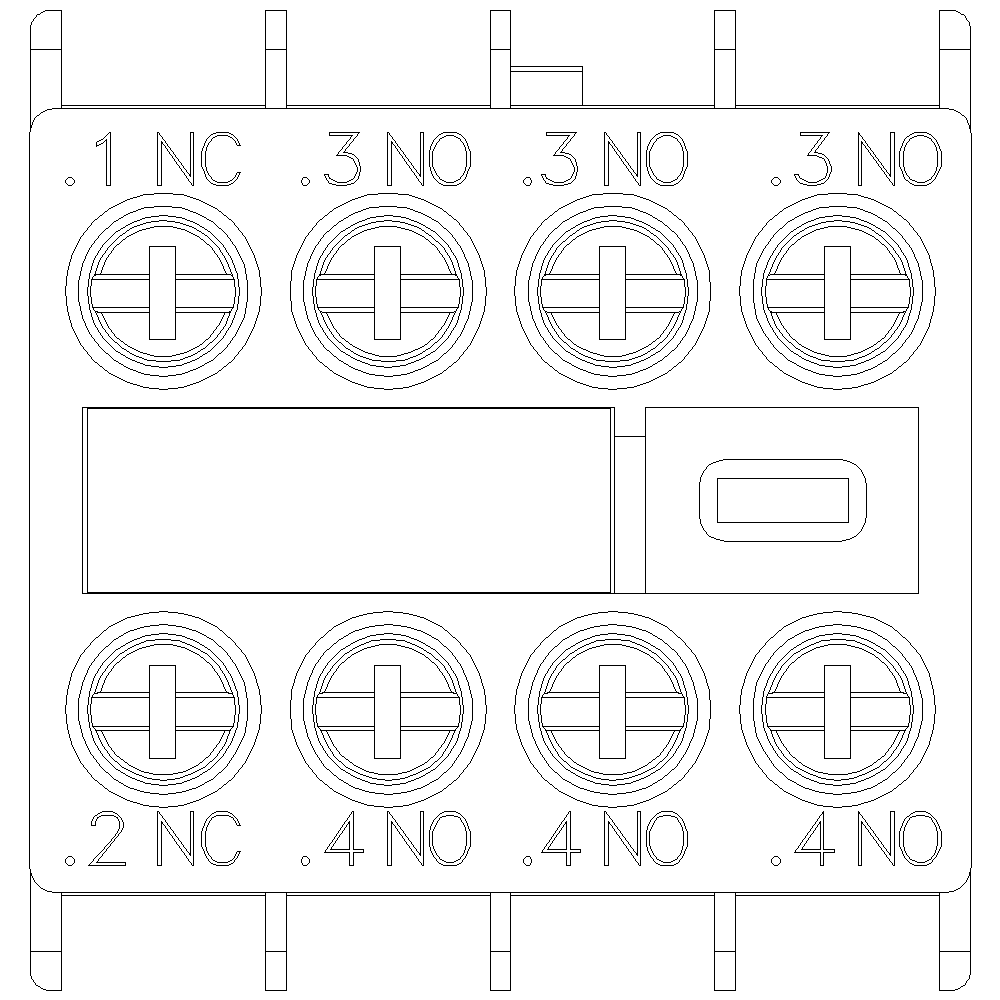

- Current path: 1 NC, 1 NO, 1 NO, 1 NO screw terminal
- Compatible with contactors 3RT2 and contactor relays 3RH2
- Front-mounted design for tool-free installation
- Versions for front or lateral mounting
- Up to four instantaneous contacts or up to two leading NO and NC contacts
- Available with screw terminal and spring-type terminal
Customer benefits:
- Simple and efficient installation without the need for tools
- Flexible mounting options to suit various installation requirements
- Modular design ensures components are always up to date
- Versatile configurations with positive or mirror contact options
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Lamp holder | None |
| Model | - |
| Number of fault-signal switches | 0 |
| Mounting/installation | |
| Mounting method | Other |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 3 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Screw connection |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 6 |
| Package 1 | |
| weight | 0,056 |
| length | 0,06 |
| width | 0,05 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209829350 |

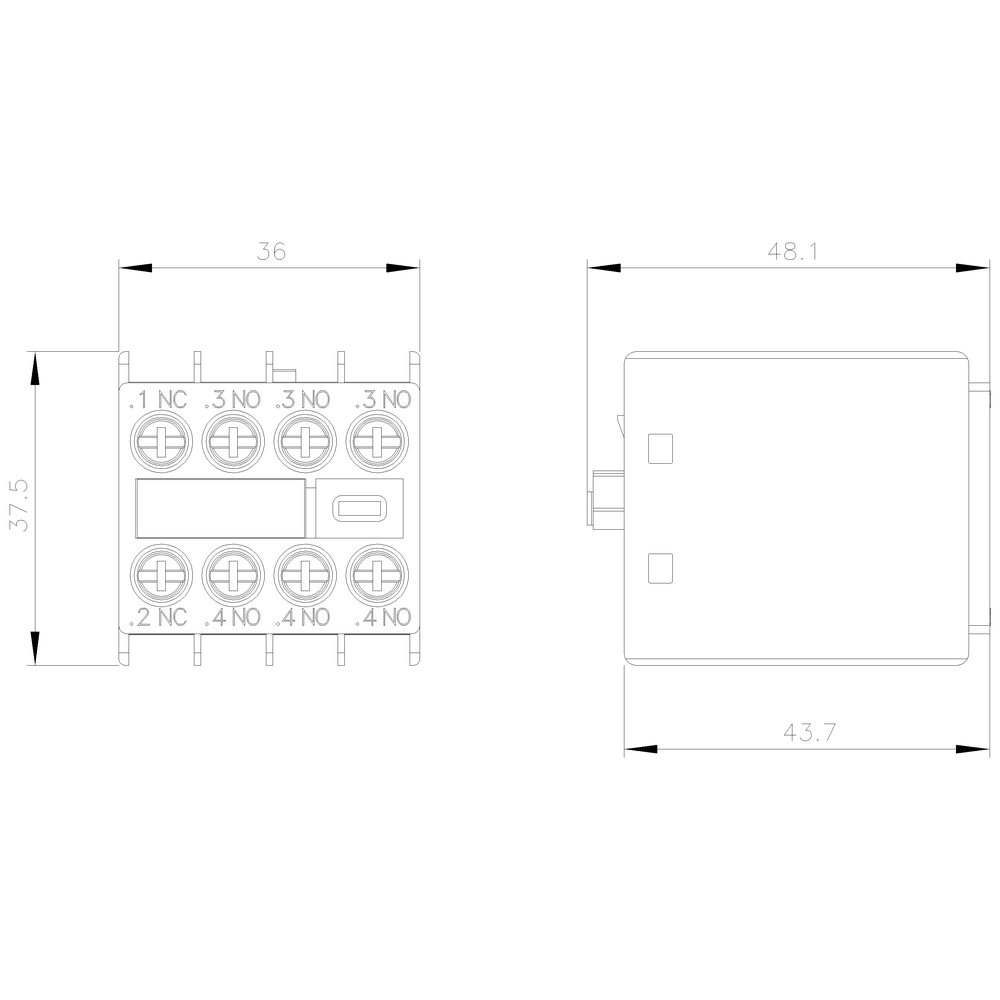

| Dimensions of product | |
| Weight | 0,056 |
