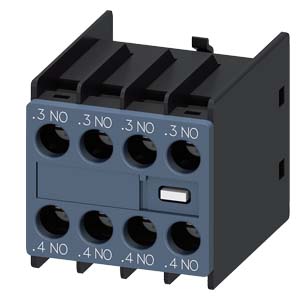

AUXILIARY SWITCH ON THE FRONT, 4 NO CURRENT PATH 1 NO, 1 NO, 1 NO, 1 NO FOR 3RH AND 3RT SCREW TERMIN

Auxiliary switch

The SIRIUS 3RH29 auxiliary switch is designed for the expansion of auxiliary contacts in control circuits for contactors 3RT2 and contactor relays 3RH2.

Technical details:

• 4 NO
• .3/.4

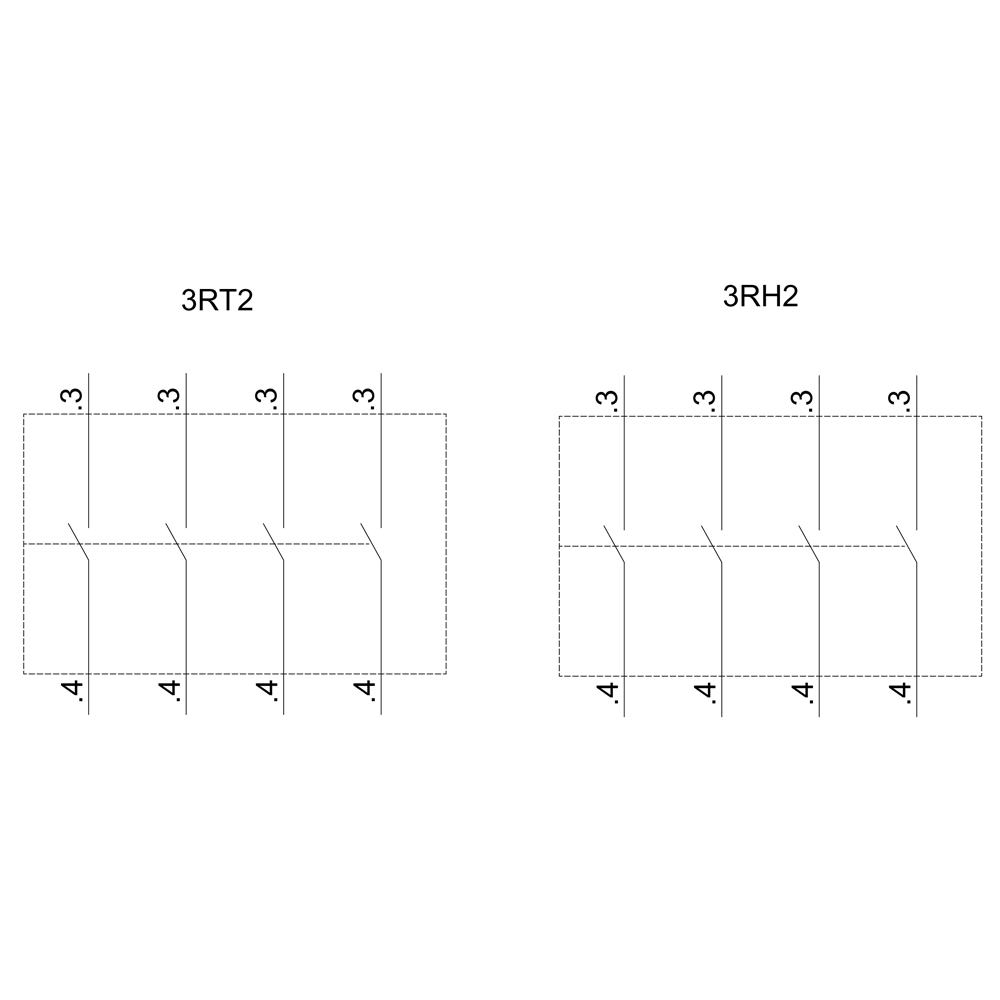

• Current path: 1 NO, 1 NO, 1 NO, 1 NO
• Screw terminal
• Compatible with contactors 3RT2 and contactor relays 3RH2
• Can be installed without tools
• Available for front or lateral mounting
• Up to four instantaneous contacts or up to two leading NO and NC contacts
• Positively driven contacts in 3RH contactor relays or mirror contacts in 3RT power contactors
• Available with screw terminal and spring-type terminal

Customer benefits:

• Simple and efficient installation
• Modular system that is always up to date
