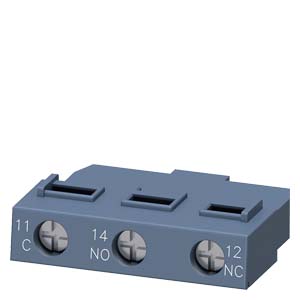

AUXILIARY SWITCH TRANSVERSE 1 CO, SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod produs: 3RV2901-1D
Descriere
Auxiliary switch transverse 1 CO, screw terminal for circuit breaker 3RV2
Simple, efficient and always up to date - SIRIUS modular system.
Technical details:
- Type: Auxiliary switch transverse
- Contacts: 1 CO
- Terminal type: Screw terminal
- Compatible with: Circuit breaker 3RV2
Customer benefits:
- Simple installation and efficient operation.
- Always up to date with the SIRIUS modular system.
Disclaimer: Generated by AI.
Documente
Specificatii
| Model/type | |
| Model | Clip-on |
| Lamp holder | None |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 3 |
| Connection | |

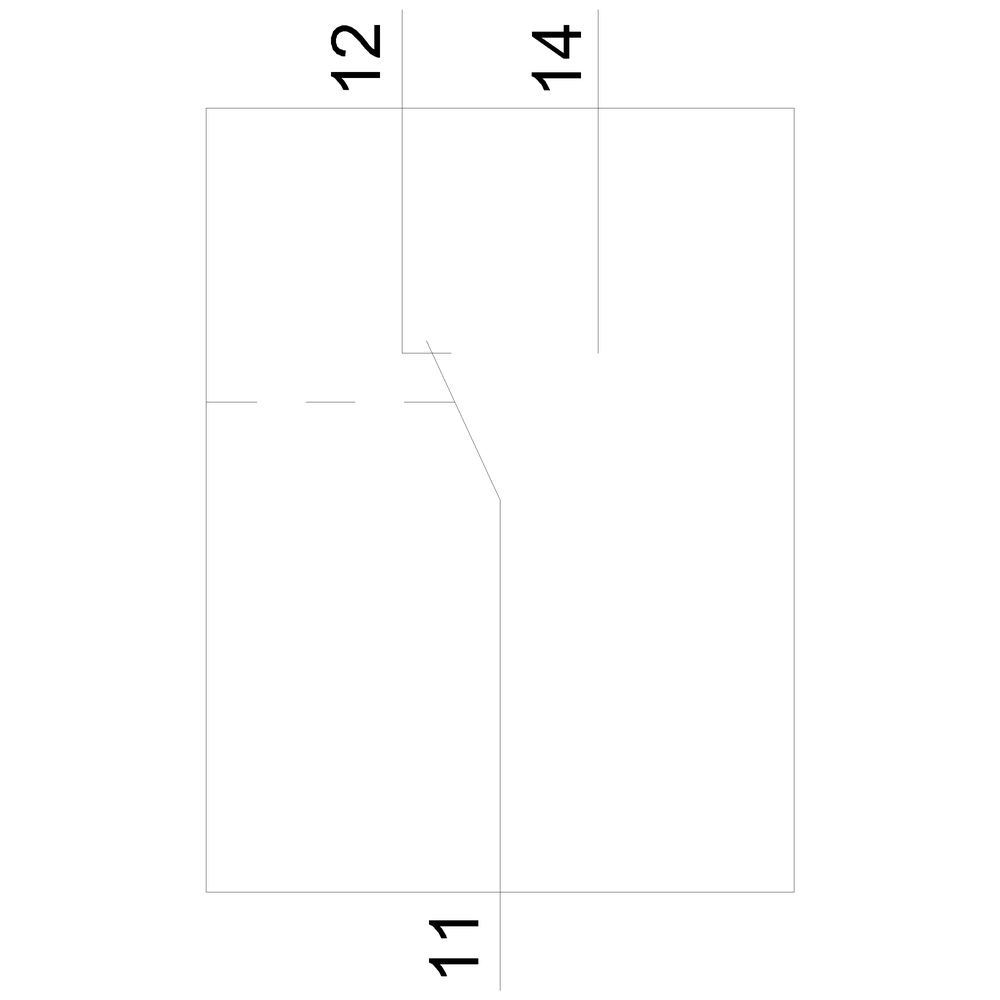

| Number of contacts as change-over contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Screw connection |
| Number of contacts as normally open contact | 0 |
| Mounting/installation | |
| Mounting method | Other |
| Package 1 | |
| weight | 0,016 |
| length | 0,045 |
| width | 0,035 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209790940 |

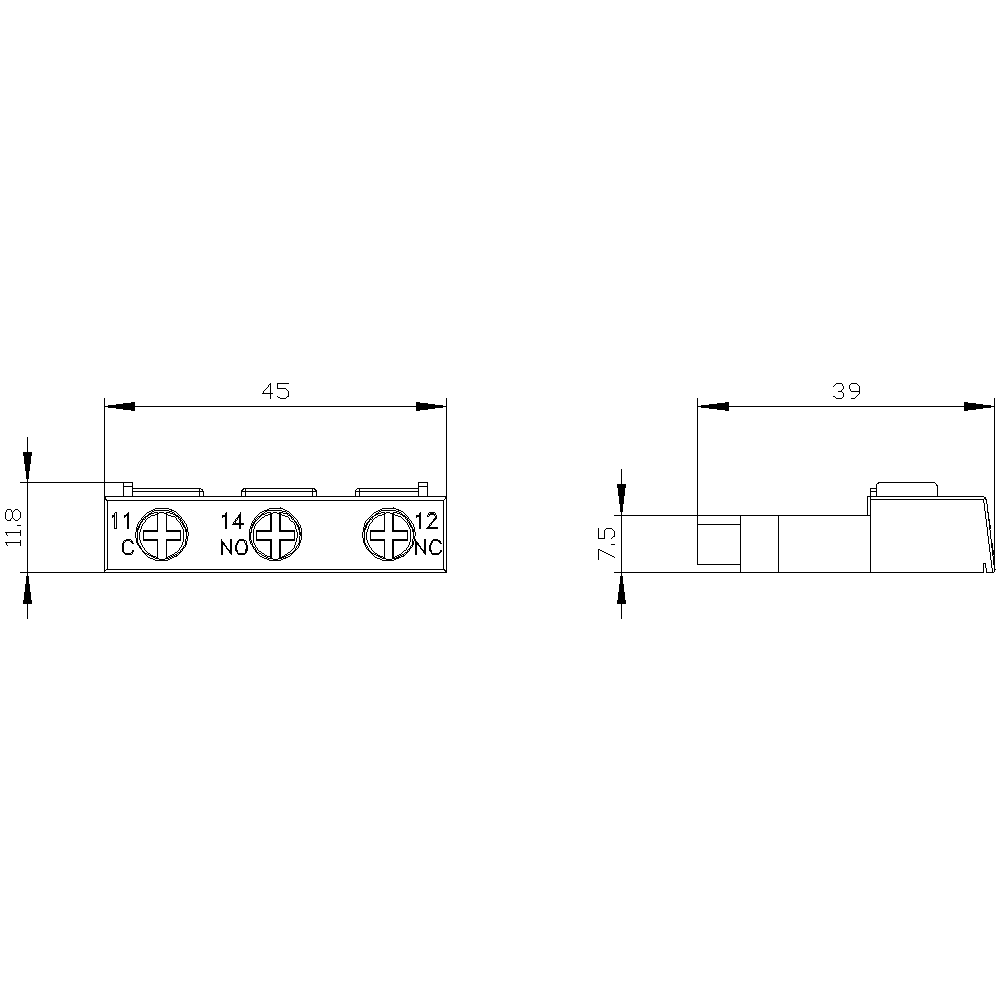

| Dimensions of product | |
| Weight | 0,016 |
