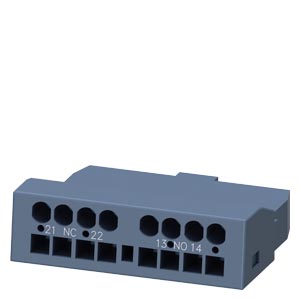

AUXILIARY SWITCH TRANSVERSE 1 NO+1 NC SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod produs: 3RV2901-2E
Alte coduri:
upc: 662643924800
Descriere
Auxiliary switch transverse 1 NO+1 NC
Spring-type terminal for circuit breaker 3RV2, designed for a simple, efficient, and always up-to-date SIRIUS modular system.
Technical details:
- Type: Auxiliary switch

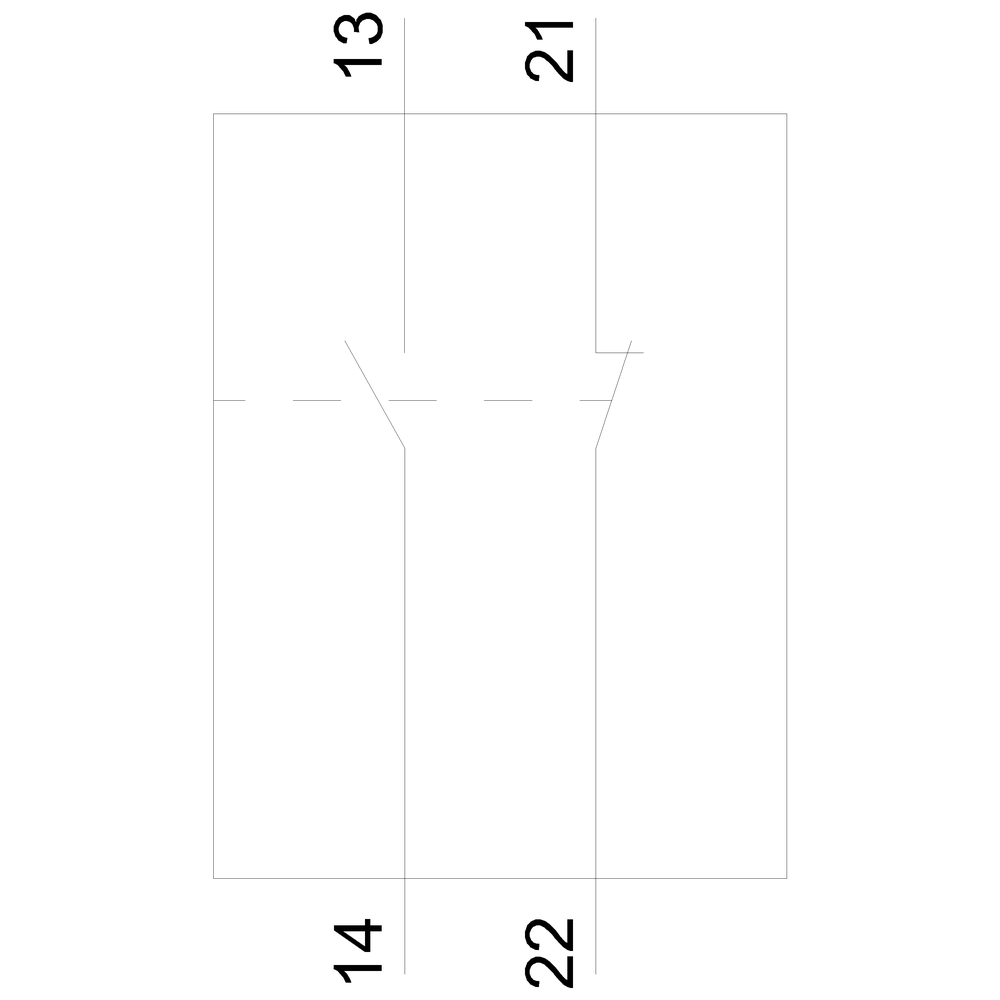

- Contacts: 1 NO + 1 NC
- Terminal type: Spring-type
- Compatible with: Circuit breaker 3RV2
Customer benefits:
- Simple, efficient operation
- Always up to date with SIRIUS modular system
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Model | Clip-on |
| Lamp holder | None |
| Number of fault-signal switches | 0 |
| Electrical | |
| Rated operation current Ie at AC-15, 230 V | 0.5 |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Spring clamp connection |
| Number of contacts as normally open contact | 1 |
| Mounting/installation | |
| Mounting method | Other |
| Package 1 | |
| weight | 0,017 |
| length | 0,043 |
| width | 0,035 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209790933 |
| Dimensions of product | |
| Weight | 0,017 |
