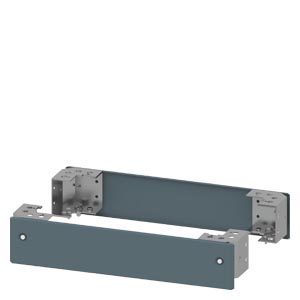

Bases with cover H: 100 mm W: 600 mm The SIVACON S4 power distribution board is an efficient system consisting of an enclosure and SENTRON components. Key features of the Siemens SIVACON power distribution boards: 1. SIMARIS configuration software allows more reliable planning and saves times for costing quotes and for plant documentation. 2. An efficient ventilation system tailored to the components prevents hot spots and a build-up of heat during operation, reduces derating and ensures permanent plant availability. 3. The form of internal separation up to 4b can be effectively achieved with standard components. 4. The design of the SIVACON S4 power distribution board simplifies device connection and installation. 5. Adjustable device holders offer a maximum range of applications with minimal block variance, for example the choice of operating mechanism and switching device installation type. 6. The SIVACON S4 power distribution board flexible manufacturing concept is certified in accordance with ISO 9001 and allows implementation of prefabricated solutions in various stages of development (with or without copper versions as required) with very short lead times.
Documente
Specificatii
| Operating conditions | |
| Max. load capacity | - |
| Measurements | |
| Depth | - |
| Height | 100 |
| Width | 600 |
| Suitable for enclosure building depth | - |
| Suitable for enclosure building width | 600 |
| Application | |
| Suitable for aeration/de-aeration | No |
| Suitable for cable patch | Yes |
| Suitable for outdoor set-up | No |
| Model/type | |
| Model | Base complete |
| Other | |
| Impact strength | - |
| Colour | |
| RAL-number (similar) | 5020 |
| Colour | Other |
| Material | |
| Material | Steel |
| Package 1 | |
| weight | 5,174 |
| length | 0,61 |
| width | 0,18 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4042948160640 |
| Dimensions of product | |
| Weight | 5,174 |
