BASIC SWITCH FOR POSITION SWITCH 3SE51 METAL ENCLOSURE, ACCORDING TO EN 50041 DEVICE CONNECTION 1 X
Cod produs: 3SE5112-0CA00
Descriere

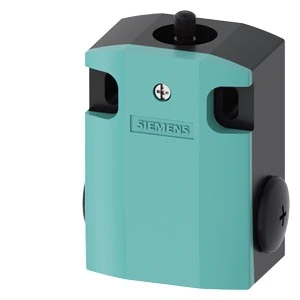

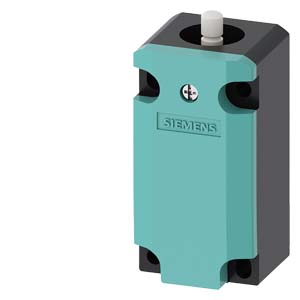

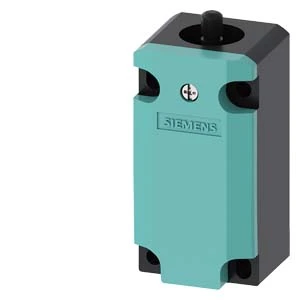

Basic switch for position switch 3SE51

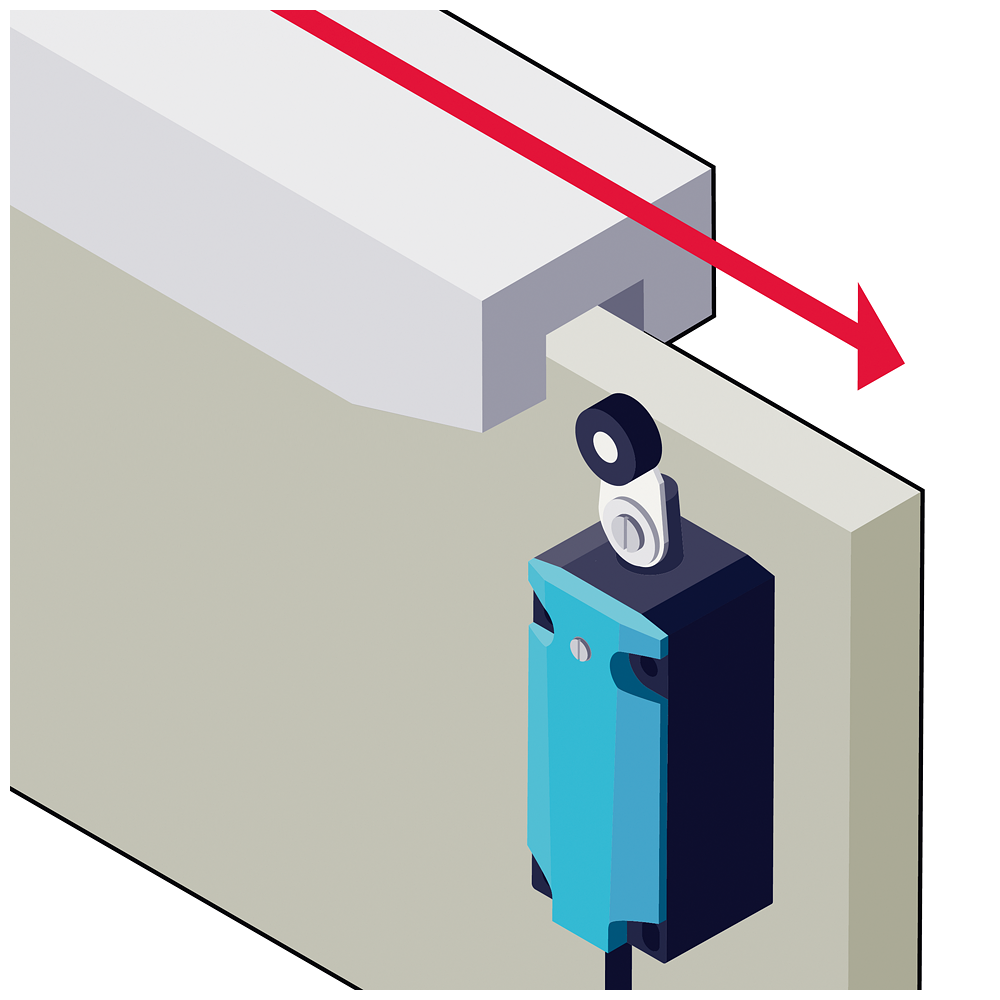

The 3SE51 is a basic switch designed for position sensing of machine parts and monitoring of protection equipment.
Technical details:
- Metal enclosure, according to EN 50041
- Device connection 1 x (M20 x 1.5)

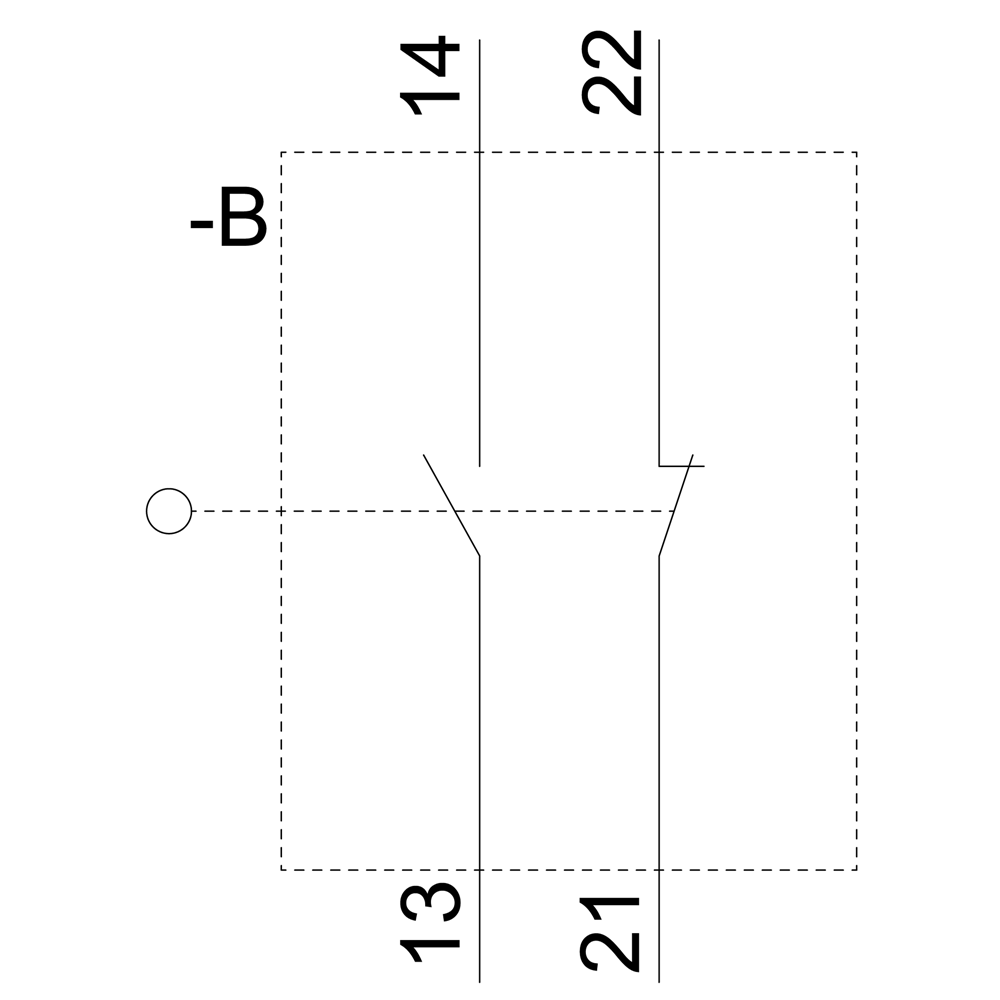

- 1 NO/1 NC quick action contacts without actuator head
- Operating points and mounting in accordance with EN 50047 and EN 50041
- Worldwide approval (IEC, UL)
- Meets highest safety requirements specified by PL e or SIL 3
- Integrated ASIsafe electronics requires low current input

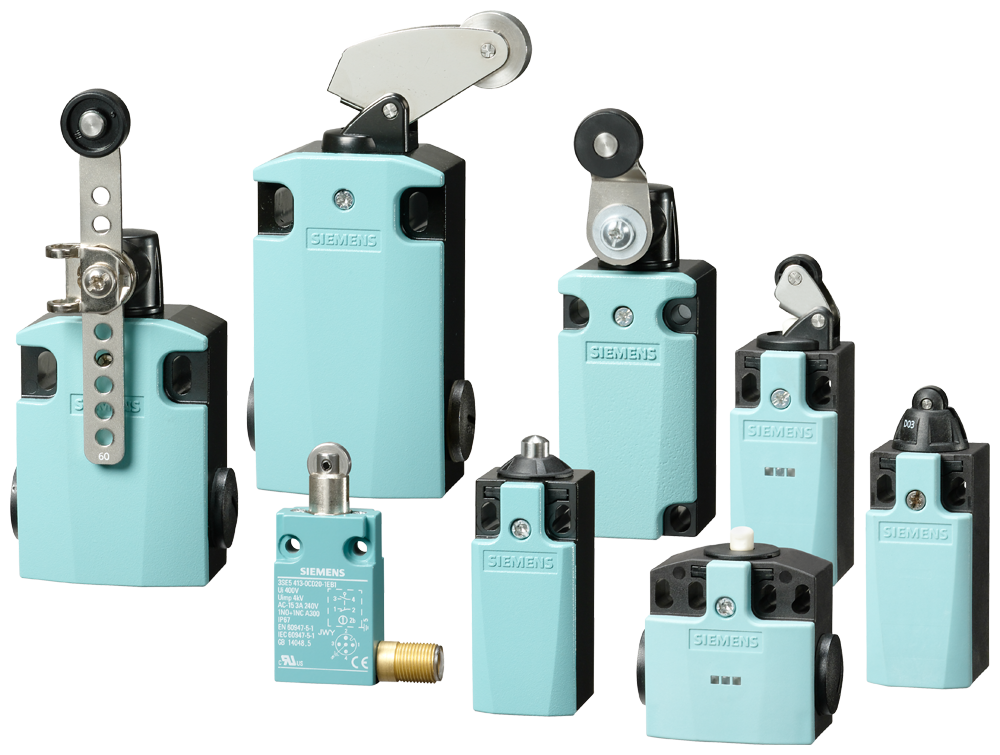

- Various enclosure sizes available in plastic or metal, or compact design
- Some versions optionally available with LED status display and M12 plug
- 3SF1 series with direct connection to AS-Interface bus system
Customer benefits:
- Modular design allows a host of variants with a small number of bearing types
- Wide variety of plug-in connectors and rollers meets everyday industrial requirements
- LEDs indicate the current state of the device
- Quick-connect technology reduces connection time significantly
- Availability of actuator heads and connection accessories for customization
- Ensured safety in compliance with SIRIUS standards
Disclaimer: Generated by AI.
Documente
Specificatii
| Communication | |
| Type of interface for safety communication | None |
| Type of interface | None |
| Model/type | |
| Switching function | Quick-break switch |
| Type of control element | Other |
| With status indication | No |
| Construction type housing | Cuboid |
| Protection | |
| Degree of protection (NEMA) | 12 |
| Degree of protection (IP) | IP66/IP67 |
| Explosion safety category for dust | None |
| Explosion safety category for gas | None |
| Electrical | |
| Rated operation current Ie at AC-15, 24 V | 6 |
| Rated operation current Ie at AC-15, 125 V | 6 |
| Rated operation current Ie at DC-13, 24 V | 3 |
| Rated operation current Ie at DC-13, 125 V | 0.55 |
| Rated operation current Ie at AC-15, 230 V | - |
| Rated operation current Ie at DC-13, 230 V | - |
| Setting/control | |
| Alignment of the control element | Roller cam straight |
| Measurements | |
| Height of sensor | 37.3 |
| Width sensor | 40 |
| Length of sensor | 85.7 |
| Diameter sensor | - |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 1 |
| Type of electric connection | Other |
| Number of safety auxiliary contacts | 1 |
| Output electronic | - |
| Options | |
| Forced opening | Yes |
| Switching function latching | No |
| Material | |
| Coating housing | Lacquered |
| Housing material | Metal |
| Application | |
| Suitable for safety functions | Yes |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Package 1 | |
| weight | 0,297 |
| length | 0,042 |
| width | 0,045 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209692022 |
| Dimensions of product | |
| Weight | 0,297 |
