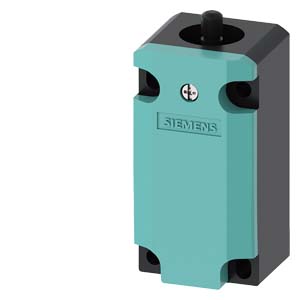

BASIC SWITCH WITH INCREASED CORROSION PROTECTION FOR POSITION SWITCH METAL ENCLOSURE, ACCORDING TO E

SIRIUS 3SE5

Basic switch with increased corrosion protection for position sensing of machine parts and position monitoring of protection equipment.

Technical details:

• Metal enclosure, according to EN 50041
• Device connection 1 x (M20 x 1.5)

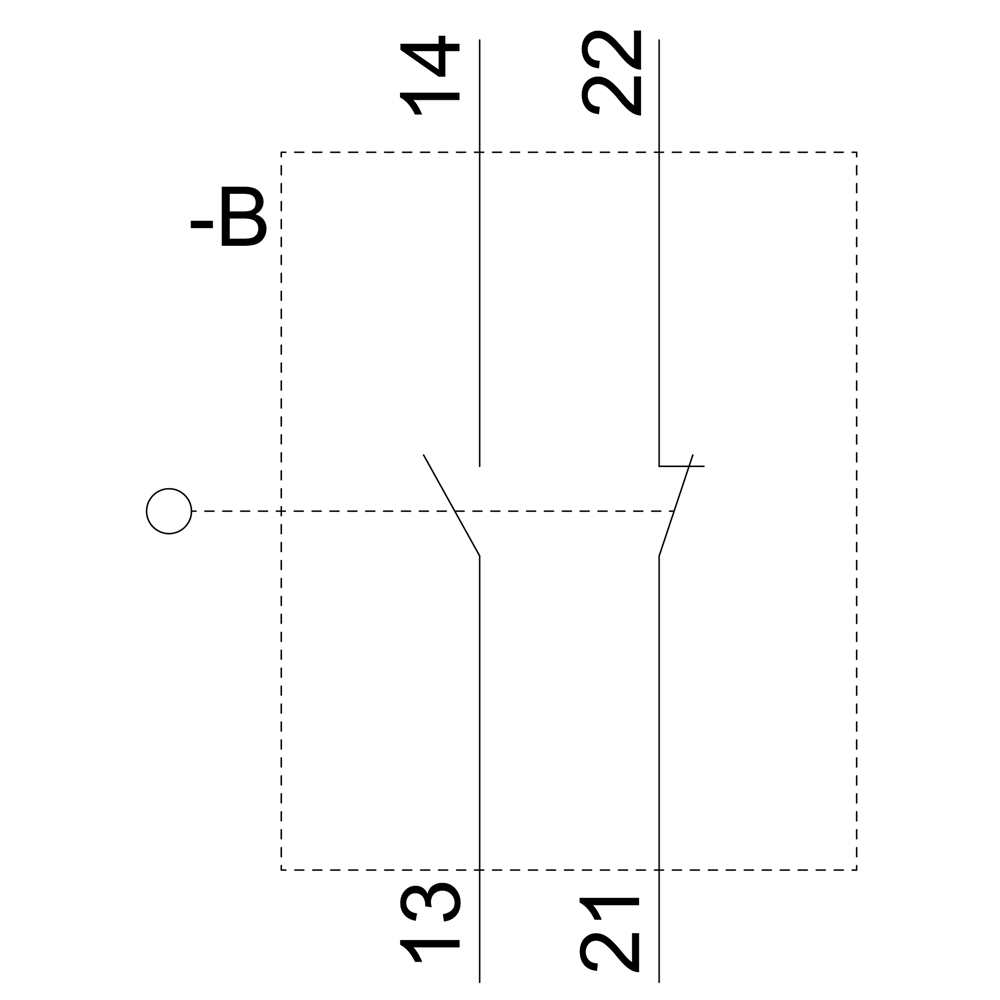

• 1 NO/1 NC quick action contacts without actuator head
• Mechanical safety switches
• Operating points and mounting in accordance with EN 50047 and EN 50041
• Worldwide approval (IEC, UL)
• Meets highest safety requirements specified by PL e or SIL 3
• Integrated ASIsafe electronics requires a low current input
• Various enclosure sizes, with different contacts, available in plastic or metal, or compact design
• Some versions optionally available with an LED status display and M12 plug
• 3SF1 series with direct connection to the AS-Interface bus system

Customer benefits:

• Modular design permits a host of variants with a small number of bearing types
• Wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry
• LEDs indicate the current state of the device
• Quick-connect technology reduces the time required for connection considerably
• Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available
• Safety is a SIRIUS business
