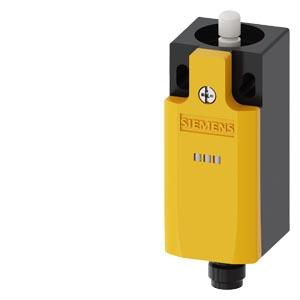

BASIC SWITCH WITHOUT ACTUATOR HEAD PLASTIC ENCLOSURE, EN 50047 ASISAFE INTEGRATED AS-I STATUS: 1:F-I
Cod produs: 3SF1234-1KC05-1BA1
Descriere

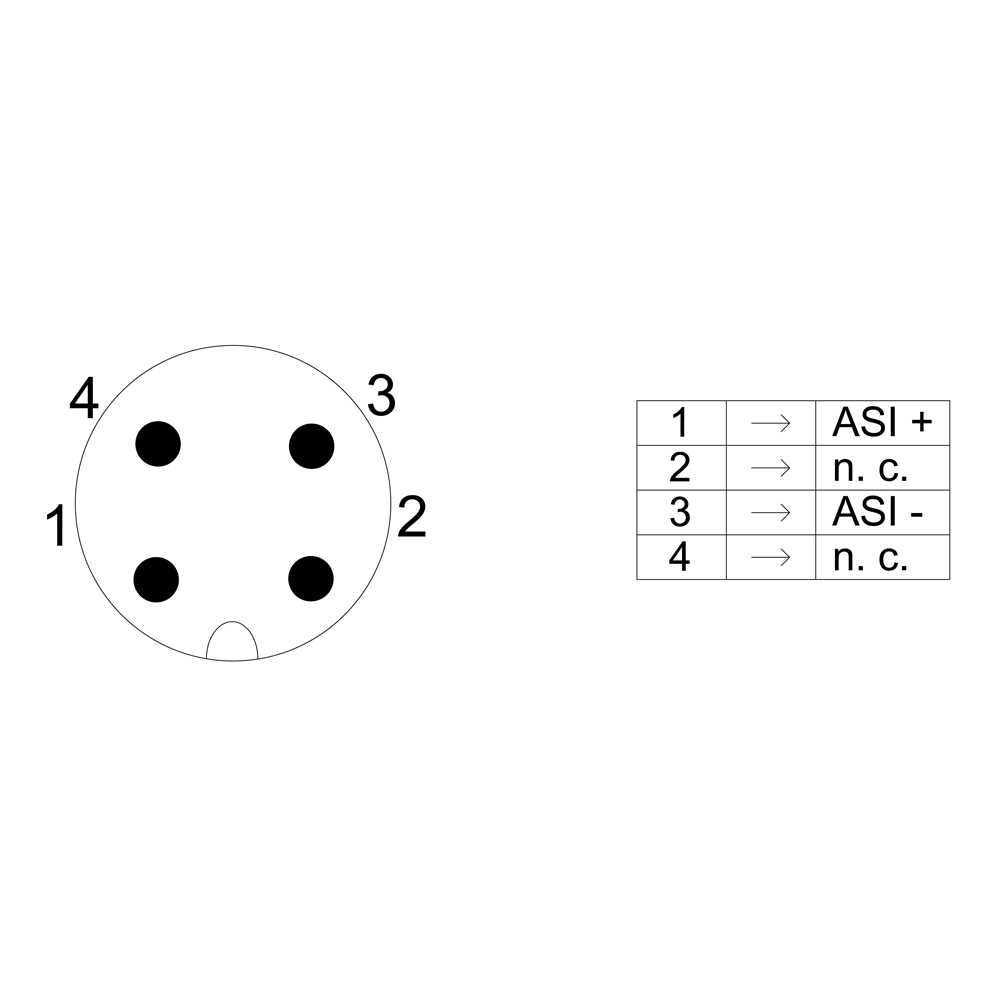

Basic switch without actuator head Plastic enclosure, EN 50047 ASIsafe integrated AS-i status: 1:F-IN1, 2: F-IN2 3:AS-i/FAULT Slow-action contacts 2 NC with M12 connector 4-pole Channel 1 to NC, Channel 2 to NC Mechanical safety switches SIRIUS 3SF12 for position monitoring of movable protective devices with direct connection to the AS-interface bus system. Thanks to their integrated ASIsafe electronics, which require only minimal current, the mechanical safety switches have a compact design. 3D-coded actuators guarantee a high level of tamper protection. LEDs indicate the current state of the device. The switches can be used for the highest safety requirements according to PL e or SIL 3. Various enclosure sizes are available in plastic or metal. In addition, versions are available with separate actuator with tumbler, or as a safety hinge switch. The portfolio is completed by a series of devices with IP69K degree of protection. Depending on the design, actuator heads, separate actuators, plug-in connectors and other mounting/connection accessories are available. Safety is a SIRIUS business.
Documente
Specificatii
| Communication | |
| Type of interface for safety communication | Other |
| Type of interface | - |
| Model/type | |
| Switching function | Slow-action switch |
| Type of control element | - |
| With status indication | Yes |
| Construction type housing | Cuboid |
| Protection | |
| Degree of protection (NEMA) | - |
| Degree of protection (IP) | IP65 |
| Explosion safety category for dust | - |
| Explosion safety category for gas | - |
| Electrical | |
| Rated operation current Ie at AC-15, 24 V | - |
| Rated operation current Ie at AC-15, 125 V | - |
| Rated operation current Ie at DC-13, 24 V | - |
| Rated operation current Ie at DC-13, 125 V | - |
| Rated operation current Ie at AC-15, 230 V | - |
| Rated operation current Ie at DC-13, 230 V | - |
| Setting/control | |
| Alignment of the control element | Roller cam straight |
| Measurements | |
| Height of sensor | 33 |
| Width sensor | 31 |
| Length of sensor | 89.7 |
| Diameter sensor | - |
| Connection | |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as normally closed contact | 2 |
| Type of electric connection | - |
| Number of safety auxiliary contacts | 2 |
| Output electronic | - |
| Options | |
| Forced opening | Yes |
| Switching function latching | No |
| Material | |
| Coating housing | - |
| Housing material | Plastic |
| Application | |
| Suitable for safety functions | Yes |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Package 1 | |
| weight | 0,09 |
| length | 0,1665 |
| width | 0,056 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209695276 |
| Dimensions of product | |
| Weight | 0,090 |
