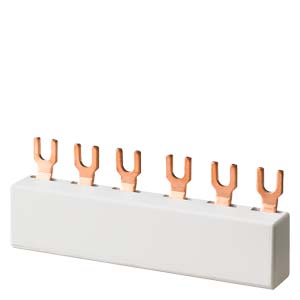

Busbar, 63 A 3-pole modular width 15 mm Fork design for 2 devices Busbar SENTRON 5ST2 as additional components for residual current devices and miniature circuit breakers. These additional components can be mounted universally. They are easy and convenient to install and connect. Thanks to the standard touch protection, safety is reliably ensured during installation. Optimized technology for your safety - only from Siemens.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Measurements | |
| Length | 86 |
| Height | - |
| Width | - |
| Model/type | |
| Model | Lamellated |
| Options | |
| Flexible | No |
| Electrical | |
| Rated current In | 63 |
| Material | |
| Surface protection | Untreated |
| Package 1 | |
| weight | 0,038 |
| length | 0,127 |
| width | 0,073 |
| qmax | 10 |
| qmin | 10 |
| um | PA |
| gtin | 4001869422350 |
| Dimensions of product | |
| Weight | 0,038 |
