Descriere

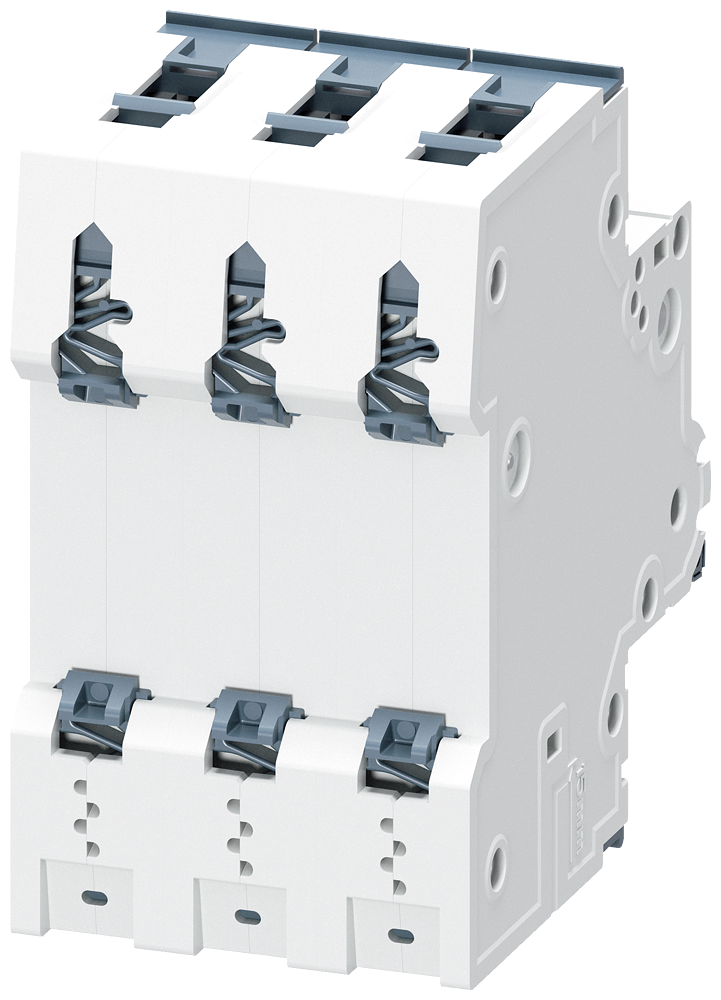

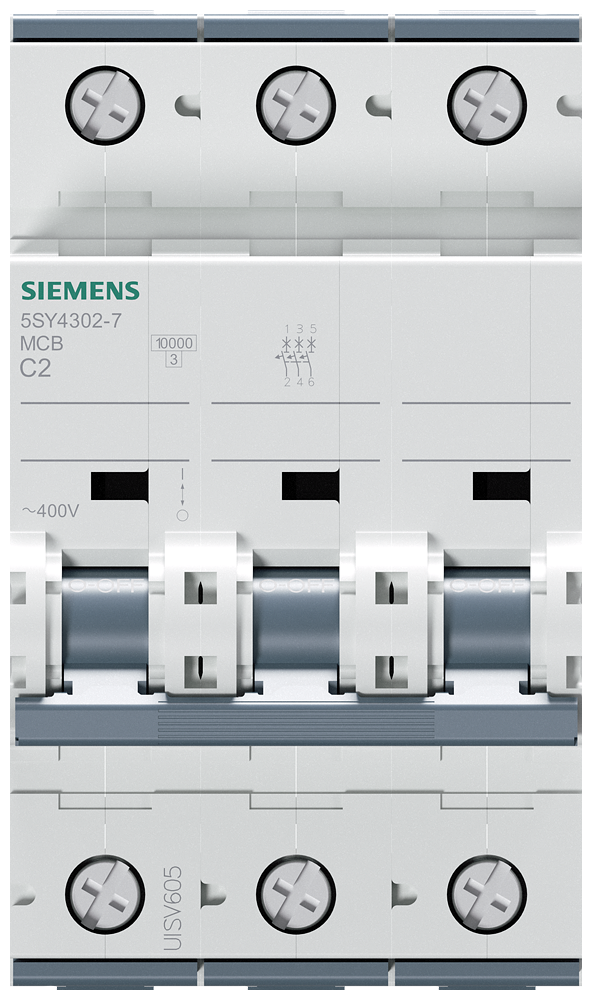

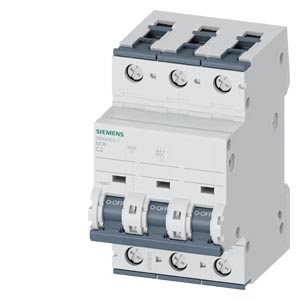

Miniature circuit breaker 400 V 10kA, 3-pole, C, 2A, D=70 mm Miniature circuit breaker SENTRON for fail-safe short-circuit and overload protection for residential and non-residential buildings and special industrial applications. Assembly and disassembly of the device without tools using a double slide. Any combination of conductors and busbars thanks to dual-chamber terminals. Simple wiring of the infeed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions. All accessories can be used as standard for all 5SY miniature circuit breakers. Simply safe with the protection devices from SENTRON.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Model/type | |
| Number of protected poles | 3 |
| Number of poles (total) | 3 |
| Electrical | |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 35 |
| Rated insulation voltage Ui | 440 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 10 |
| Rated voltage | 400 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 35 |
| Current limiting class | 3 |
| Overvoltage category | 3 |
| Voltage type | AC |
| Power loss | 3.6 |
| Rated current | 2 |
| Release characteristic | C |
| Rated impulse withstand voltage Uimp | 4 |
| Options | |
| Additional equipment possible | Yes |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Measurements | |
| Width in number of modular spacings | 3 |
| Built-in depth | 70 |
| Operating conditions | |
| Ambient temperature during operating | -40 |
| Connection | |
| Connectable conductor cross section multi-wired | 0.75 |
| Connectable conductor cross section solid-core | 0.75 |
| Other | |
| Pollution degree | 3 |
| Frequency | 50 |
| Mounting/installation | |
| Flush-mounted installation | No |
| Package 1 | |
| weight | 0,468 |
| length | 0,094 |
| width | 0,058 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869181882 |
| Package 2 | |
| volume | 0,026 |
| weight | 19,46 |
| length | 0,44 |
| width | 0,325 |
| qmax | 40 |
| qmin | 40 |
| um | CT |
| gtin | 4001869181882 |

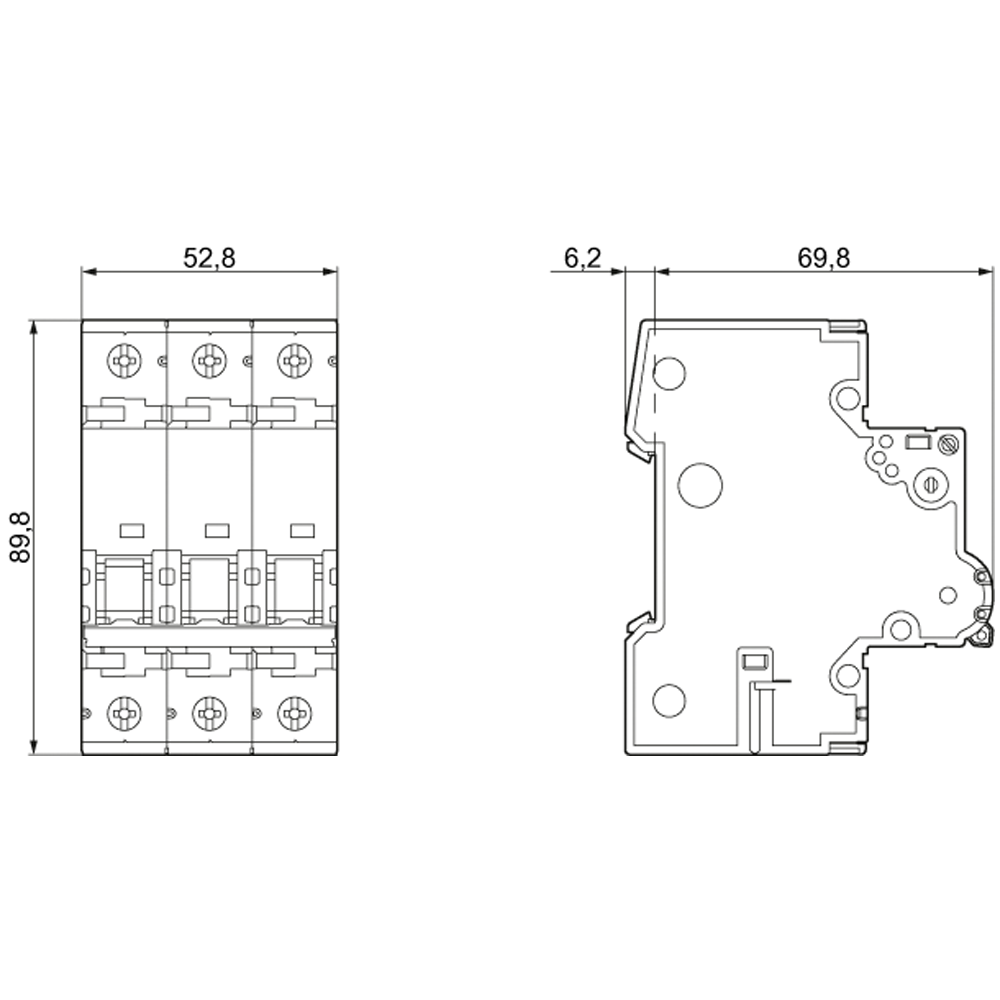

| Dimensions of product | |
| Weight | 0,468 |
Accesorii

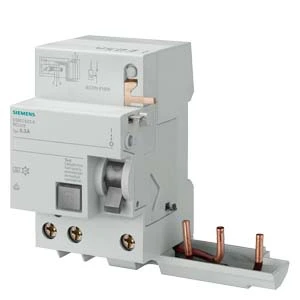

RC UNIT FOR 5SY, 3-POLE, TYPE A, SHORT-TIME DELAYED, IN: 40 A, 30 MA, UN AC: 400V
