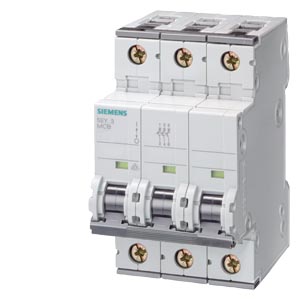

Miniature circuit breaker 400 V D=70 mm 25 kA according to EN 60947-2, 3P, C63 Miniature circuit breaker SENTRON for fail-safe short-circuit and overload protection for residential and non-residential buildings and special industrial applications. Assembly and disassembly of the device without tools using a double slide. Any combination of conductors and busbars thanks to dual-chamber terminals. Simple wiring of the infeed through the rear busbar. The 5SY miniature circuit breakers are available in 1-, 2-, 3-, 4-pole and 1+N- and 3+N-pole versions. All accessories can be used as standard for all 5SY miniature circuit breakers. Simply safe with the protection devices from SENTRON.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Overvoltage category | 3 |
| Voltage type | AC |
| Rated impulse withstand voltage Uimp | 4 |
| Power loss | 18 |
| Rated insulation voltage Ui | 440 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | - |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | - |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V | 25 |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V | 25 |
| Release characteristic | C |
| Rated voltage | 400 |
| Rated current | 63 |
| Current limiting class | 3 |
| Other | |
| Pollution degree | 3 |
| Frequency | 50 |
| Connection | |
| Connectable conductor cross section multi-wired | 0.75 |
| Connectable conductor cross section solid-core | 0.75 |

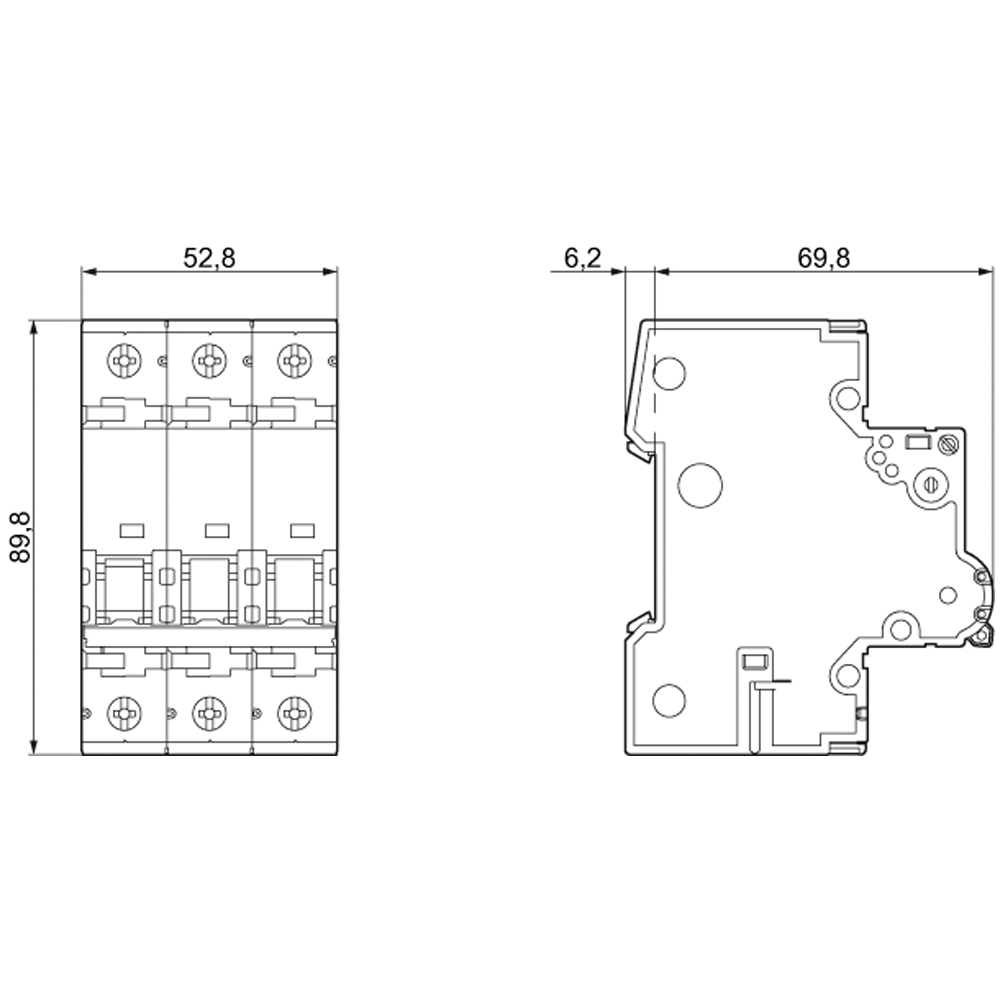

| Measurements | |
| Width in number of modular spacings | 3 |
| Built-in depth | 70 |
| Model/type | |
| Number of poles (total) | 3 |
| Number of protected poles | 3 |
| Options | |
| Additional equipment possible | Yes |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Explosion-proof | No |
| Mounting/installation | |
| Flush-mounted installation | No |
| Operating conditions | |
| Ambient temperature during operating | -25 |
| Package 1 | |
| weight | 0,508 |
| length | 0,094 |
| width | 0,058 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4001869263779 |
| Dimensions of product | |
| Weight | 0,508 |
Accesorii

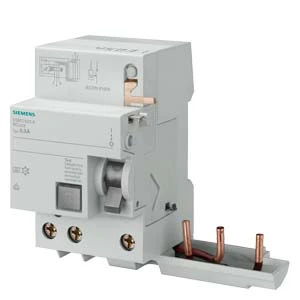

RC UNIT FOR 5SY, 3-POLE, TYPE A, SHORT-TIME DELAYED, IN: 63 A, 30 MA, UN AC: 400V
Cod: 5SM2335-6KK01
Siemens
RC UNIT FOR 5SY, 3-POLE, TYPE A, SHORT-TIME DELAYED, IN: 63 A, 30 MA, UN AC: 400V
Cod: 5SM2335-6KK01
Siemens
