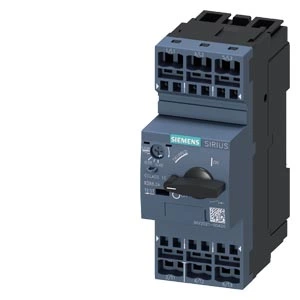

CIRCUIT BREAKER SIZE S0 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 0.45...0.63 A N-RELEASE 8.2 A SCREW
Cod produs: 3RV2021-0GA10
Descriere
Sirius 3RV2 Circuit Breaker
The SIRIUS 3RV2 circuit breaker is designed for motor protection, ensuring reliable shutdown during short circuits and protecting loads against overload.
Technical details:
- Circuit breaker size: S0
- CLASS 10
- A-release: 0.45...0.63 A
- N-release: 8.2 A
- Screw terminal
- Standard switching capacity
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
- Device versions available for motor protection
- Maintenance-free and vibration-proof connection
- Integral auxiliary switch option available
- Range of accessories standardized for all sizes
- Compatible with SIRIUS 3RV29 infeed system
- Replaces the 3RV1 series
Customer benefits:
- Reliable protection against short circuits and overloads
- Optimized for use in load feeders and IE3/IE4 motors
- Compact and climate-proof design with low heat loss
- Fast connection options available: screw or spring-type terminals
- Simple and efficient integration into the modular SIRIUS system
Disclaimer: Generated by AI.
Documente
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 0.1 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 0.2 |
| Rated operating voltage | 690 |
| Overload release current setting | 0.45 |
| Power loss | 7.25 |
| Rated permanent current Iu | 0.63 |
| Adjustment range undelayed short-circuit release | 8.2 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |
| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 97 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | No |
| Package 1 | |
| weight | 0,289 |
| length | 0,102 |
| width | 0,049 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209902800 |
| Dimensions of product | |
| Weight | 0,289 |
