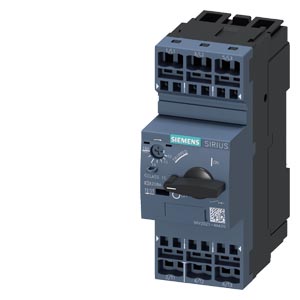

CIRCUIT BREAKER SIZE S0 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 10...16 A N-RELEASE 208 A SPRING-TY
Cod produs: 3RV2021-4AA20
Alte coduri:
upc: 662643924299
Descriere
Circuit breaker size S0
This circuit breaker is designed for motor protection, ensuring reliable shutdown during short circuits and protecting systems against overload.
Technical details:
- CLASS 10 A-release 10...16 A N-release 208 A
- Spring-type terminal
- Standard switching capacity
- Circuit breaker SIRIUS 3RV2
- Low heat loss, compact and climate-proof
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
- Device versions for motor protection, plant protection, and more
- Screw or spring-type terminals for fast, maintenance-free connection
- Optional integral auxiliary switch
- Comprehensive range of standardized accessories
- Different energy infeed options available
- Replaces the 3RV1 series
Customer benefits:
- Reliable shutdown in the event of a short-circuit
- Protection against overload and safe isolation from the network
- Optimized for use in load feeders and for IE3/IE4 motors
- Efficient main circuit wiring with reduced complexity
- Simple and modular system always up to date
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 4 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 55 |
| Rated operation power at AC-3, 400 V | 7.5 |
| Rated operating voltage | 690 |
| Overload release current setting | 10 |
| Power loss | 9.25 |
| Rated permanent current Iu | 16 |
| Adjustment range undelayed short-circuit release | 208 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |

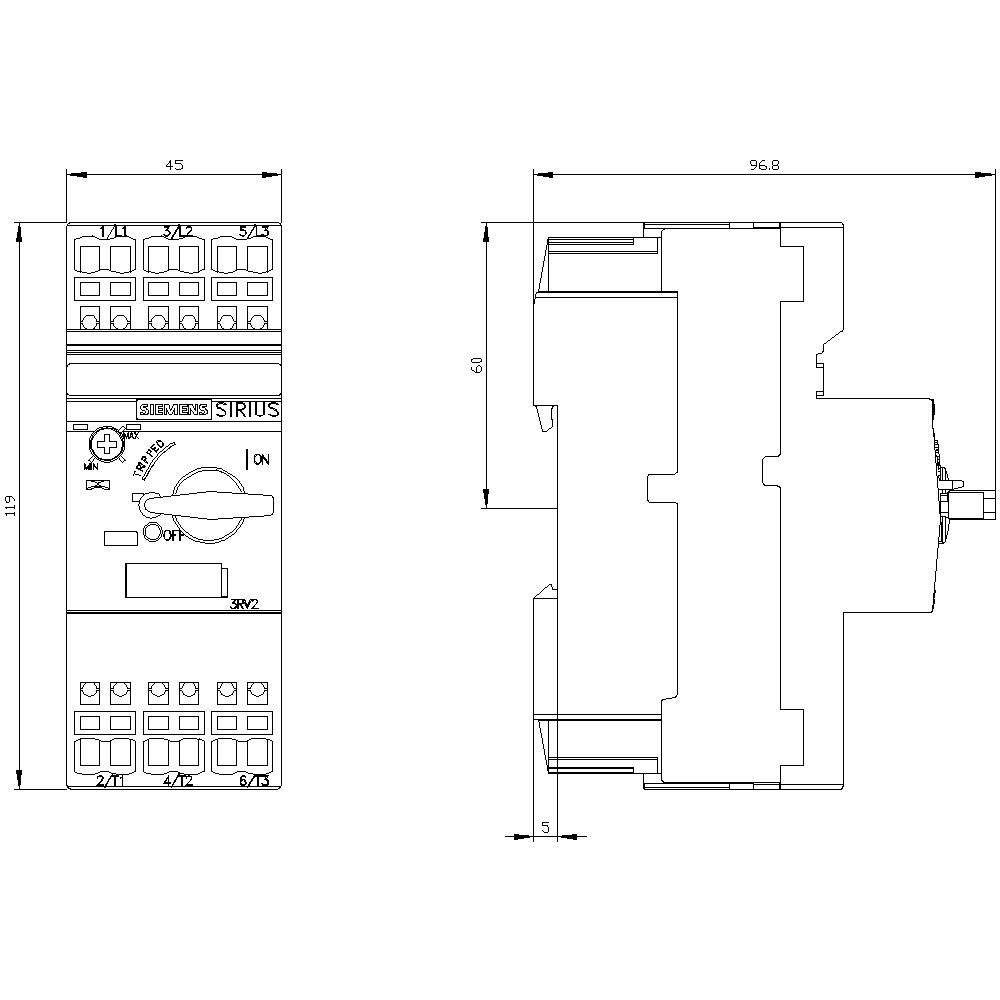

| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 119 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | No |
| Package 1 | |
| weight | 0,43 |
| length | 0,133 |
| width | 0,0525 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209724426 |
| Dimensions of product | |
| Weight | 0,43 |
