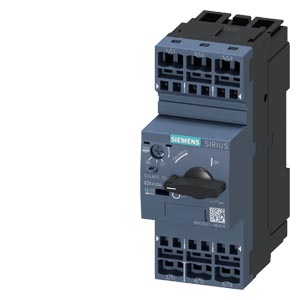

CIRCUIT BREAKER SIZE S0 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 27...32 A N-RELEASE 400 A SPRING-TY
Cod produs: 3RV2021-4EA20
Alte coduri:
upc: 662643924503
Descriere
Sirius 3RV2 Circuit Breaker
The circuit breaker size S0 provides reliable motor protection and isolation for systems against overload and short-circuits.
Technical details:
- Circuit breaker size S0 for motor protection
- CLASS 10 A-release 27...32 A
- N-release 400 A
- Spring-type terminal
- Standard switching capacity
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
- Available with screw or spring-type terminals
- Options for integral auxiliary switch
- Comprehensive range of accessories standardized for all sizes
- Replacement for 3RV1 series
Customer benefits:
- Reliable shutdown in the event of a short-circuit
- Protects loads and systems against overload
- Safe isolation of the system from the network
- Optimized for use in load feeders and with IE3/IE4 motors
- Low heat loss, compact and climate-proof design
- Fast, maintenance-free and vibration-proof connection
- Different energy infeed options reduce main circuit wiring
- Simple, efficient, and always up to date within the SIRIUS modular system
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 7.5 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 55 |
| Rated operation power at AC-3, 400 V | 15 |
| Rated operating voltage | 690 |
| Overload release current setting | 27 |
| Power loss | 13.25 |
| Rated permanent current Iu | 32 |
| Adjustment range undelayed short-circuit release | 400 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |

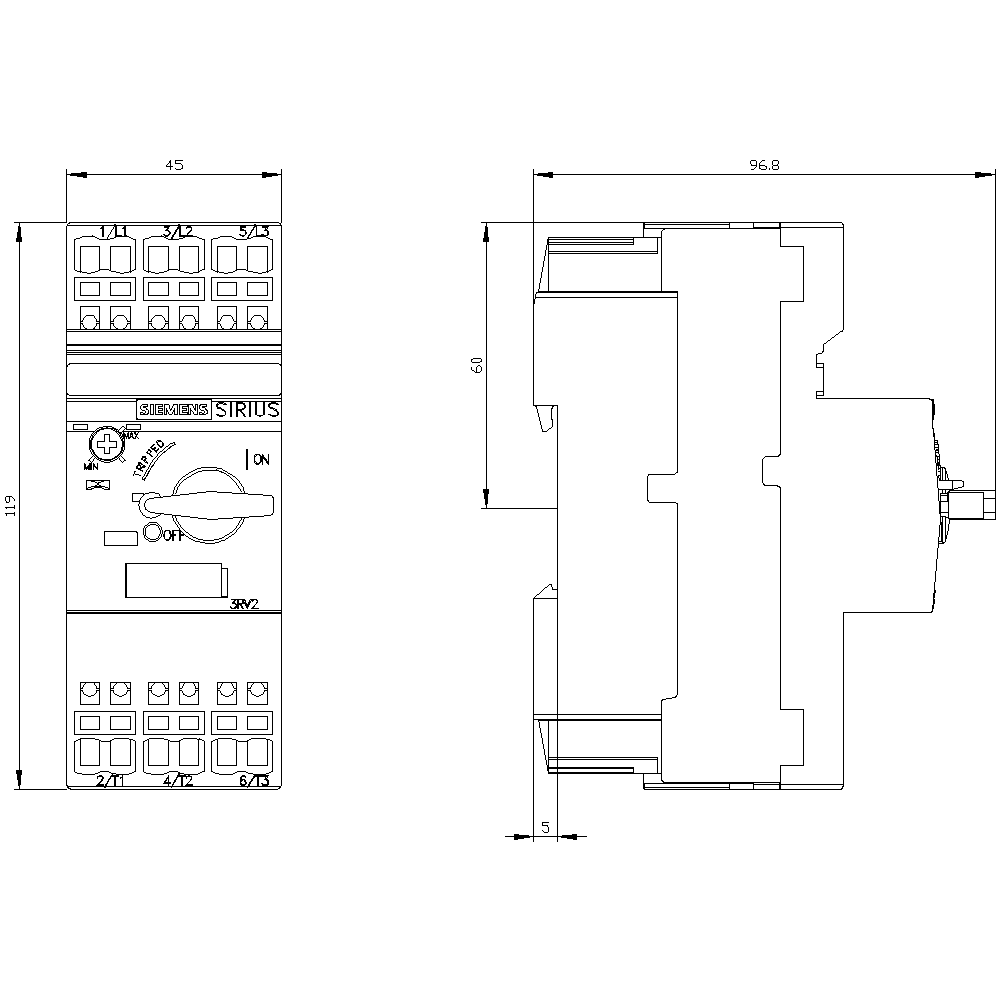

| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 119 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | No |
| Package 1 | |
| weight | 0,43 |
| length | 0,133 |
| width | 0,0525 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209724525 |
| Dimensions of product | |
| Weight | 0,43 |
