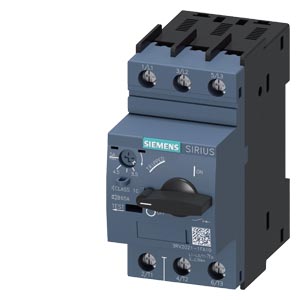

CIRCUIT BREAKER SIZE S0 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 3.5...5 A N RELEASE 65 A SCREW TERM
Cod produs: 3RV2021-1FA10
Alte coduri:
upc: 040892942224
Descriere
Circuit breaker size S0 for motor protection
This circuit breaker is designed for reliable motor protection and overload safety.
Technical details:
- CLASS 10 A-release 3.5...5 A N release 65 A screw terminal
- Standard switching capacity
- Circuit breaker SIRIUS 3RV2
- Optimized for use in load feeders and IE3/IE4 motors
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
- Available with screw or spring-type terminals
- Optionally with integral auxiliary switch
- Comprehensive range of accessories standardized for all sizes
- Reduces main circuit wiring with different energy infeed options
- Replaces the 3RV1 series
Customer benefits:
- Reliable shutdown in the event of a short-circuit
- Protection against overload
- Safe isolation of the system from the network
- Low heat loss
- Maintenance-free and vibration-proof connection
- Simple and efficient modular system
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 1.1 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 1.5 |
| Rated operating voltage | 690 |
| Overload release current setting | 3.5 |
| Power loss | 7.25 |
| Rated permanent current Iu | 5 |
| Adjustment range undelayed short-circuit release | 65 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |
| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 97 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | No |
| Package 1 | |
| weight | 0,358 |
| length | 0,102 |
| width | 0,049 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209902879 |
| Dimensions of product | |
| Weight | 0,358 |
Accesorii
LINK MODULE FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL FOR 3RV2.1/3RV2.2, AND 3RT2.2. AC OPERATION
Cod: 3RA2921-1AA00
Siemens
LINK MODULE FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL FOR 3RV2.1/3RV2.2-3RT2.2 DC OPERATION OR SO
Cod: 3RA2921-1BA00
Siemens
LABELING PLATES 20X7 MM TI - GRAY BOX CONTAINS 17 MATS ON MATS 20 LABELS PER MAT
Cod: 3RT2900-1SB20
Siemens
ADHESIVE LABELS 19X6 MM TITANIUM GRAY COMPRISES 10 SHEETS DIN A4 306 LABELS EACH = 3060 UNITS
Cod: 3RT2900-1SB60
Siemens
3-PHASE BUSBARS MODULAR SPACING 45 MM FOR 2 SWITCHES FORK SHAPE CONNECTIONS
Cod: 3RV1915-1AB
Siemens
3-PHASE BUSBARS MODULAR SPACING 45 MM FOR 3 SWITCHES FORK SHAPE CONNECTIONS
Cod: 3RV1915-1BB
Siemens
AUXILIARY SWITCH CAN BE MOUNTED ON THE SIDE 1 NO+1 NC SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-1A
Siemens
AUXILIARY SWITCH CAN BE MOUNTED ON THE SIDE 2 NO, SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-1B
Siemens
AUXILIARY SWITCH CAN BE MOUNTED ON THE SIDE 2 NC, SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-1C
Siemens
AUXILIARY SWITCH TRANSVERSE 1 NO+1 NC SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-1E
Siemens
LINK MODULE FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL FOR 3RV2.1/3RV2.2, AND 3RT2.2. AC OPERATION
Cod: 3RA2921-1AA00
Siemens
LINK MODULE FOR SCREW TERMINAL ELECTRICAL AND MECHANICAL FOR 3RV2.1/3RV2.2-3RT2.2 DC OPERATION OR SO
Cod: 3RA2921-1BA00
Siemens
LABELING PLATES 20X7 MM TI - GRAY BOX CONTAINS 17 MATS ON MATS 20 LABELS PER MAT
Cod: 3RT2900-1SB20
Siemens
ADHESIVE LABELS 19X6 MM TITANIUM GRAY COMPRISES 10 SHEETS DIN A4 306 LABELS EACH = 3060 UNITS
Cod: 3RT2900-1SB60
Siemens
3-PHASE BUSBARS MODULAR SPACING 45 MM FOR 2 SWITCHES FORK SHAPE CONNECTIONS
Cod: 3RV1915-1AB
Siemens
3-PHASE BUSBARS MODULAR SPACING 45 MM FOR 3 SWITCHES FORK SHAPE CONNECTIONS
Cod: 3RV1915-1BB
Siemens
AUXILIARY SWITCH CAN BE MOUNTED ON THE SIDE 1 NO+1 NC SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-1A
Siemens
AUXILIARY SWITCH CAN BE MOUNTED ON THE SIDE 2 NO, SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-1B
Siemens
AUXILIARY SWITCH CAN BE MOUNTED ON THE SIDE 2 NC, SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-1C
Siemens
AUXILIARY SWITCH TRANSVERSE 1 NO+1 NC SCREW TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-1E
Siemens
Produse similare
CIRCUIT BREAKER SIZE S0 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 3.5...5 A N RELEASE 65 A SCREW TERM
Cod: 3RV2021-1FA15
Siemens

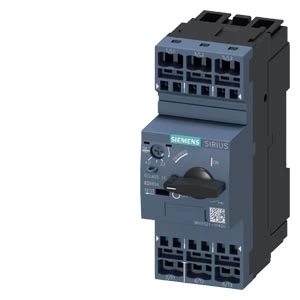

CIRCUIT BREAKER SIZE S0 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 3.5...5 A N RELEASE 65 A SPRING-TYP
