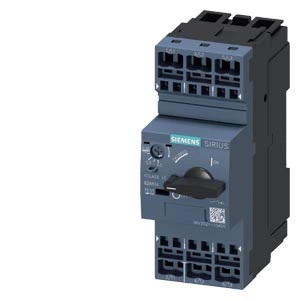

CIRCUIT BREAKER SIZE S0 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 4.5...6.3 A N-RELEASE 82 A SCREW TE
Cod produs: 3RV2021-1GA10
Alte coduri:
upc: 040892942231
Descriere
SIRIUS 3RV2 Circuit Breaker
The SIRIUS 3RV2 Circuit Breaker is designed for motor protection, providing reliable shutdown during short-circuit events and safeguarding against overloads.
Technical details:
- Circuit breaker size S0
- CLASS 10 A-release 4.5...6.3 A
- N-release 82 A
- Screw terminal
- Standard switching capacity
- Optimized for load feeders and IE3/IE4 motors
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applicable in hazardous areas (ATEX or IEC Ex)
- Device versions available for motor protection, plant protection, and more
- Fast, maintenance-free and vibration-proof connection
- Optional integral auxiliary switch
- Comprehensive range of standardized accessories
- Different energy infeed options available
- Replaces the 3RV1 series
Customer benefits:
- Reliable shutdown in the event of a short-circuit
- Protection of loads and system against overload
- Safe isolation of the system from the network
- Low heat loss for improved efficiency
- Simple and efficient modular system
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 1.5 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 2.2 |
| Rated operating voltage | 690 |
| Overload release current setting | 4.5 |
| Power loss | 7.25 |
| Rated permanent current Iu | 6.3 |
| Adjustment range undelayed short-circuit release | 82 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |
| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 97 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | No |
| Package 1 | |
| weight | 0,357 |
| length | 0,102 |
| width | 0,049 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209902886 |
| Dimensions of product | |
| Weight | 0,357 |
