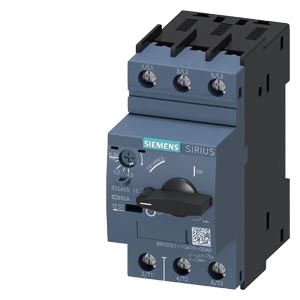

CIRCUIT BREAKER SIZE S0 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 4.5...6.3 A N-RELEASE 82 A SCREW TE

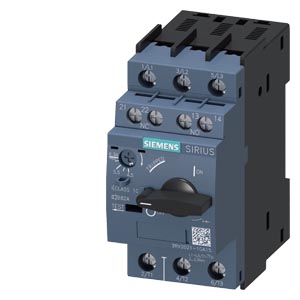

Circuit breaker frame size S0

The circuit breaker frame size S0 is designed for motor protection, providing reliable shutdown in the event of a short-circuit while protecting loads and systems against overload.

Technical details:

• Class 10 thermal release 4.5...6.3 A
• Short-circuit release 82 A
• Screw terminal standard

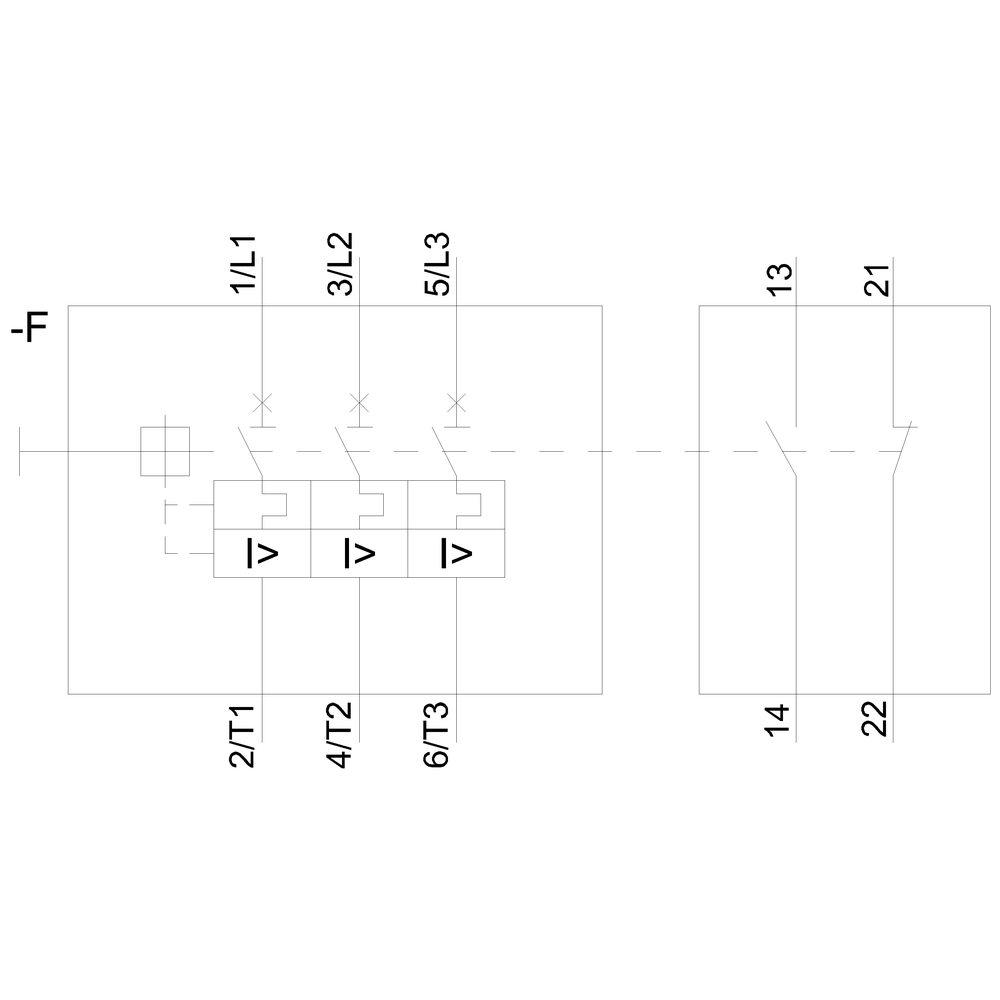

• Switching capacity with transverse auxiliary switch 1 NO+1 NC
• Model: SIRIUS 3RV2
• Optimized for use in load feeders and IE3/IE4 motors
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Available for motor protection, plant protection, short-circuit protection, transformer protection, and for use in IT networks

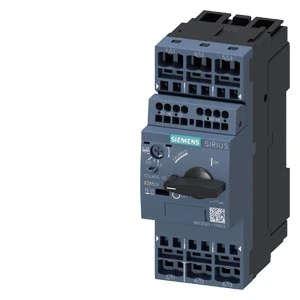

• Screw or spring-type terminals for fast, maintenance-free and vibration-proof connection
• Comprehensive range of accessories standardized for all sizes
• Use of different energy infeed options with SIRIUS 3RV29 infeed system
• Replaces the well-proven 3RV1 series

Customer benefits:

• Reliable shutdown in the event of a short-circuit
• Protection of loads and systems against overload
• Safe isolation of the system from the network
• Low heat loss and climate-proof design
• Simple and efficient with the SIRIUS modular system
