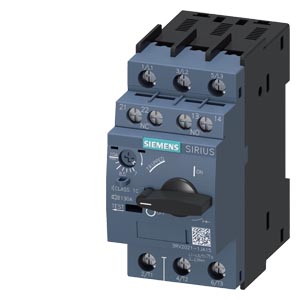

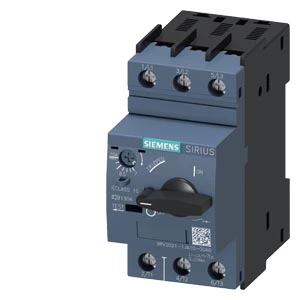

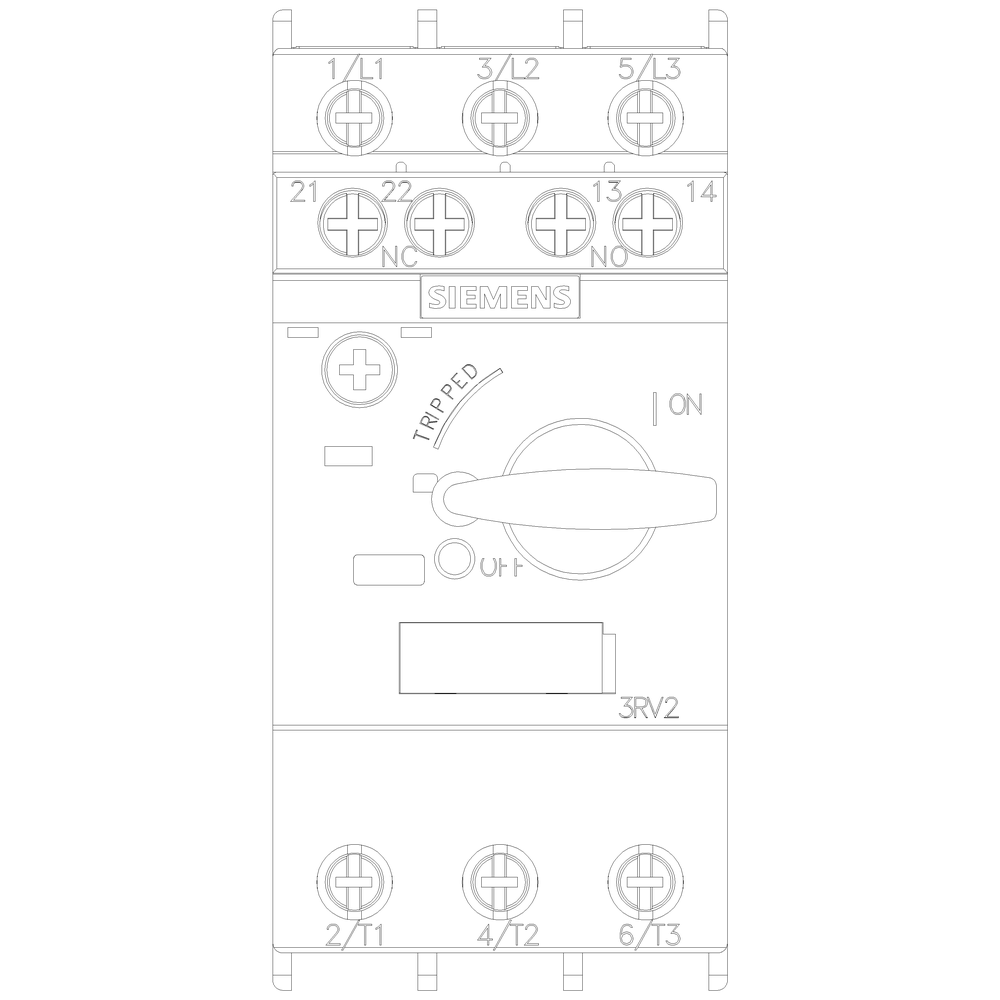

CIRCUIT BREAKER SIZE S0 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 7...10 A N RELEASE 130 A SCREW TERM

Circuit breaker frame size S0

Circuit breaker SIRIUS 3RV2 for motor protection ensures reliable shutdown in case of a short-circuit and protects loads and systems against overload.

Technical details:

• Frame size S0
• Class 10 thermal release 7...10 A
• Short-circuit release 130 A
• Screw terminal

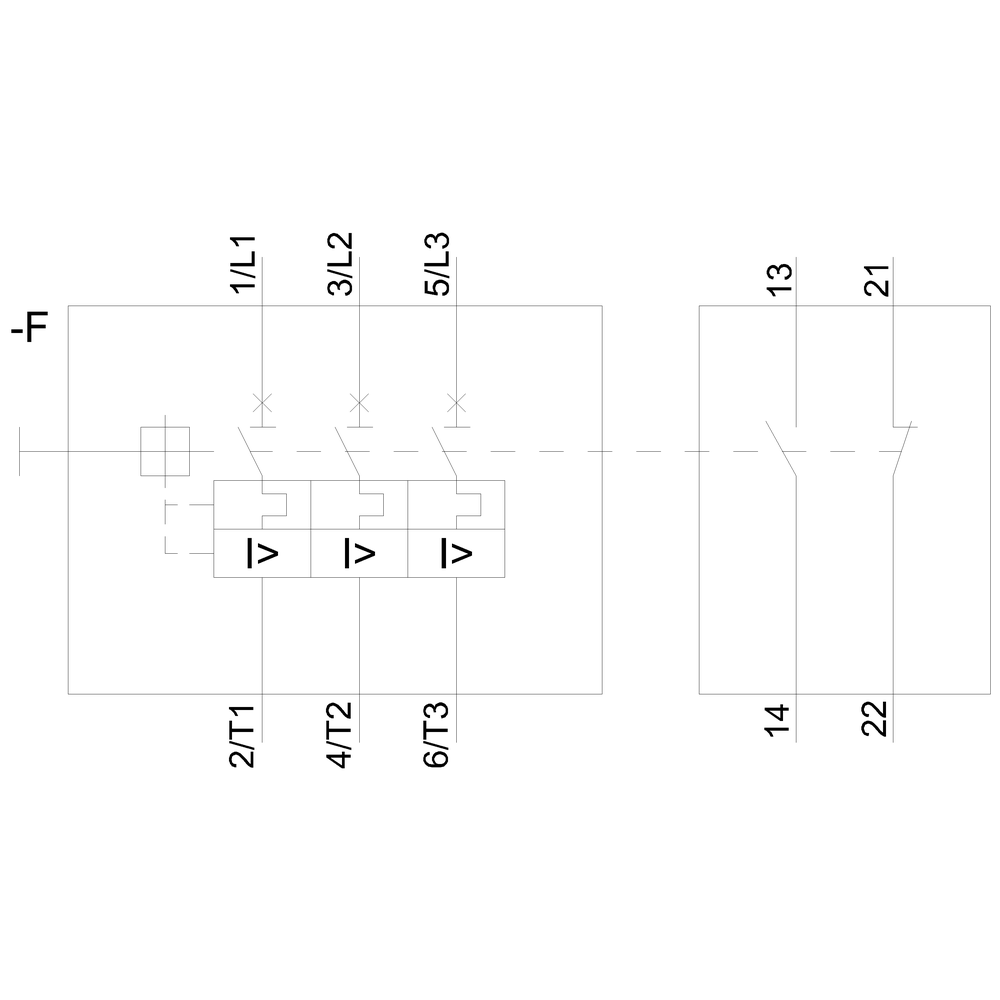

• Standard switching capacity with transverse auxiliary switch 1 NO+1 NC
• Optimized for IE3/IE4 motors
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches, and for use in IT networks

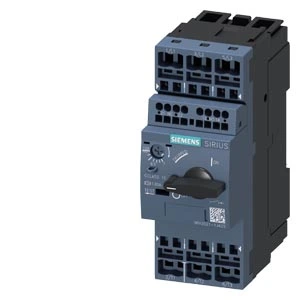

• Available with screw or spring-type terminals
• Optional integral auxiliary switch
• Comprehensive range of accessories standardized for all sizes
• Use of different energy infeed options
• Replaces the well-proven 3RV1 series

Customer benefits:

• Reliable protection against overload and short-circuit damage
• Low heat loss for efficient operation
• Compact and climate-proof design
• Fast, maintenance-free, and vibration-proof connection
• Simple and efficient modular system always up to date
