CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 0.45...0.63 A N-RELEASE 8.2 A SCRE

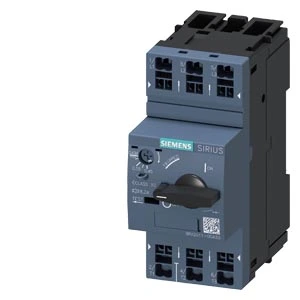

Circuit breaker size S00

Circuit breaker size S00 for motor protection offers reliable shutdown in case of short-circuits and overload protection.

Technical details:

• CLASS 10 A-release 0.45...0.63 A N-release 8.2 A
• Standard switching capacity
• Circuit breaker SIRIUS 3RV2
• Optimized for use in load feeders, as well as for IE3/IE4 motors
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Available versions for motor protection (also with overload relay function)
• Plant protection, short-circuit protection of starter combinations
• Transformer protection, as main and EMERGENCY OFF switches
• For use in IT networks
• Screw or spring-type terminals for fast, maintenance-free and vibration-proof connection
• Optionally with integral auxiliary switch
• Comprehensive range of standardized accessories
• Associated SIRIUS 3RV29 infeed system reduces main circuit wiring
• 3RV2 circuit breakers replace the well-proven 3RV1 series

Customer benefits:

• Reliable shutdown in the event of a short-circuit
• Protection against overload
• Safe isolation of the system from the network
• Low heat loss
• Compact and climate-proof design
• Simple, efficient and always up to date with the SIRIUS modular system
