CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 0.7...1 A N-RELEASE 13 A SCREW TER

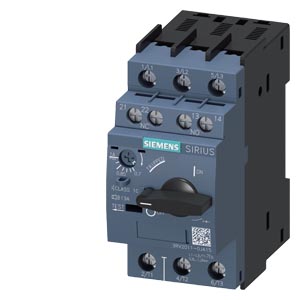

Circuit breaker frame size S00

The circuit breaker frame size S00 is designed for motor protection with reliable shutdown and overload protection features.

Technical details:

• Class 10 thermal release 0.7...1 A
• Short-circuit release 13 A
• Screw terminal

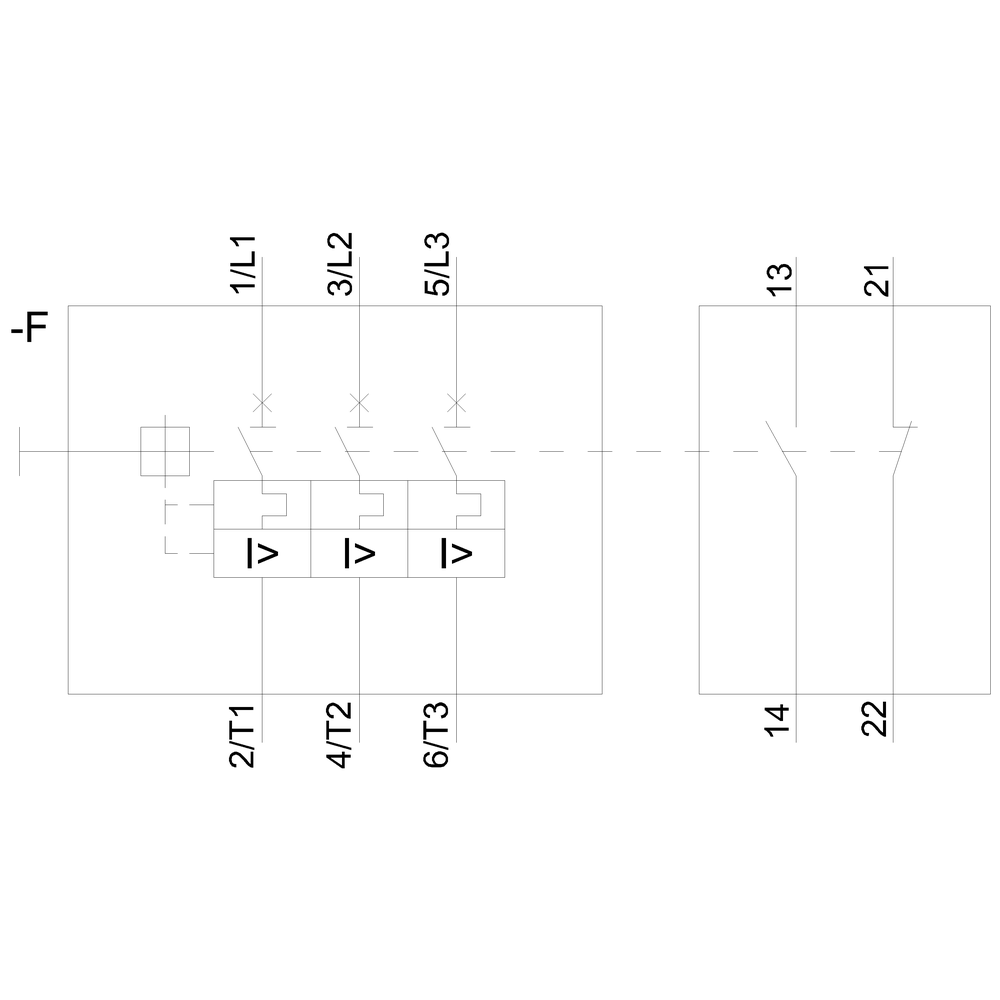

• Standard switching capacity with transverse auxiliary switch 1 NO+1 NC
• Device versions available for motor protection, plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches, and for use in IT networks
• Available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection
• Comprehensive range of accessories standardized for all sizes
• Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex)
• Replaces the well-proven 3RV1 series

Customer benefits:

• Optimized for use in load feeders and for IE3/IE4 motors
• Low heat loss and climate-proof design
• Integral auxiliary switch available
• Use of different energy infeed options reduces main circuit wiring
• Simple, efficient, and always up to date as part of the SIRIUS modular system
