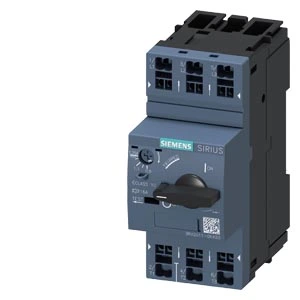

CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 0.9...1.25 A N-RELEASE 16 A SCREW

Circuit breaker size S00

Designed for motor protection, the SIRIUS 3RV2 circuit breaker ensures reliable shutdown in the event of a short-circuit and protects against overload.

Technical details:

• CLASS 10 A-release 0.9...1.25 A
• N-release 16 A
• Screw terminal
• Standard switching capacity
• For IE3/IE4 motors
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Device versions available for motor protection, plant protection, short-circuit protection, transformer protection, main and EMERGENCY OFF switches, IT networks
• Available with screw or spring-type terminals
• Optional integral auxiliary switch
• Comprehensive range of accessories standardized for all sizes
• Different energy infeed options, such as the SIRIUS 3RV29 infeed system
• Replaces the 3RV1 series

Customer benefits:

• Reliable and safe isolation of the system from the network
• Low heat loss for optimized performance
• Fast, maintenance-free, and vibration-proof connection options
• Simple and efficient modular system design
