CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 1.1...1.6 A N-RELEASE 21 A SCREW T
Cod produs: 3RV2011-1AA15
Descriere
Circuit breaker frame size S00
Designed for motor protection, the SIRIUS 3RV2 circuit breaker ensures reliable shutdown during short-circuits and protects against overload.
Technical details:
- Class 10 thermal release 1.1...1.6 A
- Short-circuit release 21 A
- Screw terminal
- Standard switching capacity with transverse auxiliary switch 1 NO+1 NC
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
- Available for motor protection (also with overload relay function)
- Plant protection, short-circuit protection of starter combinations, transformer protection
- Main and EMERGENCY OFF switches
- Use in IT networks
- Screw or spring-type terminals for fast, maintenance-free and vibration-proof connection
- Optional integral auxiliary switch
- Comprehensive range of accessories standardized for all sizes
- Different energy infeed options with associated SIRIUS 3RV29 infeed system
- Replaces the well-proven 3RV1 series
Customer benefits:
- Optimized for use in load feeders and IE3/IE4 motors
- Low heat loss
- Simple and efficient SIRIUS modular system
Disclaimer: Generated by AI.
Documente
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 0.3 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 0.55 |
| Rated operating voltage | 690 |
| Overload release current setting | 1.1 |
| Power loss | 7.25 |
| Rated permanent current Iu | 1.6 |
| Adjustment range undelayed short-circuit release | 21 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |

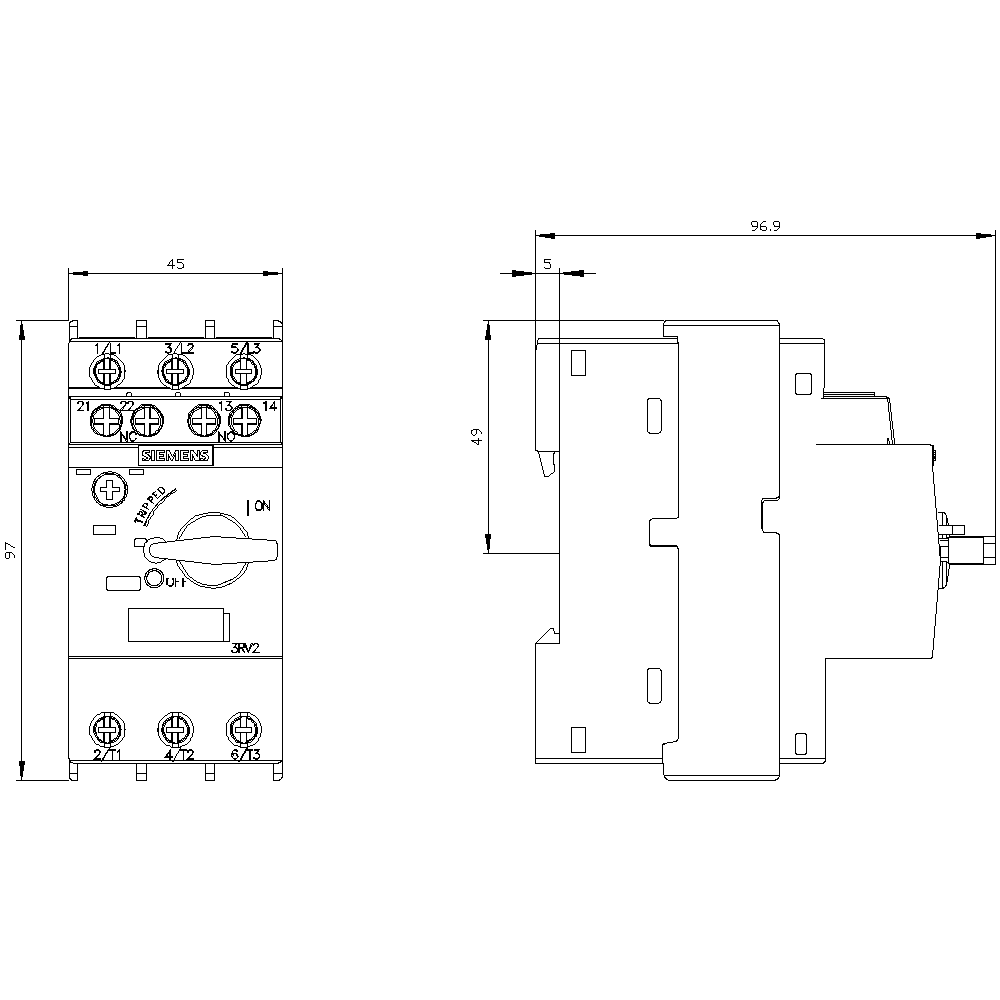

| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 97 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | Yes |
| Package 1 | |
| weight | 0,362 |
| length | 0,102 |
| width | 0,049 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209841109 |
| Dimensions of product | |
| Weight | 0,362 |
