CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 1.4...2 A N-RELEASE 26 A SPRING-TY
Cod produs: 3RV2011-1BA20
Descriere

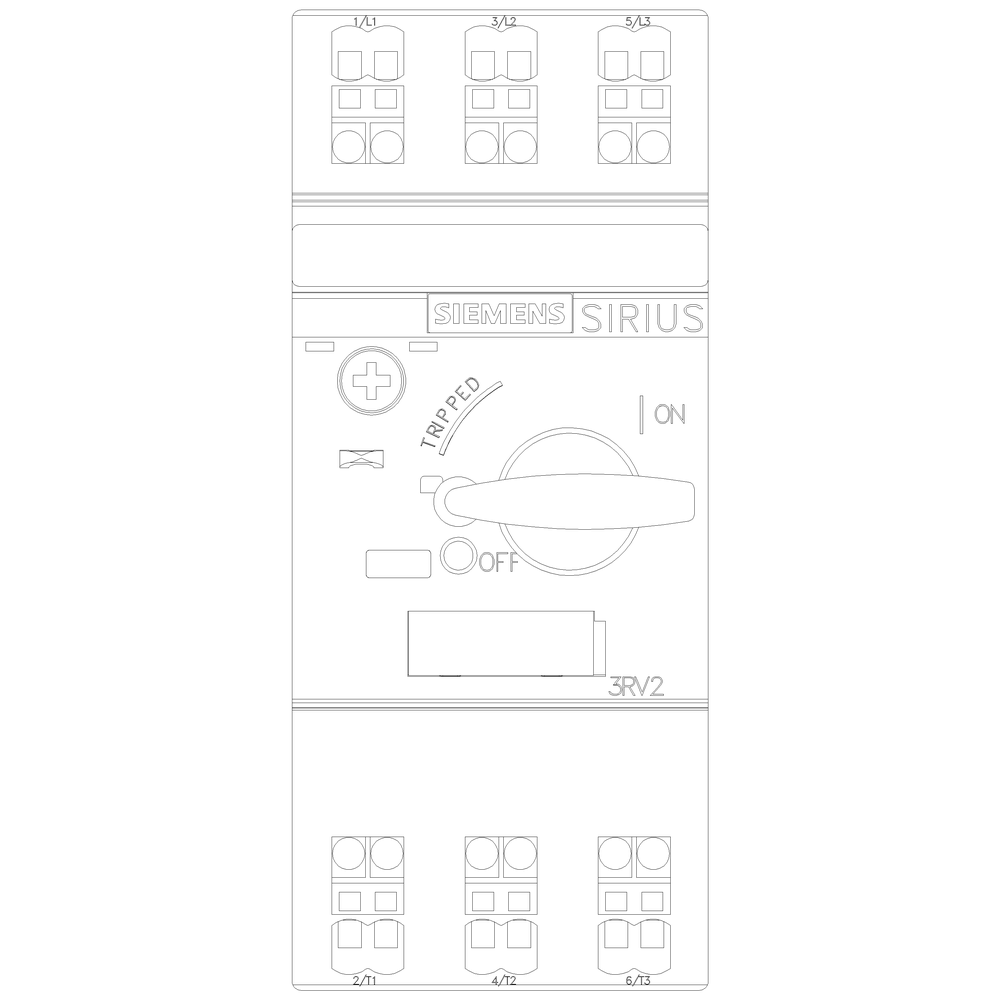

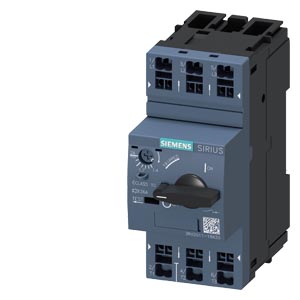

Sirius 3RV2 Circuit Breaker Size S00
The SIRIUS 3RV2 Circuit Breaker Size S00 is designed for motor protection, offering reliable shutdown in the event of a short circuit and safeguarding against overload.
Technical details:
- Size: S00
- CLASS: 10
- A-release: 1.4...2 A
- N-release: 26 A
- Standard switching capacity
- Optimized for IE3/IE4 motors
- Worldwide approvals: IEC and UL/CSA
- Applications: Hazardous areas (ATEX or IEC Ex)
- Available device versions for motor protection and overload relay function
- Supporting plant protection, short-circuit protection of starter combinations, transformer protection, main and EMERGENCY OFF switches
- Available with screw or spring-type terminals
- Maintenance-free and vibration-proof connection
- Optional integral auxiliary switch
- Comprehensive range of accessories standardized for all sizes
- Use of different energy infeed options: SIRIUS 3RV29 infeed system
- Replaces 3RV1 series
Customer benefits:
- Reliable shutdown in the event of a short circuit
- Protection against overloads
- Low heat loss
- Compact and climate-proof design
- Fast connection with maintenance-free terminals
- Simple and efficient modular system
Disclaimer: Generated by AI.
Documente
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 0.4 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 0.75 |
| Rated operating voltage | 690 |
| Overload release current setting | 1.4 |
| Power loss | 7.25 |
| Rated permanent current Iu | 2 |
| Adjustment range undelayed short-circuit release | 26 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |
| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 106 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | No |
| Package 1 | |
| weight | 0,369 |
| length | 0,12 |
| width | 0,0525 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209724549 |
| Dimensions of product | |
| Weight | 0,369 |
