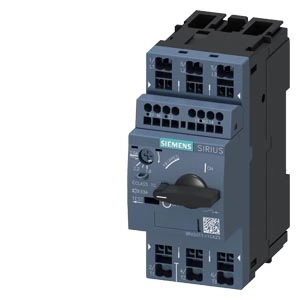

CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 1.8...2.5 A N-RELEASE 33 A SCREW T
Cod produs: 3RV2011-1CA15
Descriere
Circuit breaker frame size S00
Designed for motor protection, this device reliably shuts down during short-circuits and safeguards systems against overload.
Technical details:
- Class 10 thermal release 1.8...2.5 A
- Short-circuit release 33 A
- Screw terminal
- Standard switching capacity with transverse auxiliary switch 1 NO+1 NC
- Product model: SIRIUS 3RV2
- Optimized for use in load feeders and IE3/IE4 motors
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
- Device versions available for motor protection, plant protection, short-circuit protection of starter combinations, transformer protection, main and EMERGENCY OFF switches, and use in IT networks
- Available with screw or spring-type terminals
- Comprehensive range of accessories standardized for all sizes
- Use of different energy infeed options reduces main circuit wiring
- Replaces the well-proven 3RV1 series
Customer benefits:
- Reliable shutdown in the event of a short-circuit
- Protects loads and systems against overload
- Safe isolation of the system from the network
- Low heat loss with compact and climate-proof design
- Fast, maintenance-free, and vibration-proof connection options
- Simple, efficient, and always up to date with the SIRIUS modular system
Disclaimer: Generated by AI.
Documente
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 0.4 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 0.75 |
| Rated operating voltage | 690 |
| Overload release current setting | 1.8 |
| Power loss | 7.25 |
| Rated permanent current Iu | 2.5 |
| Adjustment range undelayed short-circuit release | 33 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |

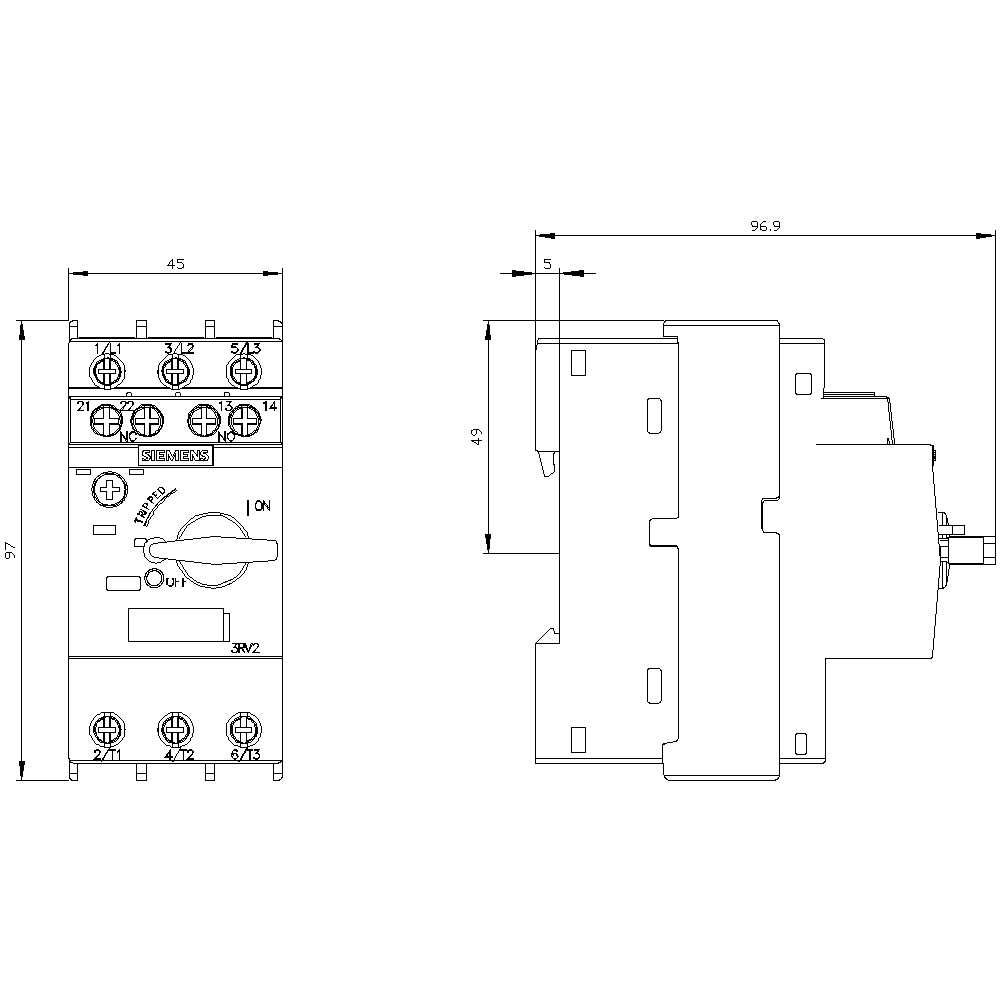

| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 97 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | Yes |
| Package 1 | |
| weight | 0,361 |
| length | 0,102 |
| width | 0,049 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209841147 |
| Dimensions of product | |
| Weight | 0,361 |
