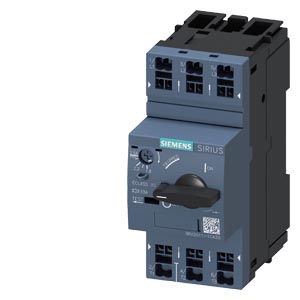

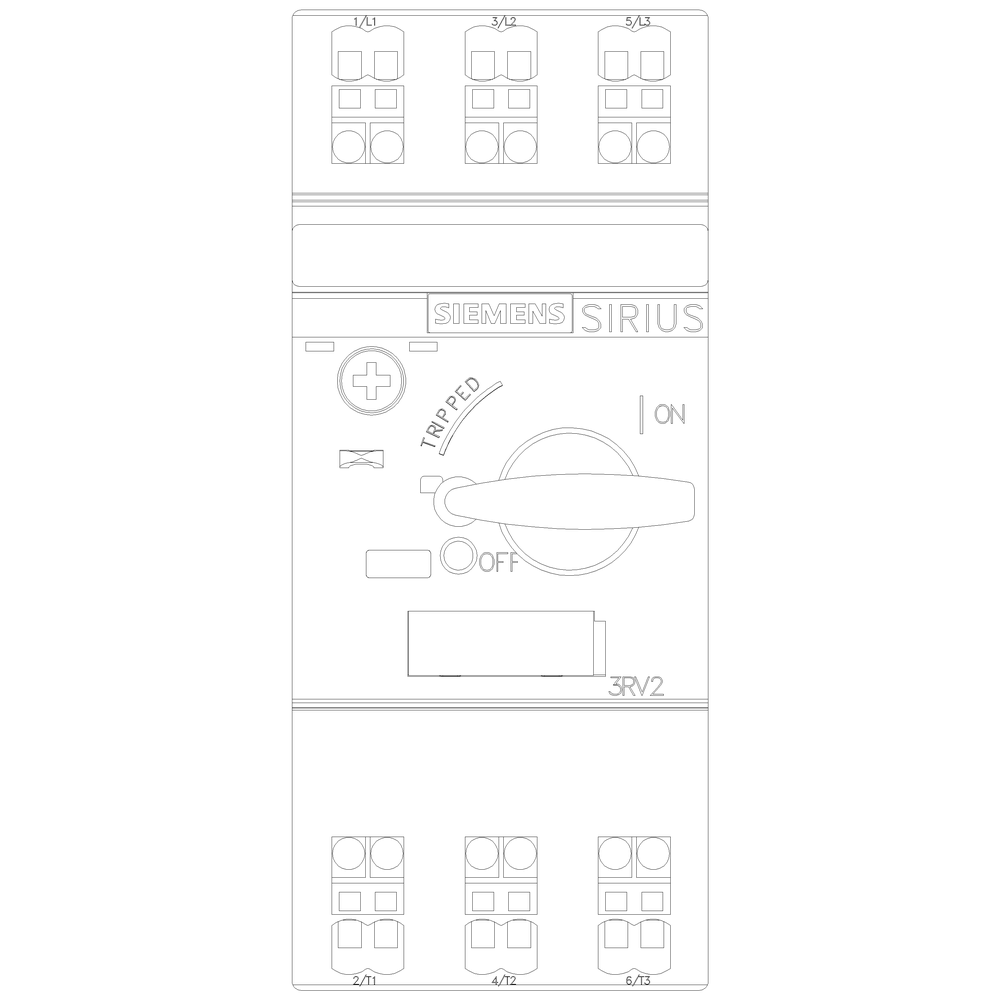

CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 1.8...2.5 A N-RELEASE 33 A SPRING-
Cod produs: 3RV2011-1CA20
Alte coduri:
upc: 195125291492
Descriere
Circuit breaker size S00
Circuit breaker size S00 for motor protection provides reliable shutdown in the event of a short-circuit and protects the loads and system against overload.
Technical details:
- CLASS 10 A-release 1.8...2.5 A N-release 33 A
- Spring-type terminal
- Standard switching capacity
- Circuit breaker SIRIUS 3RV2
- Suitable for IE3/IE4 motors
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
- Device versions for motor protection, plant protection, short-circuit protection, transformer protection, main and EMERGENCY OFF switches, and use in IT networks
- Available with screw or spring-type terminals
- Optional integral auxiliary switch
- Comprehensive range of standardized accessories
- Use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system
- Replaces the well-proven 3RV1 series
- SIRIUS modular system
Customer benefits:
- Low heat loss for optimized use in load feeders
- Fast, maintenance-free, and vibration-proof connection
- Simple and efficient design
- Always up to date with modular system solutions
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 0.4 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 0.75 |
| Rated operating voltage | 690 |
| Overload release current setting | 1.8 |
| Power loss | 7.25 |
| Rated permanent current Iu | 2.5 |
| Adjustment range undelayed short-circuit release | 33 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |
| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 106 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | No |
| Package 1 | |
| weight | 0,367 |
| length | 0,12 |
| width | 0,0525 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209724242 |
| Dimensions of product | |
| Weight | 0,367 |
