CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 2.2...3.2 A N RELEASE 42 A SCREW T

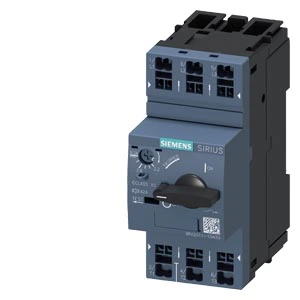

SIRIUS 3RV2 Circuit Breaker

The SIRIUS 3RV2 Circuit Breaker is designed for motor protection, providing reliable shutdown in the event of a short-circuit and protecting loads and systems against overload.

Technical details:

• Circuit breaker size S00
• CLASS 10 A-release 2.2...3.2 A N release 42 A
• Screw terminal
• Standard switching capacity
• Optimized for use in load feeders and IE3/IE4 motors
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Device versions available for motor protection with overload relay function, plant protection, short-circuit protection, and transformer protection
• Main and EMERGENCY OFF switches
• Available with screw or spring-type terminals
• Optional integral auxiliary switch
• Comprehensive range of accessories standardized for all sizes
• Compatible with SIRIUS 3RV29 infeed system
• Replaces the well-proven 3RV1 series

Customer benefits:

• Reliable isolation of the system from the network
• Low heat loss and climate-proof design
• Fast, maintenance-free, and vibration-proof connection options
• Simple, efficient, and always up to date modular system
• Considerably reduces main circuit wiring
