CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 3.5...5 A N RELEASE 65 A SCREW TER
Cod produs: 3RV2011-1FA10
Descriere

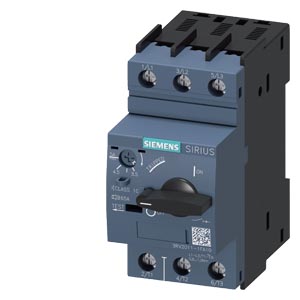

Circuit breaker size S00
Compact and climate-proof circuit breakers optimized for motor protection and reliable shutdown in the event of a short-circuit.
Technical details:
- CLASS 10 A-release 3.5...5 A N release 65 A
- Standard switching capacity
- Circuit breaker SIRIUS 3RV2
- Available with screw or spring-type terminals
- Integral auxiliary switch (optional)
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
- Device versions available for various protection functions
- Standardized range of accessories
- 3RV2 circuit breakers replace the well-proven 3RV1 series
Customer benefits:
- Reliable shutdown in the event of a short-circuit
- Protects loads and systems against overload
- Safe isolation of the system from the network
- Low heat loss
- Optimized for use in load feeders and IE3/IE4 motors
- Fast, maintenance-free and vibration-proof connection
- Considerable reduction in main circuit wiring with SIRIUS 3RV29 infeed system
- Simple, efficient, and always up to date with the SIRIUS modular system
Disclaimer: Generated by AI.
Documente
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 1.1 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 1.5 |
| Rated operating voltage | 690 |
| Overload release current setting | 3.5 |
| Power loss | 7.25 |
| Rated permanent current Iu | 5 |
| Adjustment range undelayed short-circuit release | 65 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |
| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 97 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | No |
| Package 1 | |
| weight | 0,35 |
| length | 0,102 |
| width | 0,049 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209712461 |
| Package 2 | |
| volume | 0,026 |
| weight | 10,204 |
| length | 0,44 |
| width | 0,325 |
| qmax | 28 |
| qmin | 28 |
| um | CT |
| gtin | 4011209712461 |
| Dimensions of product | |
| Weight | 0,35 |
