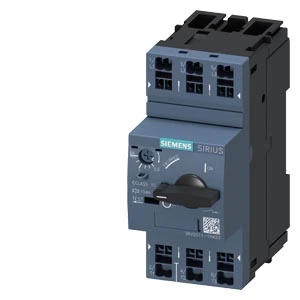

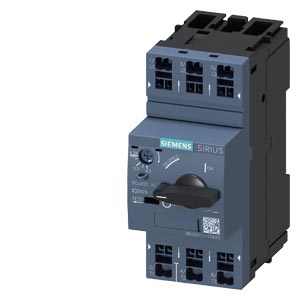

CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 4.5...6.3 A N-RELEASE 82 A SPRING-
Cod produs: 3RV2011-1GA20
Alte coduri:
upc: 662643924046
Descriere
Circuit breaker size S00
Designed for motor protection, the Circuit breaker size S00 ensures reliable shutdown in the event of a short-circuit and overload protection.
Technical details:
- CLASS 10 A-release 4.5...6.3 A
- N-release 82 A
- Standard switching capacity
- Model: SIRIUS 3RV2
- Optimized for use in load feeders and IE3/IE4 motors
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
- Device versions for motor protection, plant protection, short-circuit protection, and transformer protection
- Available with screw or spring-type terminals
- Optional integral auxiliary switch
- Standardized range of accessories (auxiliary switches, auxiliary releases, signaling switches)
- Compatible with SIRIUS 3RV29 infeed system
- Replaces 3RV1 series
Customer benefits:
- Reliable protection against overload and short-circuit
- Compact and climate-proof design with low heat loss
- Fast, maintenance-free and vibration-proof connection
- Comprehensive accessories standard for all sizes
- Simple and efficient modular system
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 1.5 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 2.2 |
| Rated operating voltage | 690 |
| Overload release current setting | 4.5 |
| Power loss | 7.25 |
| Rated permanent current Iu | 6.3 |
| Adjustment range undelayed short-circuit release | 82 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |
| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 106 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | No |
| Package 1 | |
| weight | 0,373 |
| length | 0,12 |
| width | 0,0525 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209724327 |
| Dimensions of product | |
| Weight | 0,373 |
