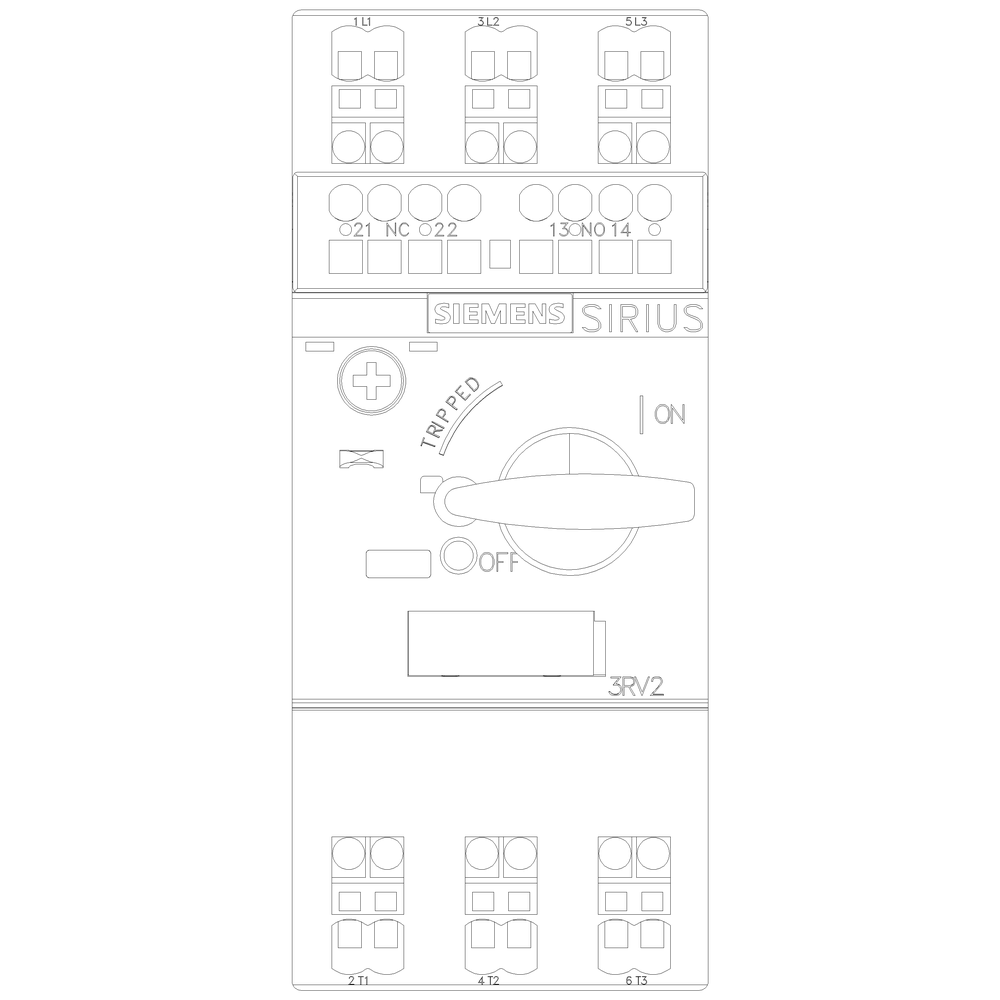

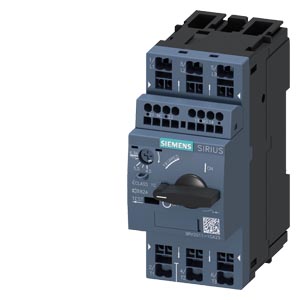

CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 4.5...6.3 A N-RELEASE 82 A SPRING-
Cod produs: 3RV2011-1GA25
Alte coduri:
upc: 662643924053
Descriere
Circuit breaker frame size S00
Circuit breaker frame size S00 offers reliable motor protection with various features for overload and short-circuit protection.
Technical details:
- Class 10 thermal release 4.5...6.3 A
- Short-circuit release 82 A
- Spring-loaded terminal

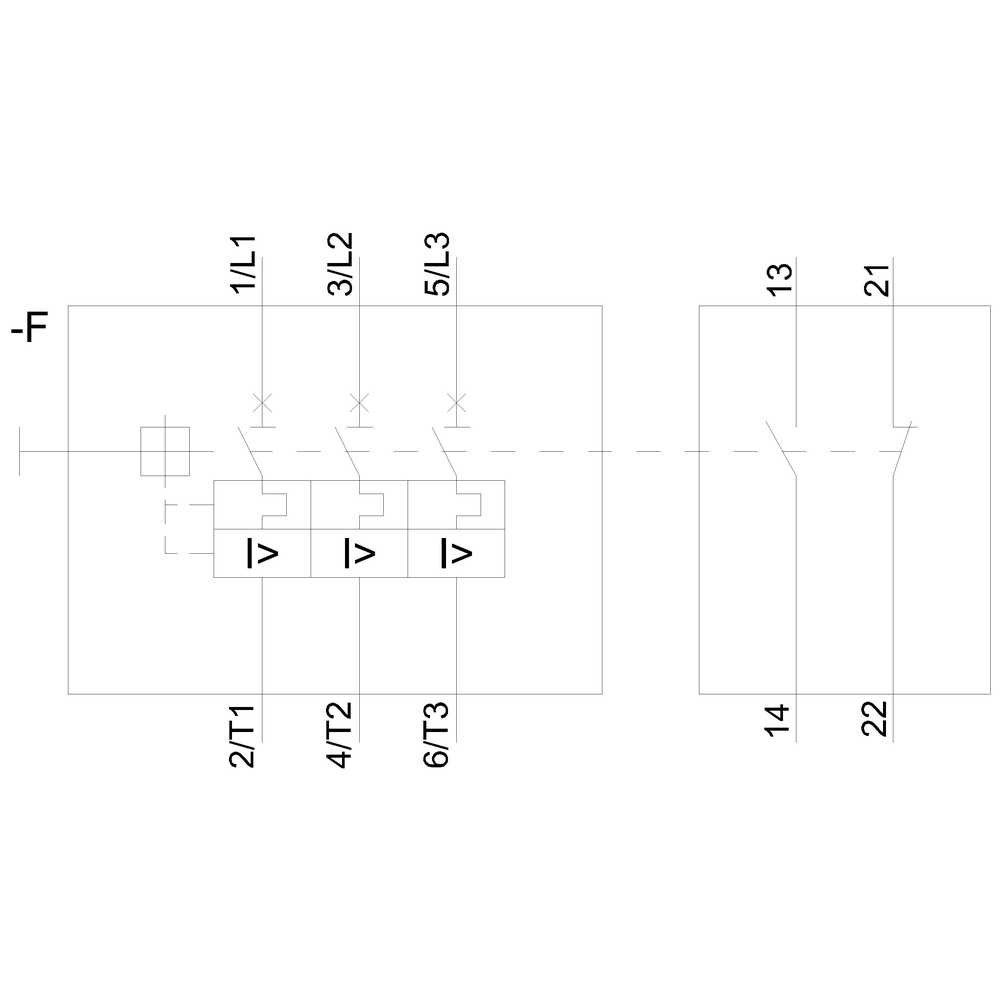

- Standard switching capacity with transverse auxiliary switch 1 NO+1 NC
- Circuit breaker SIRIUS 3RV2
- Available with screw or spring-type terminals
- Optional integral auxiliary switch
- Comprehensive range of accessories standardized for all sizes
- Device versions available for various protection and switch functions
- Compatible with IE3/IE4 motors
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
Customer benefits:
- Reliable shutdown in the event of a short-circuit
- Protection against overload for loads and systems
- Safe isolation of the system from the network
- Low heat loss and optimized for load feeders
- Fast, maintenance-free and vibration-proof connection
- Reduced main circuit wiring with different energy infeed options
- Simple, efficient, and modular system
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 1.5 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 2.2 |
| Rated operating voltage | 690 |
| Overload release current setting | 4.5 |
| Power loss | 7.25 |
| Rated permanent current Iu | 6.3 |
| Adjustment range undelayed short-circuit release | 82 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |

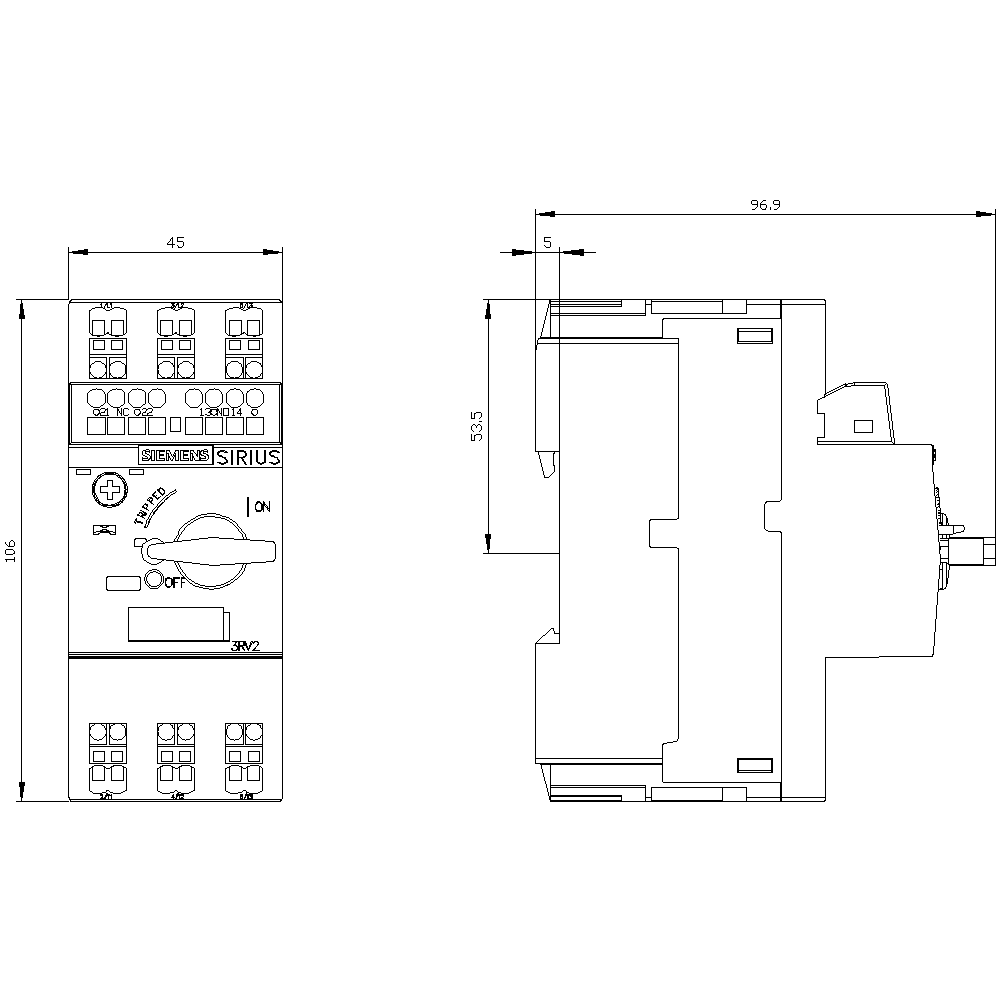

| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 106 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | Yes |
| Package 1 | |
| weight | 0,388 |
| length | 0,12 |
| width | 0,0525 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209841017 |
| Dimensions of product | |
| Weight | 0,388 |
