CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 7...10 A N RELEASE 130 A SCREW TER
Cod produs: 3RV2011-1JA15
Descriere
Circuit breaker frame size S00
The circuit breaker frame size S00 is designed for motor protection, ensuring reliable shutdown during short-circuits and overloads.
Technical details:
- Class 10 thermal release 7...10 A
- Short-circuit release 130 A
- Screw terminal

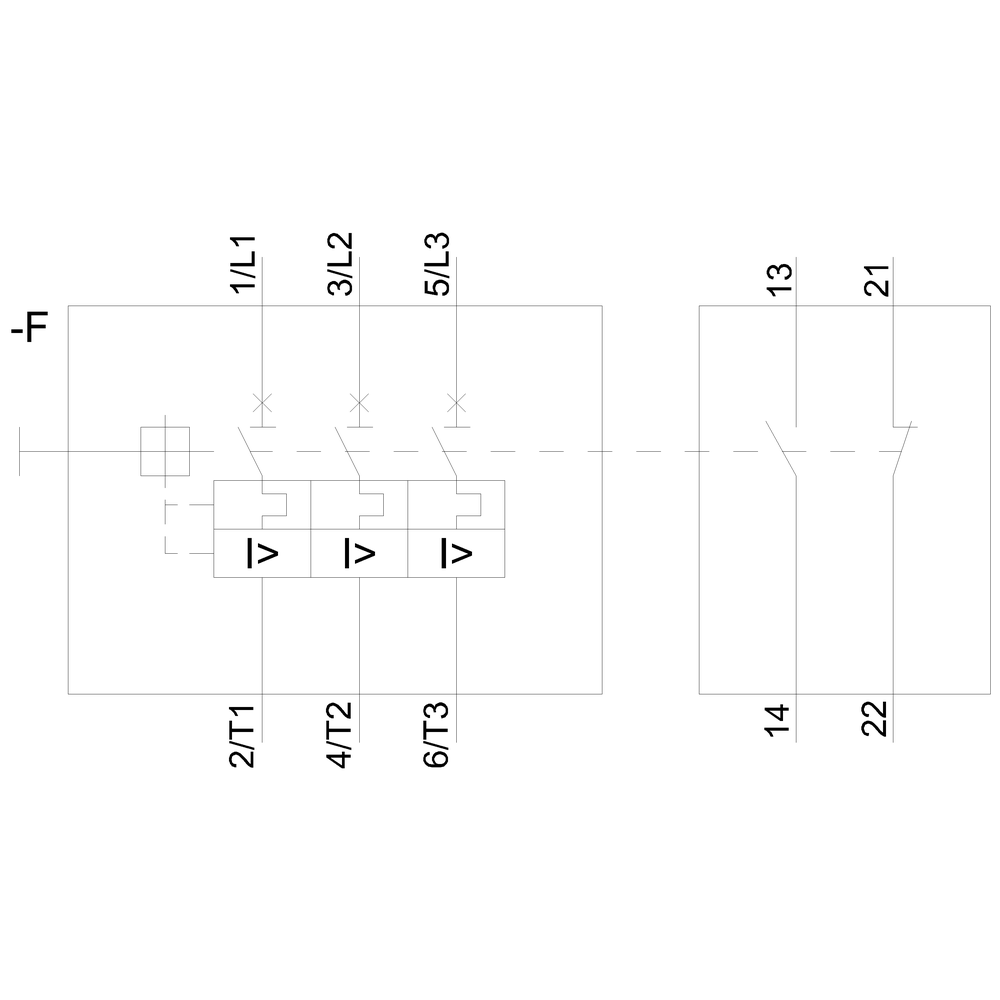

- Standard switching capacity with transverse auxiliary switch 1 NO+1 NC
- Model: SIRIUS 3RV2
- Optimized for use in load feeders and with IE3/IE4 motors
- Worldwide approvals (e.g. IEC and UL/CSA)
- Applications in hazardous areas (ATEX or IEC Ex)
- Versions available for motor protection, plant protection, short-circuit protection, and more
- Available with screw or spring-type terminals
- Optional integral auxiliary switch
- Comprehensive range of standardized accessories
- Use of SIRIUS 3RV29 infeed system for reduced main circuit wiring
- Replaces the well-proven 3RV1 series
Customer benefits:
- Reliable shutdown in the event of a short-circuit
- Protection of loads and systems against overload
- Safe isolation of the system from the network
- Low heat loss and climate-proof design
- Fast, maintenance-free, and vibration-proof connection
- Simple and efficient modular system
Disclaimer: Generated by AI.
Documente
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 2.2 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 4 |
| Rated operating voltage | 690 |
| Overload release current setting | 7 |
| Power loss | 9.25 |
| Rated permanent current Iu | 10 |
| Adjustment range undelayed short-circuit release | 130 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |

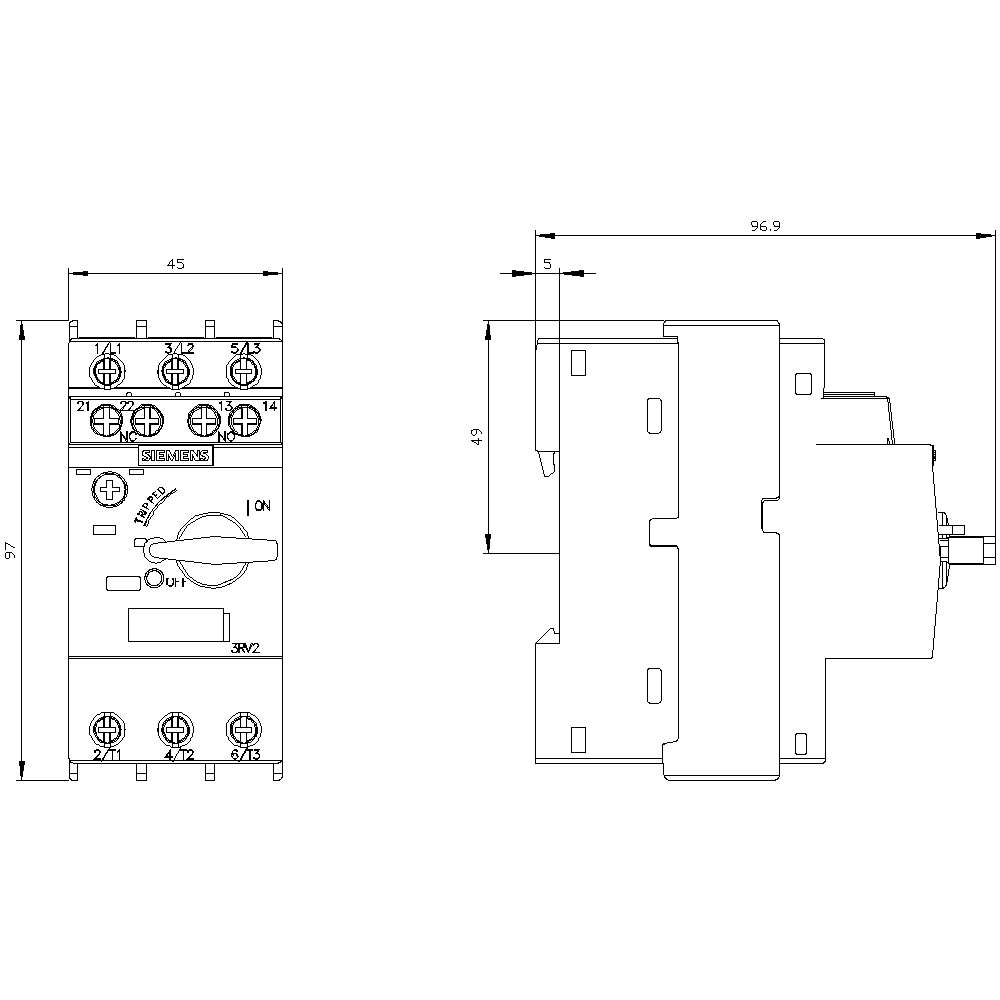

| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 97 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Screw connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | Yes |
| Package 1 | |
| weight | 0,366 |
| length | 0,102 |
| width | 0,049 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209841185 |
| Dimensions of product | |
| Weight | 0,366 |
