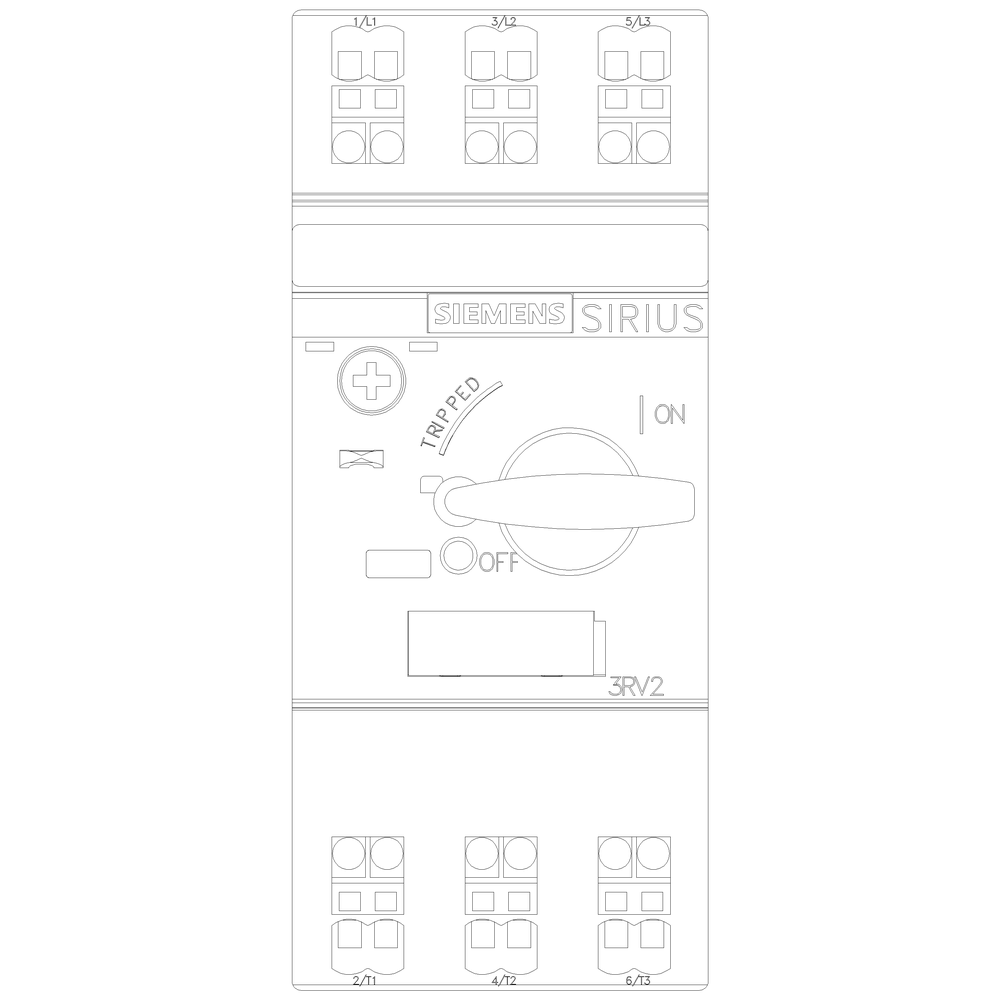

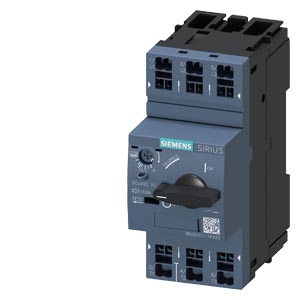

CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 9...12 A N-RELEASE 163 A SPRING-TY
Cod produs: 3RV2011-1KA20
Alte coduri:
upc: 662643924190
Descriere
Circuit breaker size S00
Designed for motor protection with reliable shutdown capabilities in the event of a short circuit and protection against overload.
Technical details:
- CLASS 10 A-release 9...12 A N-release 163 A
- Spring-type terminal
- Standard switching capacity
- Device versions available for motor protection, plant protection, short-circuit protection, transformer protection, main and EMERGENCY OFF switches, and IT networks
- Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex)
- Available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection
- Options include integral auxiliary switch and a comprehensive range of standardized accessories
- 3RV2 circuit breakers replace the 3RV1 series
Customer benefits:
- Optimized for use in load feeders and with IE3/IE4 motors
- Low heat loss for enhanced efficiency
- Simple and efficient modular system, always up to date
- Reduction in main circuit wiring with SIRIUS 3RV29 infeed system
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| With integrated under voltage release | No |
| Number of poles | 3 |
| Rated operation power at AC-3, 230 V | 3 |
| Rated short-circuit breaking capacity Icu at 400 V, AC | 100 |
| Rated operation power at AC-3, 400 V | 5.5 |
| Rated operating voltage | 690 |
| Overload release current setting | 9 |
| Power loss | 9.25 |
| Rated permanent current Iu | 12.5 |
| Adjustment range undelayed short-circuit release | 163 |
| Other | |
| Switch off technique | Magnetic |
| Device construction | Built-in device fixed built-in technique |
| Measurements | |
| Width | 45 |
| Depth | 97 |
| Height | 106 |
| Protection | |
| Degree of protection (IP) | IP20 |
| Connection | |
| Type of electrical connection of main circuit | Spring clamp connection |
| Options | |
| Phase failure sensitive | Yes |
| Model/type | |
| Type of control element | Other |
| With thermal overload protection | Yes |
| With integrated auxiliary switch | No |
| Package 1 | |
| weight | 0,371 |
| length | 0,12 |
| width | 0,0525 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209724389 |
| Dimensions of product | |
| Weight | 0,371 |
Accesorii
LINK MODULE ELECTRICAL AND MECHANICAL FOR 3RV2011 AND 3RT201. SPRING-TYPE TERMINAL
Cod: 3RA2911-2AA00
Siemens
LABELING PLATES 20X7 MM TI - GRAY BOX CONTAINS 17 MATS ON MATS 20 LABELS PER MAT
Cod: 3RT2900-1SB20
Siemens
ADHESIVE LABELS 19X6 MM TITANIUM GRAY COMPRISES 10 SHEETS DIN A4 306 LABELS EACH = 3060 UNITS
Cod: 3RT2900-1SB60
Siemens
AUXILIARY SWITCH CAN BE MOUNTED ON THE SIDE 2 NO SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-2B
Siemens
AUXILIARY SWITCH CAN BE MOUNTED ON THE SIDE 2 NC SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-2C
Siemens
AUXILIARY SWITCH TRANSVERSE 1 NO+1 NC SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-2E
Siemens
AUXILIARY SWITCH TRANSVERSE 2 NO SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-2F
Siemens
UNDERVOLTAGE RELEASE 230 V AC/50 HZ, 240 V AC/60 HZ WITH SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3R
Cod: 3RV2902-2AP0
Siemens
UNDERVOLTAGE RELEASE 400 V AC/50 HZ, 440 V AC/60 HZ WITH SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3R
Cod: 3RV2902-2AV0
Siemens
SHUNT RELEASE 20...24 V AC, 50/60 HZ, 100% ON PERIOD 20-70 V AC, 50/60 HZ, 5 S ON PERIOD 20-70 V DC,
Cod: 3RV2902-2DB0
Siemens
SHUNT RELEASE 90-110 V AC, 50/60 HZ, 100% ON PERIOD 70-190 V AC, 50/60 HZ, 5 S ON PERIOD 70-190 V AC
Cod: 3RV2902-2DF0
Siemens
LINK MODULE ELECTRICAL AND MECHANICAL FOR 3RV2011 AND 3RT201. SPRING-TYPE TERMINAL
Cod: 3RA2911-2AA00
Siemens
LABELING PLATES 20X7 MM TI - GRAY BOX CONTAINS 17 MATS ON MATS 20 LABELS PER MAT
Cod: 3RT2900-1SB20
Siemens
ADHESIVE LABELS 19X6 MM TITANIUM GRAY COMPRISES 10 SHEETS DIN A4 306 LABELS EACH = 3060 UNITS
Cod: 3RT2900-1SB60
Siemens
AUXILIARY SWITCH CAN BE MOUNTED ON THE SIDE 2 NO SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-2B
Siemens
AUXILIARY SWITCH CAN BE MOUNTED ON THE SIDE 2 NC SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-2C
Siemens
AUXILIARY SWITCH TRANSVERSE 1 NO+1 NC SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-2E
Siemens
AUXILIARY SWITCH TRANSVERSE 2 NO SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3RV2
Cod: 3RV2901-2F
Siemens
UNDERVOLTAGE RELEASE 230 V AC/50 HZ, 240 V AC/60 HZ WITH SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3R
Cod: 3RV2902-2AP0
Siemens
UNDERVOLTAGE RELEASE 400 V AC/50 HZ, 440 V AC/60 HZ WITH SPRING-TYPE TERMINAL FOR CIRCUIT BREAKER 3R
Cod: 3RV2902-2AV0
Siemens
SHUNT RELEASE 20...24 V AC, 50/60 HZ, 100% ON PERIOD 20-70 V AC, 50/60 HZ, 5 S ON PERIOD 20-70 V DC,
Cod: 3RV2902-2DB0
Siemens
SHUNT RELEASE 90-110 V AC, 50/60 HZ, 100% ON PERIOD 70-190 V AC, 50/60 HZ, 5 S ON PERIOD 70-190 V AC
Cod: 3RV2902-2DF0
Siemens
Produse similare
CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 9...12 A N-RELEASE 163 A SCREW TER
Cod: 3RV2011-1KA10
Siemens

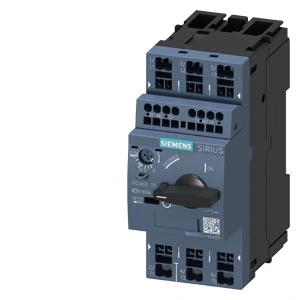

CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 9...12 A N-RELEASE 163 A SPRING-TY
Cod: 3RV2011-1KA25
Siemens
CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 10...16 A N-RELEASE 208 A SPRING-T
Cod: 3RV2011-4AA20
Siemens

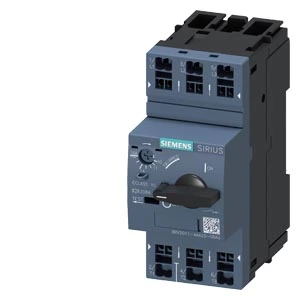

SPECIAL TYPE CIRCUIT BREAKER SIZE S00 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 10...16 A N-RELEASE 2
