CIRCUIT BREAKER SIZE S2 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 35...45 A N-RELEASE 650 A SCREW TER

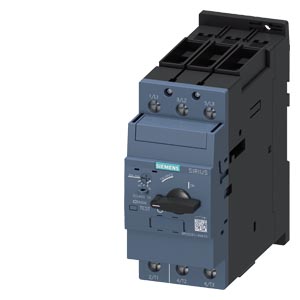

Circuit breaker size S2

Circuit breaker size S2 is designed for motor protection, ensuring reliable shutdown in the event of a short-circuit and overload protection for loads and systems.

Technical details:

• CLASS 10 A-release 35...45 A
• N-release 650 A
• Screw terminal
• Standard switching capacity
• Circuit breaker SIRIUS 3RV2
• Optimized for IE3/IE4 motors
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Device versions available for motor protection, plant protection, short-circuit protection, transformer protection, main and EMERGENCY OFF switches
• Options for screw or spring-type terminals
• Integral auxiliary switch available
• Comprehensive range of standardized accessories
• Compatible with SIRIUS 3RV29 infeed system
• Replaces 3RV1 series

Customer benefits:

• Reliable shutdown in case of short-circuit
• Protection against overload
• Safe isolation from the network
• Low heat loss
• Compact and climate-proof design
• Fast, maintenance-free, and vibration-proof connection
• Simple and efficient modular system
