CIRCUIT BREAKER SIZE S2 FOR MOTOR PROTECTION, CLASS 10 A-RELEASE 54...65 A N-RELEASE 845 A SCREW TER

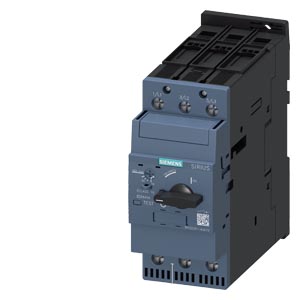

Circuit breaker size S2 for motor protection

The SIRIUS 3RV2 circuit breaker is designed for motor protection, ensuring reliable shutdown during short-circuits and protecting systems against overload.

Technical details:

• CLASS 10 A-release 54...65 A
• N-release 845 A
• Screw terminal
• Standard switching capacity
• Worldwide approvals (e.g. IEC and UL/CSA)
• Applications in hazardous areas (ATEX or IEC Ex)
• Available for motor protection (also with overload relay function)
• Plant protection and short-circuit protection of starter combinations
• Transformer protection
• Main and EMERGENCY OFF switches
• Use in IT networks
• Screw or spring-type terminals for fast, maintenance-free and vibration-proof connection
• Optional integral auxiliary switch
• Standardized range of accessories (auxiliary switches, auxiliary releases, signaling switches etc.)
• Associated SIRIUS 3RV29 infeed system
• Replaces the 3RV1 series

Customer benefits:

• Reliable shutdown in the event of a short-circuit
• Protection against overload
• Safe isolation of the system from the network
• Optimized for use in load feeders and IE3/IE4 motors
• Low heat loss and climate-proof design
• Simple, efficient, and always up to date with SIRIUS modular system
