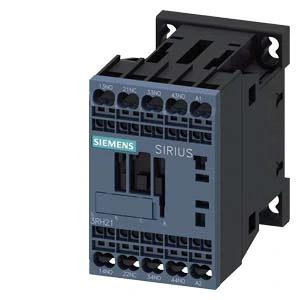

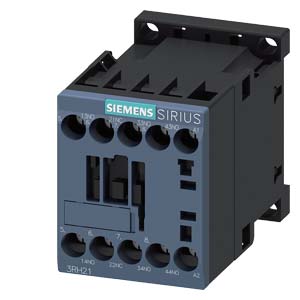

CONTACTOR RELAY, 3 NO + 1 NC, 230 V AC, 50 / 60 HZ, SIZE S00, SCREW TERMINAL
Cod produs: 3RH2131-1AP00
Alte coduri:
upc: 662643906257
Descriere
Contactor relay
The SIRIUS 3RH2 contactor relay is designed for switching control signals in the control circuit.
Technical details:

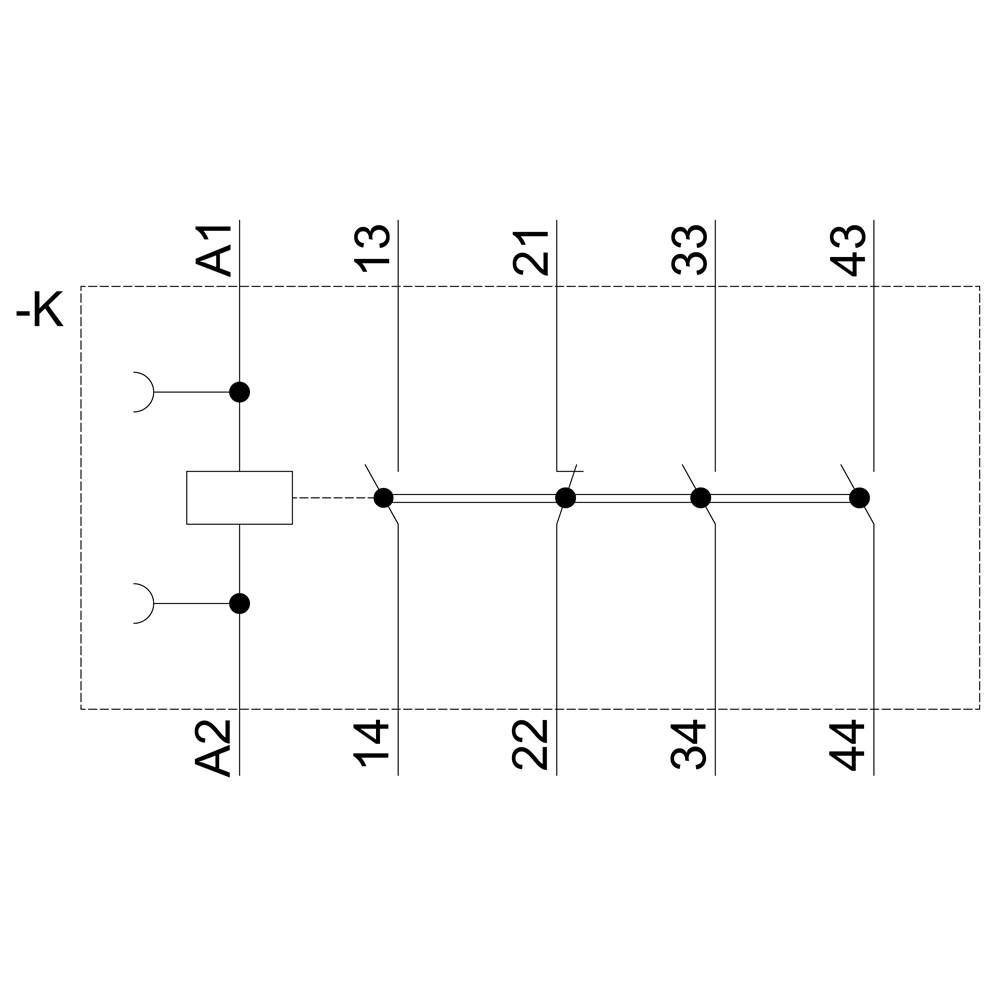

- 3 NO + 1 NC
- 230 V AC
- 50/60 Hz
- Screw terminal
- Frame size S00
- Auxiliary contactor SIRIUS 3RH2
- 4-pole design, extendable up to 8 poles
Customer benefits:

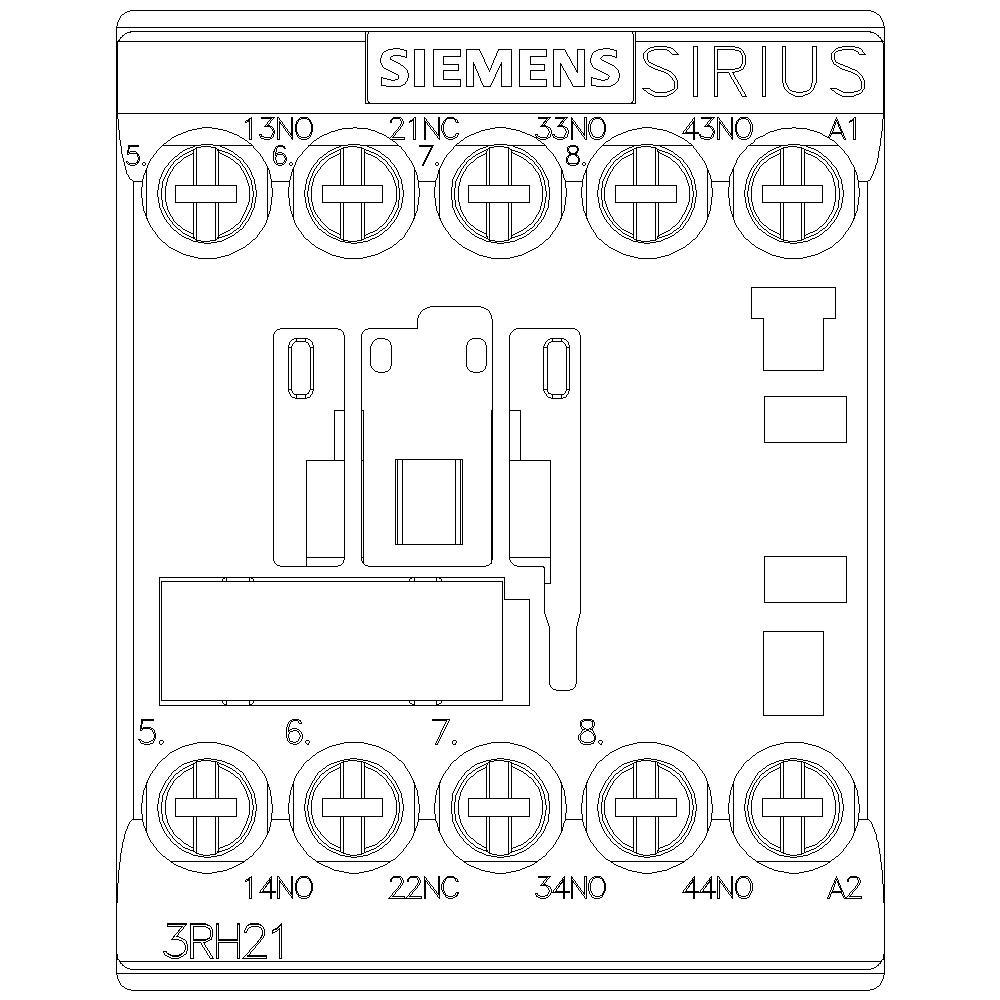

- Standard-compliant terminal designations
- Reliable and time-saving connection technology
- Simultaneous switching of several auxiliary circuits
- Suitable for safety applications with positively driven operation
- Climate-resistant with high contact reliability
- Available worldwide with corresponding approvals (e.g. IEC and UL/CSA)
- AC or DC operation options
- Compatibility with extensive range of accessories for 3RT2 contactors
- Replaces 3RH1 series
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Rated control supply voltage AC 50 Hz | 230 |
| Rated control supply voltage AC 60 Hz | 230 |
| Rated switch current | - |
| Voltage type for actuating | AC |
| Voltage type (operating voltage) | - |
| Operating voltage AC 60 Hz | - |
| Operating voltage AC 50 Hz | - |
| Rated operation current | - |
| Rated control supply voltage DC | - |
| Rated operation current Ie, 400 V | 3 |
| Operating voltage DC | - |
| Measurements | |
| Depth | 73 |
| Height | 57.5 |
| Width | 45 |
| Mounting/installation | |
| Mounting method | Screw |
| Application | |
| Suitable for manual operation | No |
| Connection | |
| Interface | No |
| Number of auxiliary contacts as normally closed contact, delayed switching | - |
| Number of auxiliary contacts as normally open contact, leading | - |
| Connection type auxiliary circuit | Screw connection |
| Number of auxiliary contacts as change-over contact | - |
| Number of auxiliary contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Model/type | |
| With LED indication | No |
| Package 1 | |
| weight | 0,232 |
| length | 0,0615 |
| width | 0,05 |
| qmax | 1 |
| qmin | 1 |
| um | PA |
| gtin | 4011209847484 |
| Package 2 | |
| volume | 0,026 |
| weight | 15,372 |
| length | 0,44 |
| width | 0,325 |
| qmax | 64 |
| qmin | 64 |
| um | CT |
| gtin | 4011209847484 |
| Dimensions of product | |
| Weight | 0,232 |
Accesorii
SOLID-STATE TIME-DELAYED AUXILIARY SWITCH ON DELAY RELAY 1 CHANGEOVER CONTACT 24...240 V AC/DC TIME
Cod: 3RA2813-1AW10
Siemens
SOLID-STATE TIME-DELAYED AUXILIARY SWITCH ON DELAY RELAY 1 NC + 1 NO 24...240 V AC/DC TIME RANGE 0.0
Cod: 3RA2813-1FW10
Siemens

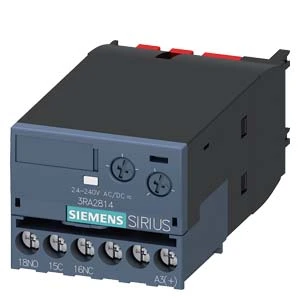

SOLID-STATE TIME-DELAYED AUXILIARY SWITCH OFF DELAY WITH CONTROL SIGNAL RELAY 1 CHANGEOVER CONTACT 2
