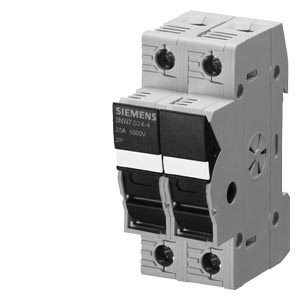

CYLINDRICAL FUSE HOLDER, 10 X 38 MM, 2-POLE, IN: 25 A, UE DC: 1000V, LED SIGNAL DETECTOR, FOR PHOTOV
Cod produs: 3NW7024-4
Descriere
SENTRON, cylindrical fuse holder, 10 x 38 mm, 2-pole, In: 25 A, Ue DC: 1000 V, LED Signal detector, for photovoltaic application Cylindrical fuse holder SENTRON 3NW7 for stringent requirements in photovoltaic applications. Photovoltaic fuses are especially designed for protecting PV modules and ensure a high level of plant availability over the entire life of the PV system. The fuses have a high DC rated voltage and withstand the greatest temperature fluctuations without damage. They ensure safe tripping in case of residual currents and therefore reduction of the risk of fire due to DC electric arcs. They have a long service life despite frequent and very variable load currents. SENTRON circuit protection devices - A safe choice.
Documente
Specificatii
| Model/type | |
| With optical defect indication | Yes |
| Electrical | |
| Number of poles | 2 |
| Nominal voltage | 1000 |
| Measurements | |
| For fuse size | 10x38 mm |
| Width in number of modular spacings | 2 |
| Built-in depth | 65 |
| Options | |
| Lockable | No |
| Concurrently switching neutral conductor | No |
| Protection | |
| Degree of protection (IP) | IP20 |
| Mounting/installation | |
| Mounting method | DIN rail |
| Package 1 | |
| weight | 0,103 |
| length | 0,215 |
| width | 0,092 |
| qmax | 6 |
| qmin | 6 |
| um | PA |
| gtin | 4001869415994 |
| Dimensions of product | |
| Weight | 0,103 |
