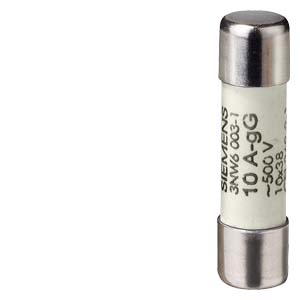

CYLINDRICAL FUSE LINK, 10 X 38 MM, 10 A, GG, UN AC: 500 V
Cod produs: 3NW6003-1
Alte coduri:
upc: 754554283937
Descriere
SENTRON
The SENTRON cylindrical fuse link is designed for selective system protection, suitable for semiconductor components.
Technical details:
- Cylindrical fuse link
- Dimensions: 10 x 38 mm
- Rated current: 10 A
- Type: gG
- Un AC: 500 V
- Meets international standards: IEC 60269
- Tested and approved in Europe as fused disconnectors
- Not intended for switching under load
Customer benefits:
- Designed specifically for selective system protection
- Suitable for protecting semiconductor components
- Globally usable due to compliance with international standards
- Provides a safe choice for circuit protection
Disclaimer: Generated by AI.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Breaking capacity | 100 |
| Power loss at rated current | 1 |
| Voltage type | AC |
| Release characteristic | Other |
| Rated voltage | 500 |
| Rated current | 10 |
| Measurements | |
| Size | 10x38 mm |
| Model/type | |
| Model | Other |
| Type of fuse status indicator | - |
| Other | |
| Utilization category according to IEC 60269 | gG |
| Rated operating frequency | 45 |
| Package 1 | |
| weight | 0,008 |
| length | 0,081 |
| width | 0,055 |
| qmax | 10 |
| qmin | 10 |
| um | PA |
| gtin | 4001869061481 |
| Package 2 | |
| volume | 0,026 |
| weight | 24,46 |
| length | 0,44 |
| width | 0,325 |
| qmax | 3000 |
| qmin | 3000 |
| um | CT |
| gtin | 4001869061481 |
| Dimensions of product | |
| Weight | 0,008 |
