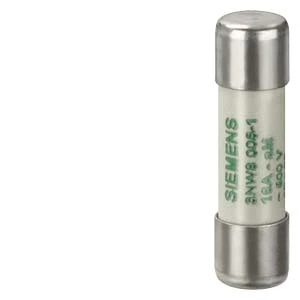

CYLINDRICAL FUSE LINK, 10 X 38 MM, 16 A, AM, UN AC: 500 V

Cod produs: 3NW8005-1

▶

Autentificati-va pentru a vedea pretul.

Producator: Siemens

Set: 1 bucati

4001869062563

Alte coduri: upc: 754554488400

Descriere

SENTRON, cylindrical fuse link, 10 x 38 mm, 16 A, aM, Un AC: 500 V Cylindrical fuse link 3NW8 for the SENTRON cylindrical fuse system for selective system protection. The 3NW cylindrical fuse inserts and holders are designed to protect semiconductor components. They meet international standards such as IEC 60269, which makes them usable worldwide. They are tested and approved in Europe as fused disconnectors, but are not intended for switching under load. SENTRON circuit protection devices - A safe choice.

Documente

Fisa tehnica

Certificat

Link to Certificates

Altele

Link to Sales brochure

Declaratie de conformitate

Alte surse

Specificatii

Electrical
Breaking capacity	120
Power loss at rated current	1
Voltage type	AC
Release characteristic	Other
Rated voltage	500
Rated current	16
Measurements
Size	10x38 mm
Model/type
Model	Other
Type of fuse status indicator	-
Other
Utilization category according to IEC 60269	aM
Rated operating frequency	45
Package 1
weight	0,009
length	0,106
width	0,04
qmax	20
qmin	20
um	PA
gtin	4001869062563
Package 2
volume	0,026
weight	2,06
length	0,44
width	0,325
qmax	200
qmin	200
um	CT
gtin	4001869062563
Dimensions of product
Weight	0,009

Afiseaza mai multe specificatii
