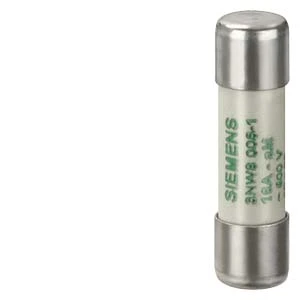

CYLINDRICAL FUSE LINK, 10 X 38 MM, 20 A, AM, UN AC: 400V
Cod produs: 3NW8007-1
Alte coduri:
upc: 754554488394
Descriere
SENTRON, cylindrical fuse link, 10 x 38 mm, 20 A, aM, Un AC: 400 V Cylindrical fuse link 3NW8 for the SENTRON cylindrical fuse system for selective system protection. The 3NW cylindrical fuse inserts and holders are designed to protect semiconductor components. They meet international standards such as IEC 60269, which makes them usable worldwide. They are tested and approved in Europe as fused disconnectors, but are not intended for switching under load. SENTRON circuit protection devices - A safe choice.
Documente
Fisa tehnica
Certificat
Altele
Declaratie de conformitate
Alte surse
Specificatii
| Electrical | |
| Breaking capacity | 120 |
| Power loss at rated current | 1 |
| Voltage type | AC |
| Release characteristic | Other |
| Rated voltage | 400 |
| Rated current | 20 |
| Measurements | |
| Size | 10x38 mm |
| Model/type | |
| Model | Other |
| Type of fuse status indicator | - |
| Other | |
| Utilization category according to IEC 60269 | aM |
| Rated operating frequency | 45 |
| Package 1 | |
| weight | 0,008 |
| length | 0,106 |
| width | 0,04 |
| qmax | 20 |
| qmin | 20 |
| um | PA |
| gtin | 4001869062587 |
| Dimensions of product | |
| Weight | 0,008 |
